- Wireless Video Transmitter/Receiver Set
- Mix up to 4 Receivers, Tablets & Phones
- 1080p60 HDMI Transmission up to 1200'
- USB/UVC Output for Computer Streaming
- iOS/Android App with Zebra & LUT Support
- 2.4 & 5 GHz Dual Band Frequencies
- 1.3" OLED Displays, >60ms Latency
- DC/USB Power, L-Series Battery Support
- Auto Channel Selection, Group Pairing
- Fanless Design, Aluminum Construction

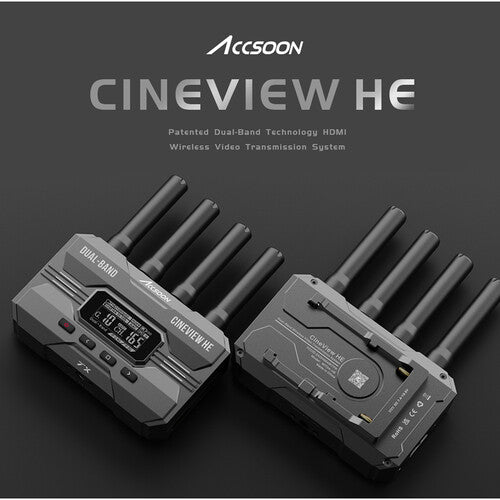

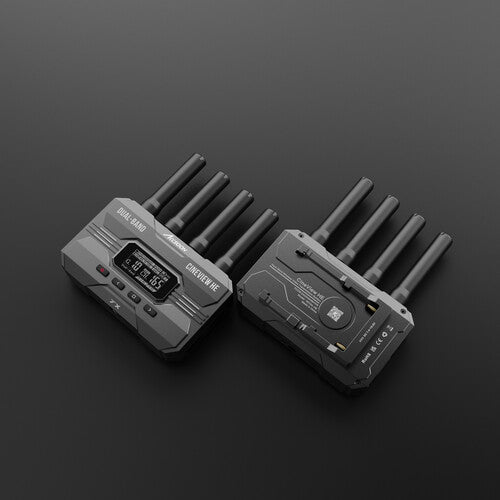

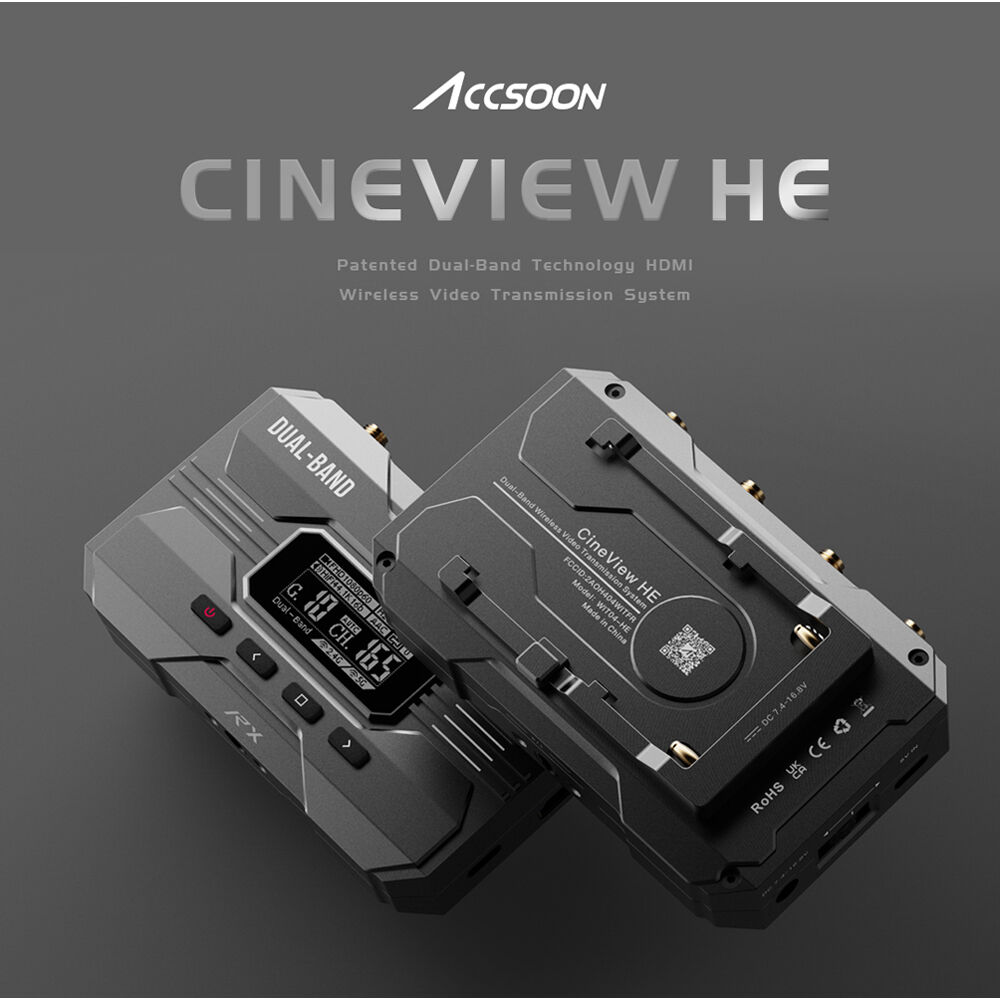

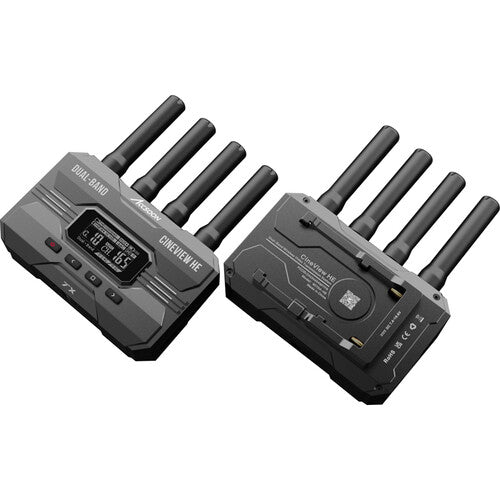

The CineView HE Multi-Spectrum Wireless Video Transmission System from Accsoon allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI camera signal. The transmitter can send signal to a total of four devices simultaneously over distances up to 1200' with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.
The included dedicated receiver is easy to set up and pair, and it features an HDMI output and a USB UVC output to output your signal to a computer for streaming using third-party apps. The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay. The transmitter and receiver feature DC and USB-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
- Dual-Band 2.4 and 5 GHz wireless transmission
- Latency less than 0.06s
- Long-distance transmission range of 1200'
- One transmitter can connect up to four devices such as receivers, smartphones, or tablets
- Wireless remote monitoring via Accsoon Go App
- Automatic channel selection for optimal transmission
- HDMI input and loop output on the transmitter
- HDMI and USB-C/UVC output on receiver for streaming on a computer with third-party apps
- Up to Full HD 1080p video and high-quality audio transmission
- Fanless design for silent operation

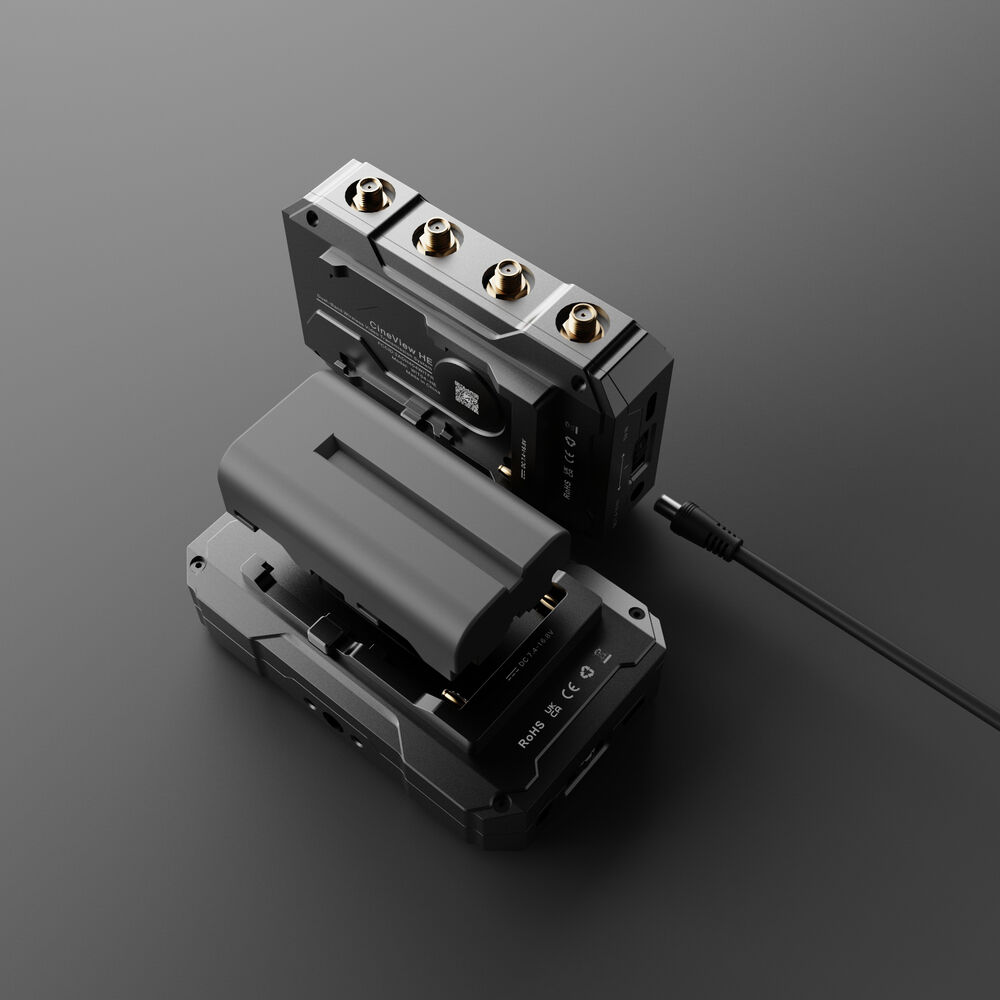

- Power by L-series/NP-F type battery, DC input or USB-C
- Group pairing knob
- Bright 1.3" OLED screen
- Compact, lightweight design with durable aluminum construction
Specifications:
Antenna I/O |

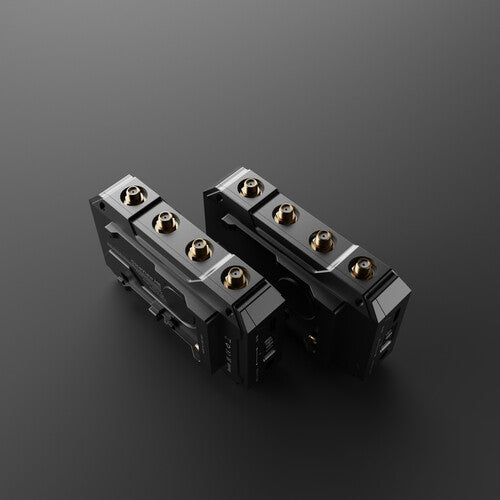

Transmitter/Receiver: 4 x RP-SMA |
Video I/O |

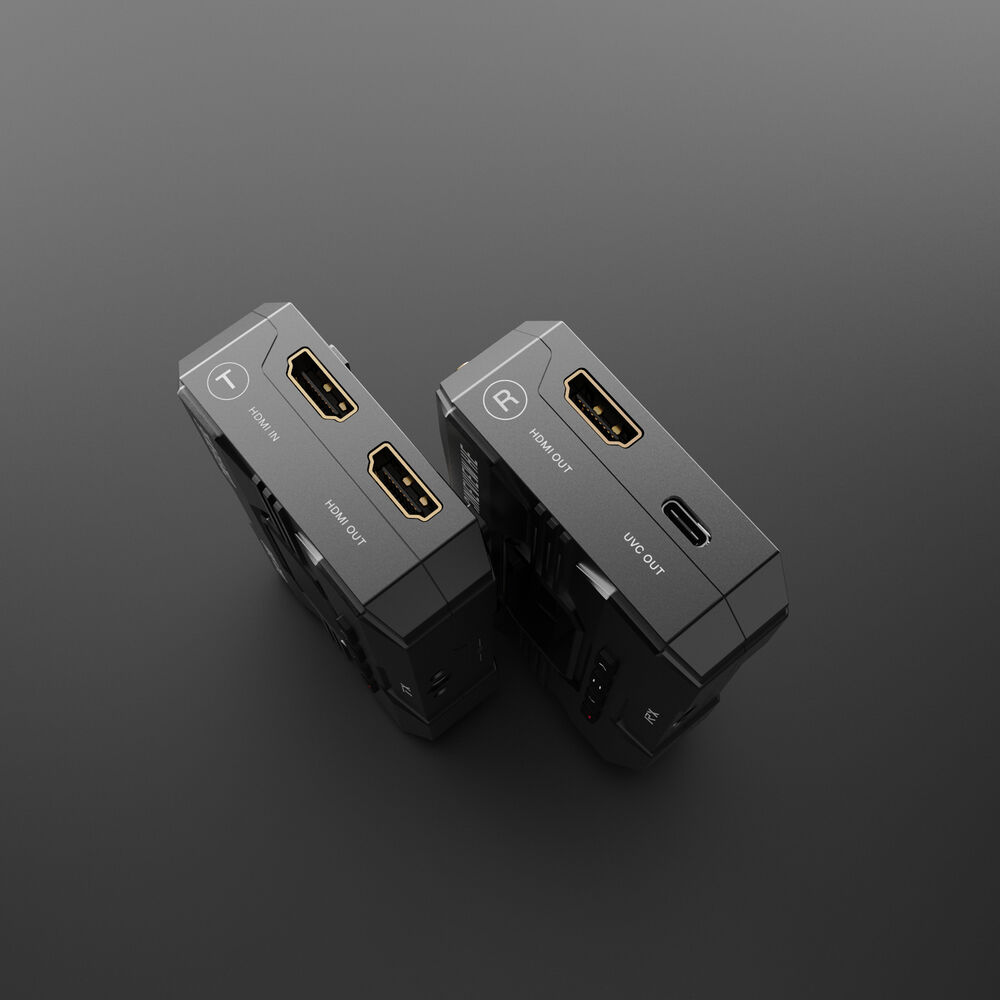

Transmitter: 1 x HDMI Input Transmitter: 1 x HDMI Loop Output Receiver: 1 x HDMI Output Receiver: 1 x USB-C Output |
Embedded Audio |
HDMI |
Audio I/O |
None |
Power |

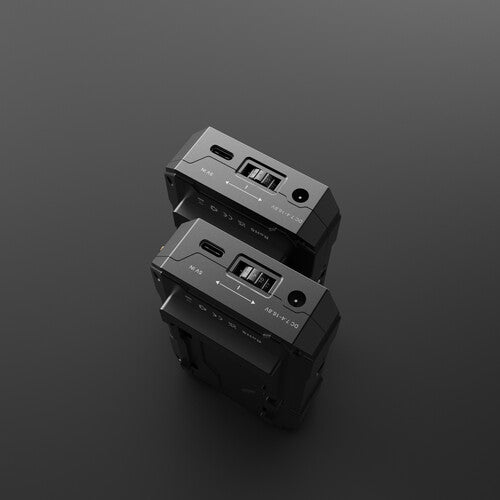

Transmitter/Receiver: 1 x Barrel (16.8 VDC) Input Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input |
Wireless Range |
1200' / 365.8 m |
# of Channels |
20 |
Frequency Range |
2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
Latency |
< 60 ms |
RF Power |
17 dBm |
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
Bluetooth |
None |
Mobile App Compatible |
Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Video Format |
HDMI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p |
Audio Format |
Not Specified by Manufacturer |
Timecode Support |
No |
DC Input Power |
7.4 to 16.8 VDC |
Battery Type |
Transmitter/Receiver: 1 x L-Series |
Mounting |
1 x Cold Shoe 1 x 1/4"-20 Female |
Environmental Protection |
None |
Material of Construction |
Aluminum |
Dimensions |
Transmitter/Receiver: 4.9 x 3 x 1.2" / 12.5 x 7.7 x 3.1 cm |
Weight |
Transmitter/Receiver: 8.1 oz / 230 g |
In the Box:
- Accsoon CineView HE Multi-Spectrum Wireless Video Transmission System
- CineView HE Transmitter
- CineView HE Receiver
- Shoe Mount
- Limited 1-Year Manufacturer Warranty
