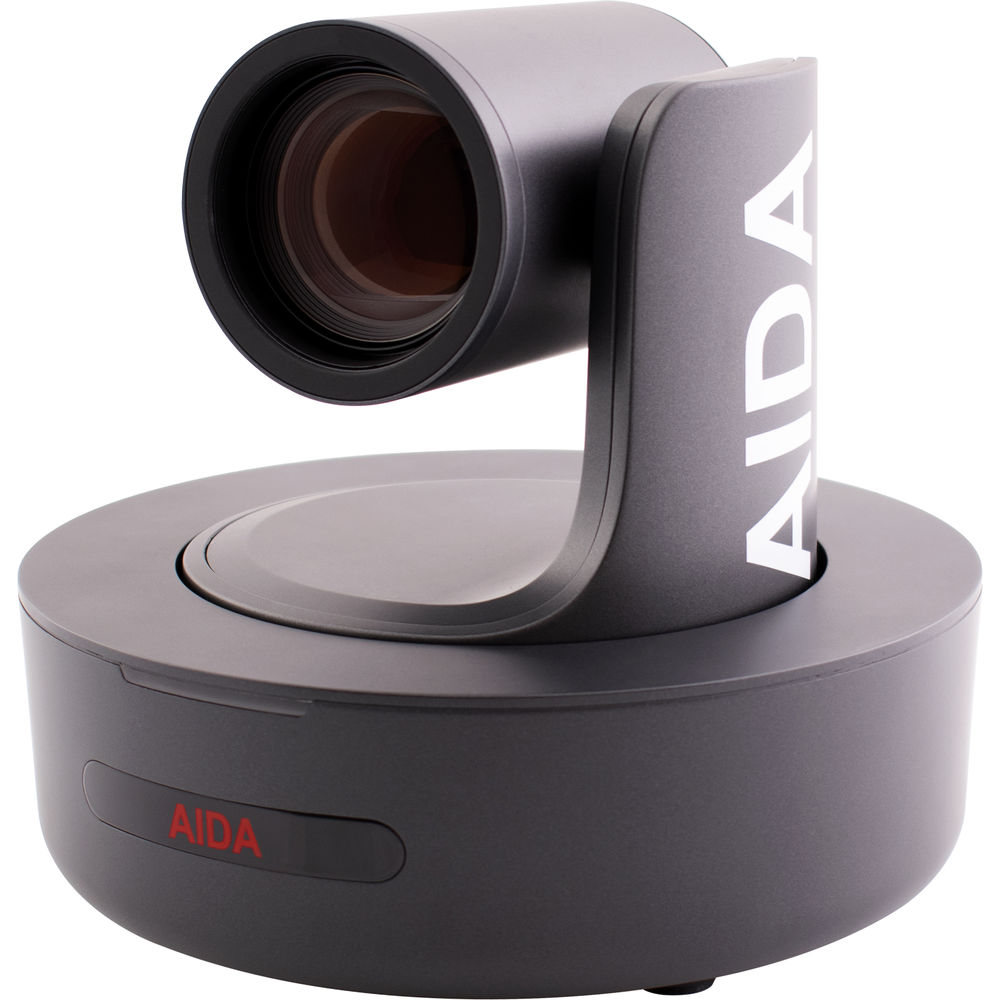

AIDA Imaging 12x Full HD IP Broadcast PTZ Camera

Rs. 121,201.00 Rs. 105,392.00
Key Features:
  • Simultaneous SDI, HDMI, USB, IP Outputs
  • RS-232 I/O, VISCA, TCP/IP, RTSP/RTMP
  • Up to 128 Presets over Serial Control
  • Motion-Compensated Noise Reduction

AIDA's 12x Full HD IP Broadcast PTZ Camera offers four simultaneous video outputs, all supporting up to 1080p60 resolution. While the SDI, HDMI, and USB outputs must be set at the same resolution, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps.

The camera features RS-232 input/output for serial control. It uses the VISCA control protocol and TCP/IP and RTSP/RTMP IP protocol. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.

Key Features:
  • Simultaneous SDI, HDMI, USB, and IP outputs
  • Up to 1080p60 resolution video output
  • H.264 / H.265 streaming
  • RS-232 input/output
  • VISCA control protocol
  • TCP/IP, RTSP/RTMP IP protocol
  • 10 presets via included IR remote controller, 128 presets over serial control
  • Motion-compensated temporal noise reduction filter allows for noise reduction without blur
  • SMPTE 424M/292M standard
  • Built-in OSD controls
  • 4:2:2 (YCbCr) 10-bit color space
  • White Balance: auto, manual, auto tracking, one push, indoor, outdoor
  • Auto shutter speed

Technical Specifications:

Image Sensor

1/2.5"-Type CMOS

Built-In ND Filter

None

Focus Control

Autofocus

Manual Focus

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1 Second

Minimum Illumination

0.1 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

White Balance

Presets: Auto, Indoors, Manual, One Push, Outdoors

Focal Length

3.92 to 47.32mm

Optical Zoom Ratio

12x

Field of View

79 to 6.8°

Maximum Aperture

f/1.8 to 2.8

External Recording Modes

SDI/BNC / HDMI / USB

1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps

1920 x 1080i at 50/59.94 fps

1280 x 720 at 25/29.97/50/59.94 fps

RJ45

1920 x 1080

1280 x 720

1024 x 576

620 x 360

Broadcast Output

NTSC

IP Streaming

H.264, H.265, NDI, ONVIF, RTMP, RTSP, SRT

1920 x 1080 at 60p

1280 x 720 at 60p

1024 x 576 at 60p

620 x 360 at 60p

Presets

10 via IR

128 via RS-232, VISCA

Move Speed

Pan: 0 to 120°/sec

Tilt: 0 to 80°/sec

Movement Range

Pan: 340°

Tilt: 120° (-30 to 90°)

Supported Control Protocols

IR

RS-232

VISCA

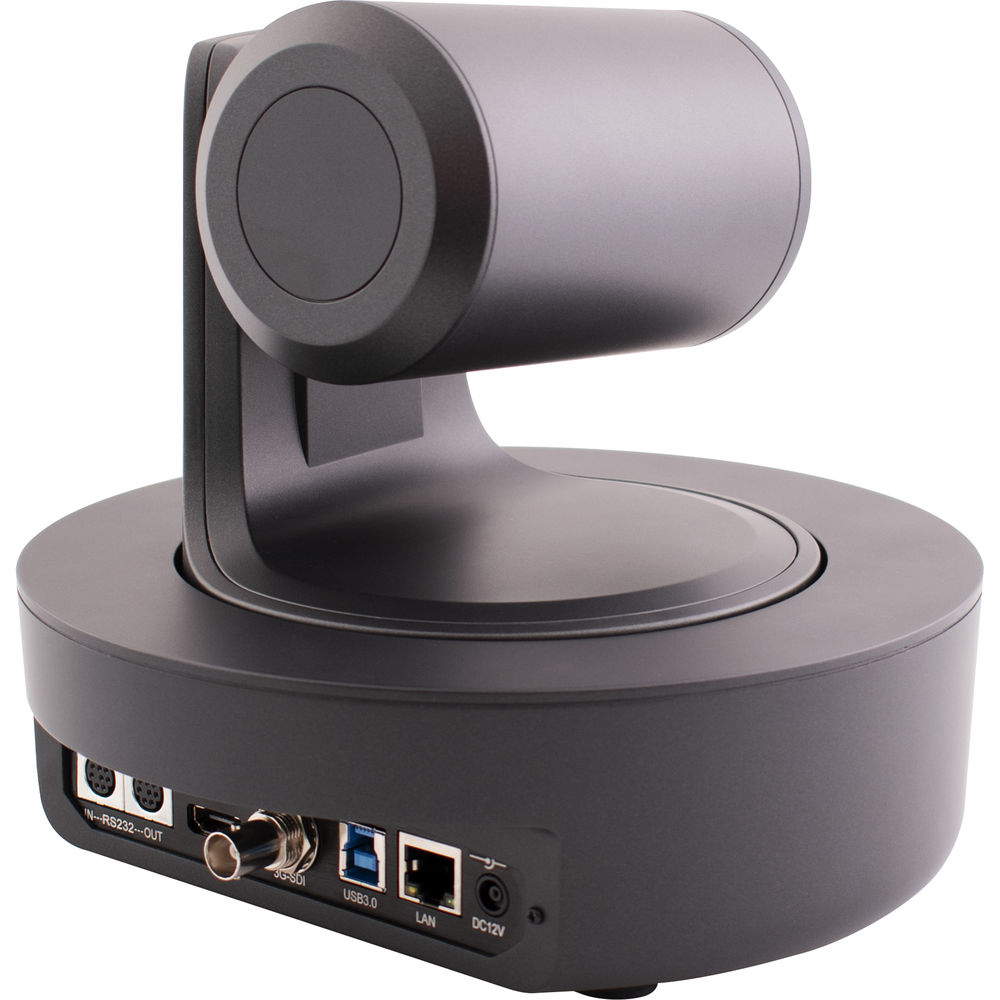

Video I/O

1 x BNC (3G-SDI) Output

1 x HDMI Output

1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output

1 x RJ45 Output

Other I/O

1 x Mini-DIN 8-Pin (RS-232, VISCA) Input

1 x Mini-DIN 8-Pin (RS-232, VISCA) Output

PoE Support

PoE+ 802.3at

Power I/O

1 x Barrel (9 to 15VDC) Input

Operating Temperature

32 to 104°F / 0 to 40°C



In the Box:

  • AIDA Imaging 12x Full HD IP Broadcast PTZ Camera
  • Remote Controller
  • Mounting Bracket
  • USB 3.0 Cable
  • Power Adapter
  • Power Cord
  • Limited 2-Year Manufacturer Warranty
