AIDA Imaging VISCA Serial & IP PTZ Camera Controller
- Pan/Tilt/Zoom Camera Control
- IP & Serial RS-232/422 Communication
- Control up to 7 x PTZ Cameras
- VISCA & VISCA-over-IP Support
- LCD Status Display, Silicone Buttons
- Power-over-Ethernet Support
- 12 VDC Power Supply Included
The VISCA Serial & IP PTZ Camera Controller from AIDA Imaging offers joystick and button control for up to seven AIDA Imaging PTZ cameras with support for VISCA and VISCA-over-IP protocols over IP and serial RS-232 and RS-422 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.
The controller also offers presets including gain, iris, focus, red and blue gain, and speed control settings to control the finer settings on the PTZ camera. The unit comes with a 12 VDC power supply, and it can also be powered using Power-over-Ethernet (PoE).

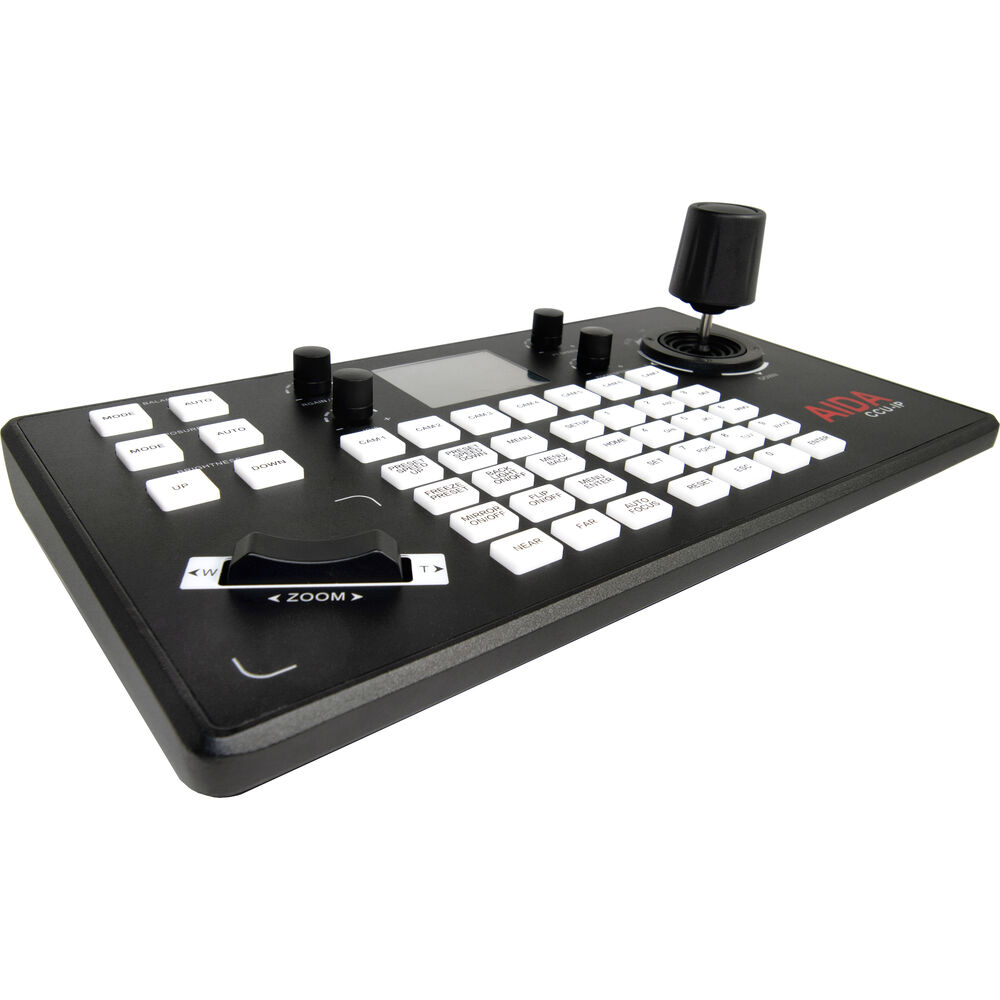

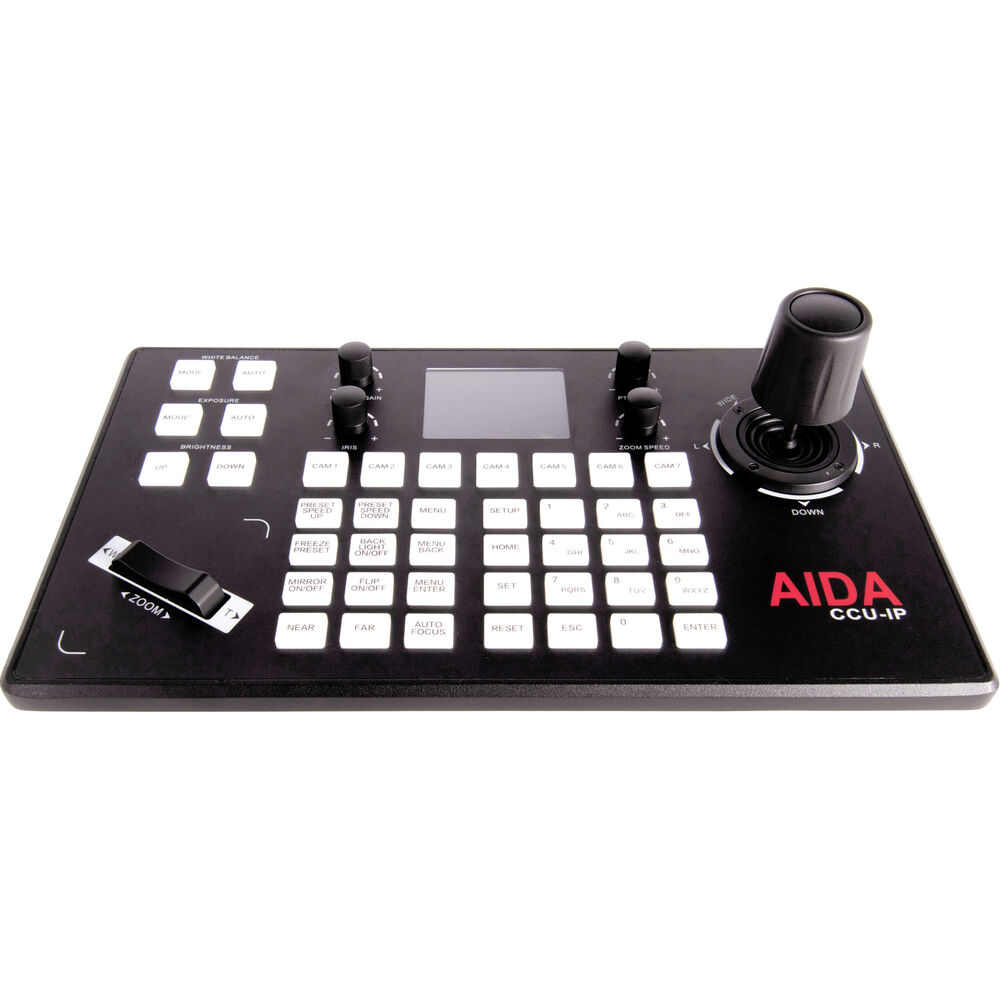

- Pan/tilt joystick, zoom rocker, button control, and LCD screen
- Control speed of pan/tilt and zoom in/out
- IP, RS-232, and RS-422 communication
- VISCA-over-IP and VISCA serial protocols
- Power-over-Ethernet (PoE) support
Technical Specifications:
|
Number of Supported Cameras |
7 Channels via IP 7 Channels via Serial |
|
Supported Control Protocols |
IP RS-232 RS-422 VISCA |
|

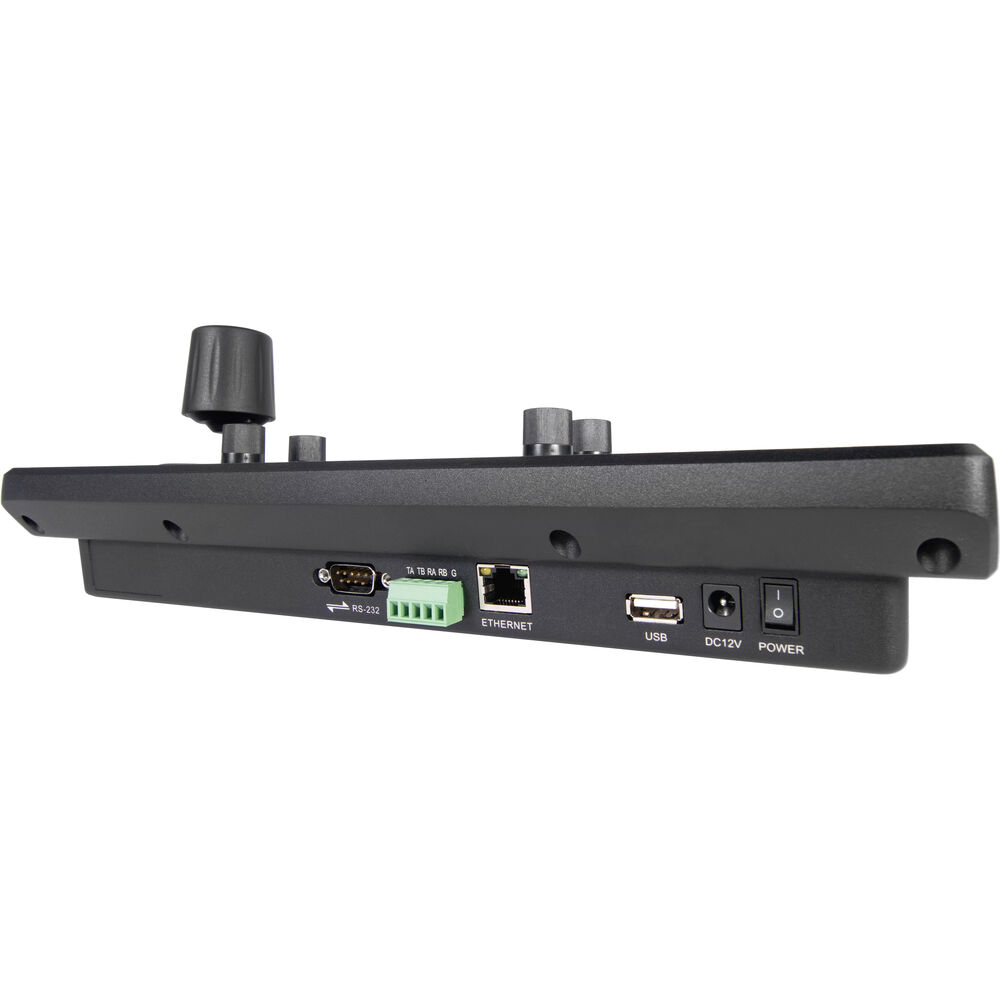

Control I/O |
1 x RJ45 (LAN) 1 x Block (RS-422) 1 x DE-15/DB-15 (RS-232) |
|
Other I/O |
1 x USB Type-A Input |
|
Controls |
1 x Pan/Tilt Joystick 1 x Zoom Rocker |
|
PoE Support |
Yes |
|
Power Connectors |
1 x Barrel / Coaxial |
|
DC Input Power |
12 VDC |
|
Security Lock Support |
None |
|
Dimensions |
2.8 x 4.97 x 1.67" / 7 x 12.63 x 4.25 cm |
|
Weight |
4 lb / 1.8 kg |
In the Box:
- AIDA Imaging VISCA Serial & IP PTZ Camera Controller
- 12 VDC Power Adapter
- Limited 2-Year Manufacturer Warranty
