Austrian Audio OC18 Dual Set Plus Large-Diaphragm Cardioid Condenser Microphones (Matched Pair)
- Matched Pair of Mics for Stereo Setups
- Mounts, Stereo Bar, Windscreens & Case
- Cardioid Polar Pattern
- Handmade 1" Ceramic Capsule
- Gold-Plated Polymer Membrane
- Selectable Pad at -10 or -20 dB
- Selectable 40/80/160 Hz High-Pass Filter
- 48 VDC Phantom Powered
- Durable Zinc-Aluminum Alloy Construction
Designed by a team of former AKG personnel, the Austrian Audio OC18 Dual Set Plus is a matched pair of large-diaphragm studio condenser microphones offering detailed audio capture that's ideal for stereo miking solo instruments, drum kits, and ensembles. The OC18's handmade 1" ceramic capsule features a gold-plated polymer membrane and a cardioid polar pattern, which yields reliable on-axis directivity with enhanced off-axis rejection. Being 48 VDC phantom powered, the OC18 does not require batteries or an external power supply.

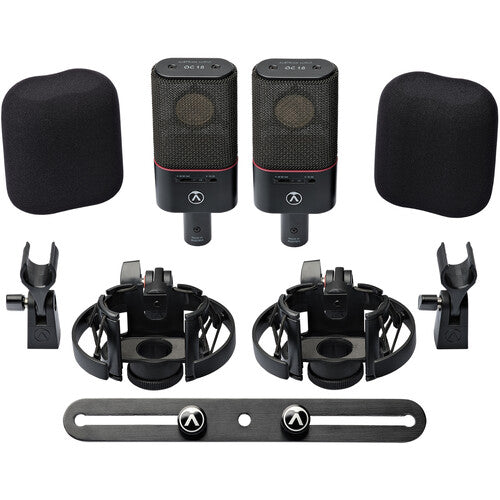

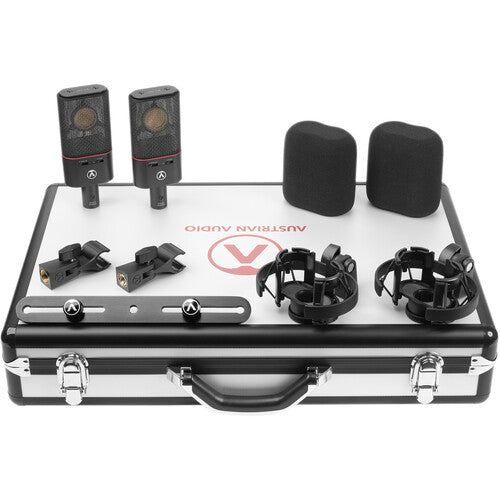

Front-panel switches are provided for easy access to the pad and roll-off settings. Set the pad to -10 or -20 dB to avoid distortion when miking loud sources such as drums or guitar cabinets. Activate the high-pass filter at 40, 80, or 160 Hz for attenuation of low-frequency problems including rumble and proximity effect. The OC18's housing is constructed of zinc-aluminum alloy for strength and durability. The OC18 Dual Set Plus includes two shockmounts, two mic clips, a stereo bar, two windscreens for mitigating noise from breaths and blasts of air, and a protective carry case for easy transport and storage of the entire bundle.
- Both bundles include two OC18 microphones, two mic clips, and two windscreens
- The Dual Set Plus bundle adds two shockmounts, a stereo bar, and a large case to house the entire bundle
- Matched within 1 dB for spectral accuracy and precise imaging in stereo configurations
- Factory-calibrated bias voltage
- 20 Hz to 20 kHz frequency range
- Balanced 3-pin XLR output connector
- Debuts Austrian Audio's Open Acoustics Technology
- Made in Vienna
Specifications:
Microphone:
- Form Factor: Stand/Boom Mount
- Sound Field: Mono
- Element Type: Condenser
- Diaphragm: 1" / 25.40 mm
- Polar Pattern: Cardioid
- Orientation: Side Address
- Circuitry: Solid-State
- Pad: -10 dB, -20 dB
- High-Pass Filter: 40 Hz, 80 Hz, 160 Hz
- On-Board Controls: High-Pass Filter, Pad
Performance:
- Frequency Range: 20 Hz to 20 kHz
- Impedance: 275 Ohms
- Sensitivity: 13 mV/Pa
Connectivity:
- Analog Output: 1x XLR 3-Pin Male (on Mic)
Power:
- Power Sources: Phantom Power
- Operating Voltage: Not specified
Physical:
- Color: Black
- Construction Material: Zinc Alloy
- Dimensions: Diameter: 2.48 inches, Length: 6.18 inches / Diameter: 63 mm, Length: 157 mm
- Weight: 12.52 oz / 355 g
In the Box
- Austrian Audio OC18 Dual Set Plus Large-Diaphragm Cardioid Condenser Microphones (Matched Pair)
- Stereo Bar
- Protective Carry Case
