Key Features:

For Vocals/Instruments in Studio & Stage
Cardioid Pattern Lowers Background Noise
Selectable Pad at -10 or -20 dB
Selectable 40/80/160 Hz High-Pass Filter
Handmade 1" Ceramic Capsule
Gold-Plated Polymer Membrane
Durable Zinc-Aluminum Alloy Construction
Includes Shockmount and Mic Clip

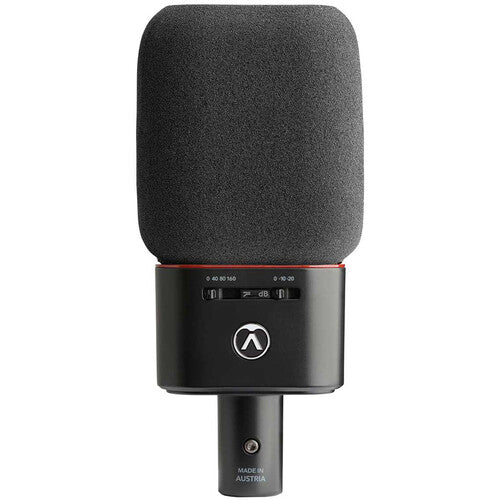

Includes Windscreen and Carry Case
48 VDC Phantom Powered

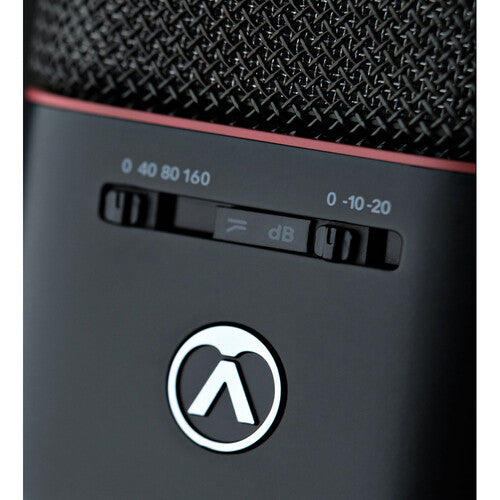

Designed by a team of former AKG personnel, the Austrian Audio OC18 Studio Set is a large-diaphragm studio condenser microphone offering detailed audio capture for vocalists, voiceover artists, musicians, and producers in personal and commercial recording facilities. The handmade 1" ceramic capsule features a gold-plated polymer membrane and a cardioid polar pattern, which yields reliable on-axis directivity with enhanced off-axis rejection. Front-panel switches are provided for easy access to the pad and roll-off settings.

Set the pad to -10 or -20 dB to avoid distortion when miking loud sources such as drums or guitar cabinets. Activate the high-pass filter at 40, 80, or 160 Hz for attenuation of low-frequency problems including rumble and proximity effect. The OC18's housing is constructed of zinc-aluminum alloy for strength and durability. The OC18 Studio Set includes a vibration-reducing shockmount, a traditional mic clip, a windscreen for mitigating noise from breaths and blasts of air, and a protective carry case. Being 48 VDC phantom powered, the OC18 does not require batteries or an external power supply.

Handcrafted Condenser Capsule

Handcrafted CKR6 ceramic capsule like the CKR12 capsule, but with a single diaphragm

Precision Matching

Matched within 1 dB of every other OC18 or OC818 to allow the creation of stereo pairs (additional microphones available separately)

Studio Sound Quality

High sensitivity and low self-noise means it can handle everything from a whisper to extreme SPLs without distortion

Onboard Settings

Two-stage pad (-10 or -20 dB) to prevent distortion and high-pass filter with three positions (40, 80, or 160 Hz) for reduction of low-frequency rumble and excessive bass

Features at a Glance

Single-diaphragm CKR6 handcrafted ceramic capsule
Debuts Austrian Audio's Open Acoustics Technology
Cardioid polar pattern
Balanced 3-pin XLR output connector
48V phantom powered
Includes shockmount, mic clip, windscreen, and protective carry case
Engineered and manufactured in Austria

Specification:

Microphone:

Primary Applications: Studio Recording
Form Factor: Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources: Vocals, Speech/Voice-Over, Instruments
Sound Field: Mono
Element Type: Condenser
Diaphragm: 1" / 25.40 mm
Polar Pattern: Cardioid
Orientation: Side Address
Circuitry: Solid-State
Pad: -10 dB, -20 dB
High-Pass Filter: 40 Hz, 80 Hz, 160 Hz
On-Board Controls: High-Pass Filter, Pad

Performance:

Frequency Range: 20 Hz to 20 kHz
Maximum SPL (Sound Pressure Level): 148 dB SPL
Impedance: 275 Ohms
Load Impedance: > 1000 Ohms
Sensitivity: 13 mV/Pa
Equivalent Noise Level: 9 dB SPL A-Weighted

Connectivity:

Analog Output: 1x XLR 3-Pin Male (on Mic)

Power:

Power Sources: Phantom Power
Operating Voltage: Not specified

Physical:

Color: Black
Construction Material: Zinc Alloy
Dimensions: Height: 1.4 inches, Width: 2.5 inches, Length: 6.2 inches / Height: 3.5 cm, Width: 6.3 cm, Length: 15.7 cm
Weight: 12.52 oz / 355 g
