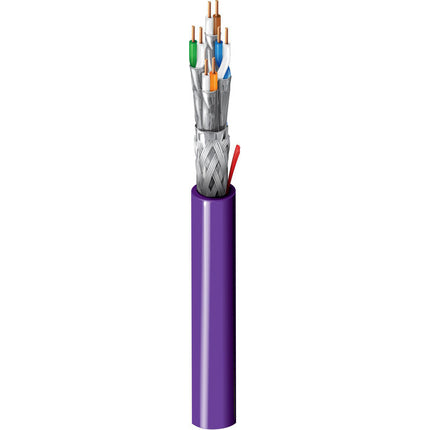

Belden 1885ENH - Category 7A Enhanced Cable
Category 7 Enhanced Premise Horizontal Cable (1000MHz), 4-Pair, 23 AWG solid bare copper conductors, S/FTP, Foam Polyethylene insulation, each pair with Beldfoil® shield, overall tinned copper braid shield (30% coverage), LSZH jacket
Product Overview:
|
Suitable Applications |
Horizontal and building backbone cable; Support current and future Category 6a, 7 and 7a applications, such as: 10GBase - T (10 Gigabit Ethernet), 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM |
|
|
|
|
CONDUCTOR |
|
|
Element |
Individual Shielded Pair |
|
Number of Pairs |
4 |
|
AWG |
23 |
|
Stranding |
Solid |
|
Material |
BC - Bare Copper |
|
Number of Element |
8 |
|
|
|
|
INSULATION |
|
|
Element |
Individual shielded pair |
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
1.45 mm (0.0571 in) |
|
Color Code |
White & Blue, White & Orange, White & Green, White & Brown |
|
|
|
|
Cable Core |
|
|
Description |
4 shielded pairs twisted together |
|
|
|
|
INNER SHIELD MATERIAL |
|
|
Element |
Individual shielded pair |
|
Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage [%] |
100% |
|
Table Notes |
Aluminum facing outside |
|
|
|
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Min. Coverage [%] |
30% |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nominal Diameter |
7.0 mm (0.28 in) |
|
Ripcord |
Yes |
|
|
|
|
|
|
|
Electrical Characteristics |
|
|
Max. Conductor DCR |
95 Ohm/km |
|
Max. Mutual Capacitance |
56 pF/m (17 pF/ft) |
|
Max. Capacitance Unbalance |
160 pF/100m |
|
Nom. Characteristic Impedance |
100 Ohm |
|
|
|
|
Delay |
|
|
Max. Delay Skew |
25 ns/100m |
|
Nom. Velocity of Prop. |
78% |
|
|
|
|
TRANSFER IMPEDANCE |
|
|
Frequency [MHz] |
Transfer Impedance |
|
1 Mhz |
Max. 50 mOhm/m |
|
10 Mhz |
Max. 100 mOhm/m |
|
30 Mhz |
Max. 200 mOhm/m |
|
100 Mhz |
Max. 1000 mOhm/m |
|
|
|
|
Transfer Impedance Class |
Grade 2 |
|
Voltage Rating |
72 V |
|
Operating Temperature |
-30°C to +60°C |
|
Installation Temperature |
0°C To +50°C |
|
Bend Radius Stationary Min. |
29 mm (1.1 in) |
|
Bend Radius Installation Min. |
58 mm |
|
Max. Pull Tension |
85 N (19 lbf) |
|
Bulk Cable Weight |
52 kg/km |
|
|
|
