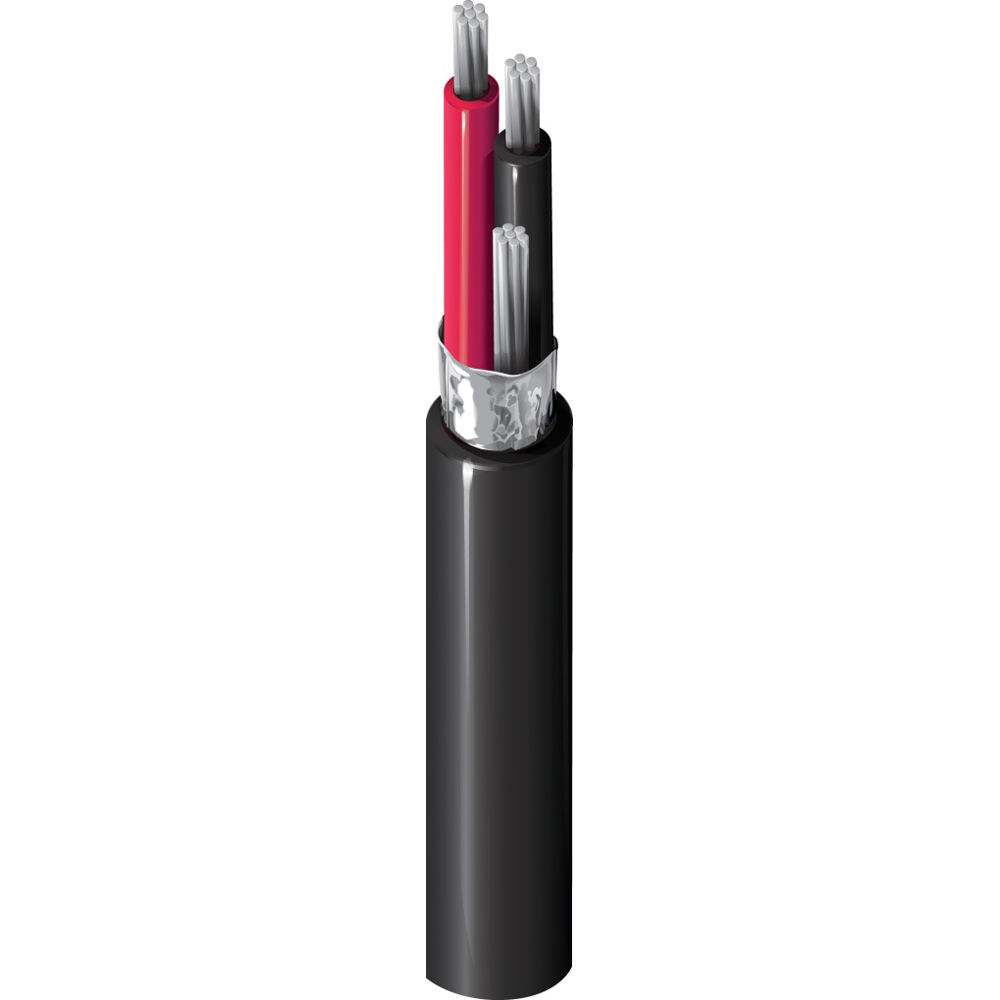

Belden 2Core Shielded Audio Cable 1000Ft (9451 0101000)

Rs. 35,000.00

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket.

Product Overview:

Suitable Applications

Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level audio; Computer Communication; Panel Wiring


Construction Details:

CONDUCTOR

Element

Number of Element

AWG

Stranding

Material

Pair(s)

1

22

7x30

TC - Tinned Copper

INSULATION

Element

Material

Thickness

Nom. Insulation Diameter

Color Code

Pair(s)

PP - Polypropylene

0.009 in (0.23 mm)

0.046 in (1.2 mm)

Black & Red

OUTER SHIELD MATERIAL

Shield Type

Material

Coverage

Drainwire Type

Notes

Tape

Bi-Laminate (Alum+Poly)

100%

22 AWG (7x30) TC

Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

OUTER JACKET MATERIAL

Material

Thickness

Nom. Diameter

PVC - Polyvinyl Chloride

0.020 in (0.51 mm)

0.135 in

Cable Diameter (Nominal)

0.135 in (3.43 mm)


Electrical Characteristics:

ELECTRICALS

Element

Nom. Conductor DCR

Nom. Capacitance Cond-to-Cond

Nom. Capacitance Cond-to-Other (Conds + Shield)

Characteristic Impedence

Nom. Velocity of Prop.

Max. Current

Pair(s)

14.1 Ohm/1000ft (46.3 Ohm/km)

35 pF/ft (110 pF/m)

67 pF/ft (220 pF/m)

45 Ohm

66%

2.9 Amps per Conductor at 25ºC

Nom. Outer Shield DCR

14.3 Ohm/1000ft

VOLTAGE

UL Voltage Rating

300 V (CMR)


Mechanical Characteristics:

TEMPERATURE

UL Rating

Operating

60°C

-20°C to +75°C

BEND RADIUS

Stationary Min.

Installation Min.

1.4 in (36 mm)

1.4 in (36 mm)

Max. Pull Tension

27 lbs (12 kg)

Bulk Cable Weight

14 lbs/1000ft (21 kg/km)


Standards and Compliance:

Environmental Suitability

Indoor - Riser, Indoor

Sustainability

CA Prop 65

Flammability / Fire Resistance

UL1666 Vertical Shaft, FT4, IEC 60332-1-2

NEC / UL Compliance

Article 800, CMR

CPR Euroclass

Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

9451P


Product Notes:

Notes

For cross-connect, use with 1814R (et. al.) Snake Cables.


History:

Update and Revision

Revision Number: 0.380 Revision Date: 07-02-2021
