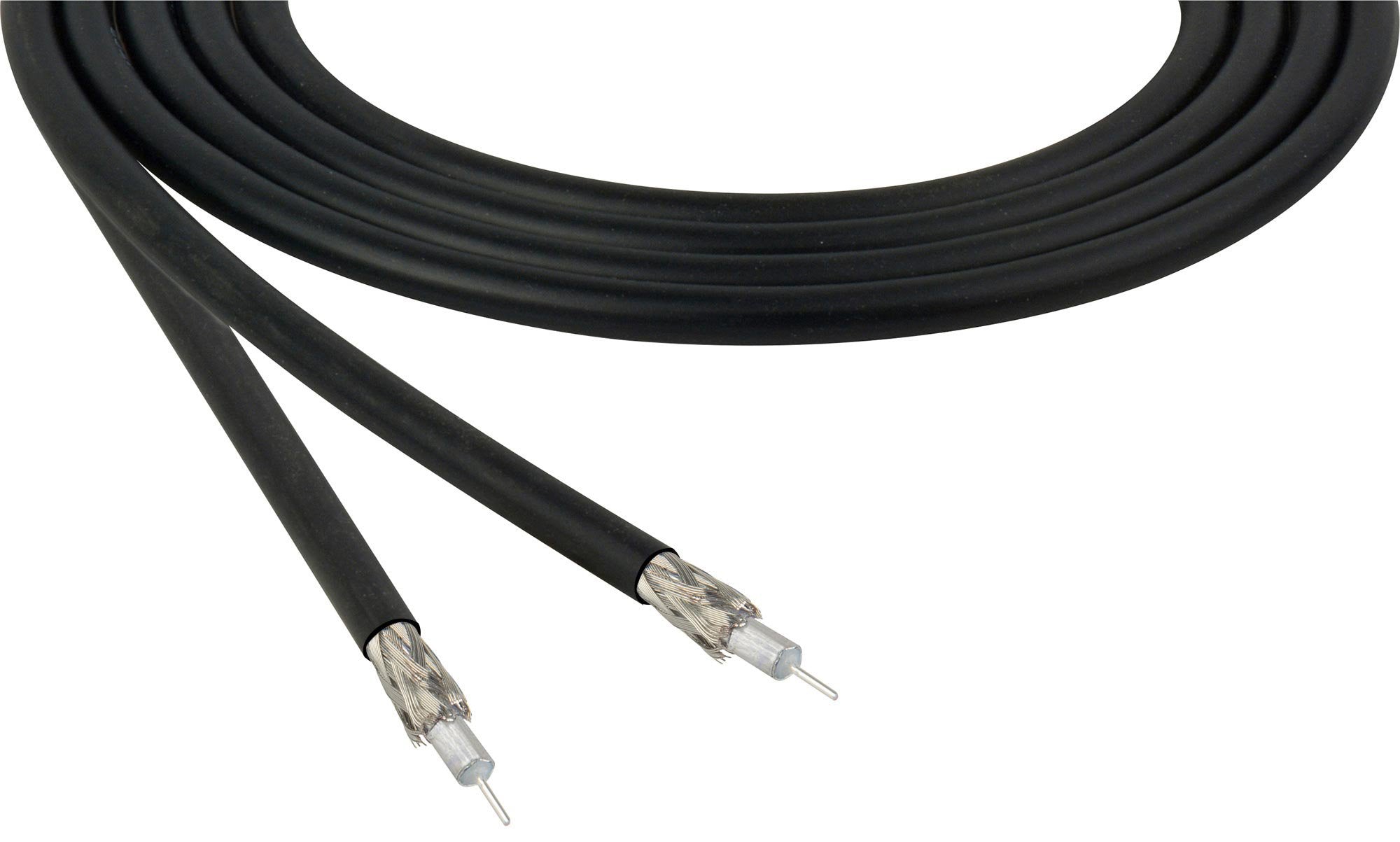

Belden 4K UHD Coax 12G-SDI Mini RG-59 23 AWG Cable (4855R)
12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC Jacket
Technical Specifications:
|
Suitable Applications |
Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p |
|
RG Type |
Mini 59 |
|
|
|
|
CONDUCTOR |
|
|
Size |
23 AWG |
|
Stranding |
Solid |
|
Nom. Diameter |
0.023 in |
|
Material |
SC - Silvered Copper |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
0.102 in (2.59 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Layer |
1 |
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duobond® II |
|
Coverage |
100% |
|
|
|
|
Layer |
2 |
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Material Trade Name |
- |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.159 in (4.04 mm) |
|
Overall Cable Diameter (Nominal) |
0.159 in (4.04 mm) |
|
|
|
|
RETURN LOSS |
|
|
Frequency |
Min. Return Loss |
|
5 - 1600 MHz |
23 dB |
|
1600 - 4500 MHz |
21 dB |
|
4500 - 12000 MHz |
15 dB |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.39 dB/100ft |
|
3.58 MHz |
0.78 dB/100ft |
|
5 MHz |
0.92 dB/100ft |
|
6 MHz |
1 dB/100ft |
|
7 MHz |
1.08 dB/100ft |
|
10 MHz |
1.2 dB/100ft |
|
12 MHz |
1.3 dB/100ft |
|
25 MHz |
1.8 dB/100ft |
|
55 MHz |
2.6 dB/100ft |
|
67.5 MHz |
2.83 dB/100ft |
|
71.5 MHz |
2.93 dB/100ft |
|
88.5 MHz |
3.22 dB/100ft |
|
100 MHz |
3.39 dB/100ft |
|
135 MHz |
3.84 dB/100ft |
|
143 MHz |
4.00 dB/100ft |
|
180 MHz |
4.41 dB/100ft |
|
270 MHz |
5.44 dB/100ft |
|
360 MHz |
6.34 dB/100ft |
|
540 MHz |
7.85 dB/100ft |
|
720 MHz |
9.09 dB/100ft |
|
750 MHz |
9.28 dB/100ft |
|
1000 MHz |
10.8 dB/100ft |
|
1500 MHz |
13.2 dB/100ft |
|
2000 MHz |
15.3 dB/100ft |
|
2250 MHz |
16.3 dB/100ft |
|
3000 MHz |
19.0 dB/100ft |
|
4500 MHz |
23.6 dB/100ft |
|
6000 MHz |
27.7 dB/100ft |
|
12000 MHz |
41.2 dB/100ft |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
19.7 Ohm/1000ft (64.6 Ohm/km) |
|
Nom. Outer Shield DCR |
3.8 Ohm/1000ft (12 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
16.3 pF/ft (53.5 pF/m) |
|
Nom. Characteristic Impedance |
75 Ohm |
|
Nom. Velocity of Prop. |
82% |
|
|
|
|
UL Voltage Rating |
300 V RMS (CMR, CMG) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
60°C |
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
1.6 in |
|
Max. Pull Tension |
33 lbs (15 kg) |
|
Bulk Cable Weight |
17 lbs/1000ft |
