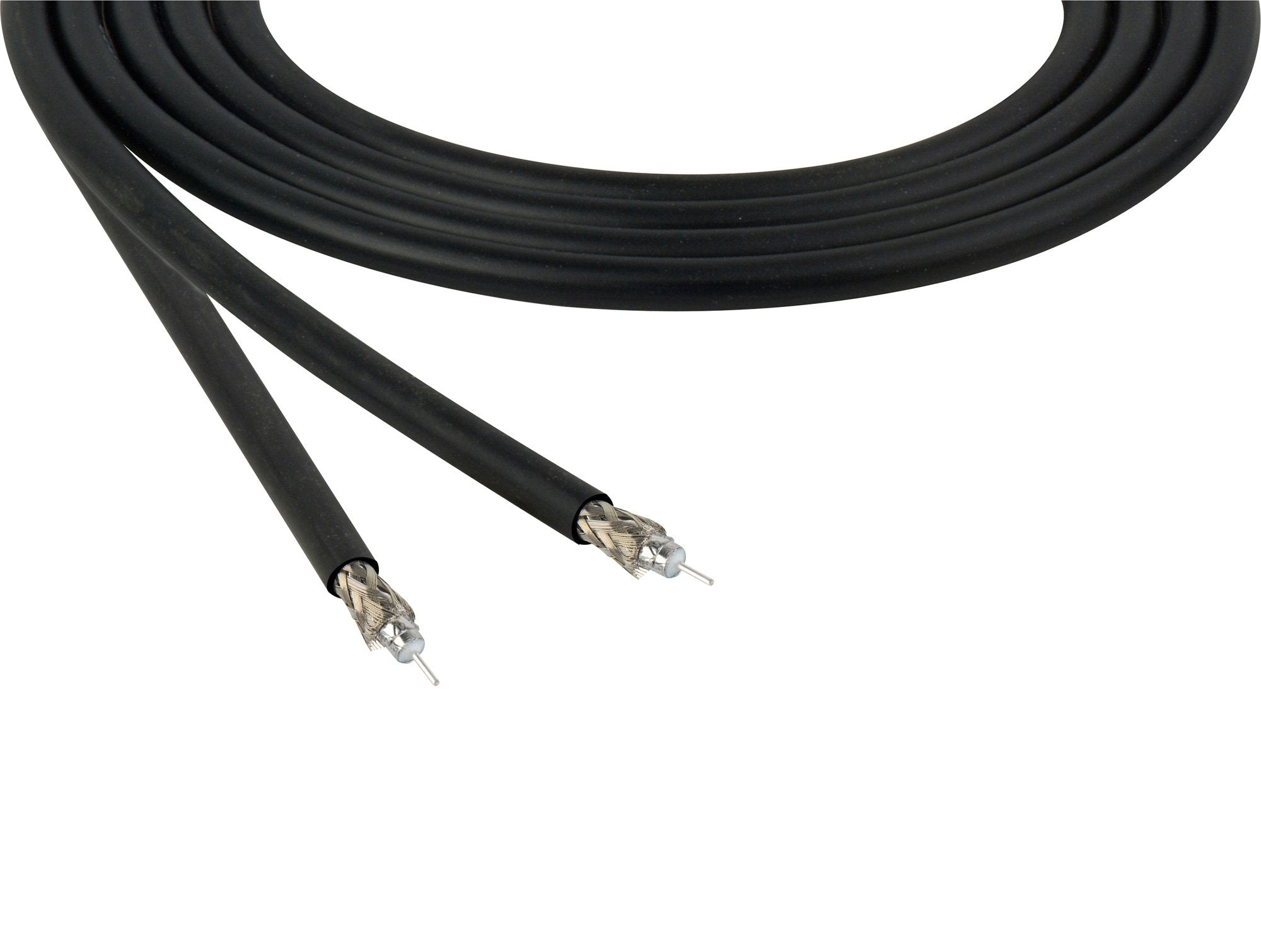

Belden 4K UHD Coax for 12G-SDI 75 Ohm RG-59 20 AWG Solid SC Cable (4505R)
75 Ohm SDI Coax, RG-59, 20 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Technical Specifications:
|
Suitable Applications |
Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p |
|
RG Type |
59 |
|
|
|
|
CONDUCTOR |
|
|
Size |
20 AWG |
|
Stranding |
Solid |
|
Nom. Diameter |
0.032 in |
|
Material |
SC - Silvered Copper |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
0.145 in (3.68 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Layer |
1 |
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duobond® II |
|
Coverage |
100% |
|
|
|
|
Layer |
2 |
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Material Trade Name |
- |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.233 in (5.92 mm) |
|
Overall Cable Diameter (Nominal) |
0.233 in (5.92 mm) |
|
|
|
|
RETURN LOSS |
|
|
Frequency |
Min. Return Loss |
|
5 - 1600 MHz |
23 dB |
|
1600 - 4500 MHz |
21 dB |
|
4500 - 12000 MHz |
15 dB |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.30 dB/100ft |
|
3.58 MHz |
0.60 dB/100ft |
|
5 MHz |
0.63 dB/100ft |
|
6 MHz |
0.69 dB/100ft |
|
7 MHz |
0.74 dB/100ft |
|
10 MHz |
0.90 dB/100ft |
|
12 MHz |
0.91 dB/100ft |
|
25 MHz |
1.30 dB/100ft |
|
55 MHz |
1.98 dB/100ft |
|
67.5 MHz |
2.05 dB/100ft |
|
71.5 MHz |
2.1 dB/100ft |
|
88.5 MHz |
2.2 dB/100ft |
|
100 MHz |
2.3 dB/100ft |
|
135 MHz |
2.7 dB/100ft |
|
143 MHz |
2.8 dB/100ft |
|
180 MHz |
3.1 dB/100ft |
|
270 MHz |
3.8 dB/100ft |
|
360 MHz |
4.4 dB/100ft |
|
540 MHz |
5.5 dB/100ft |
|
720 MHz |
6.4 dB/100ft |
|
750 MHz |
6.5 dB/100ft |
|
1000 MHz |
7.6 dB/100ft |
|
1500 MHz |
9.3 dB/100ft |
|
2000 MHz |
10.8 dB/100ft |
|
2250 MHz |
11.5 dB/100ft |
|
3000 MHz |
13.4 dB/100ft |
|
4500 MHz |
16.7 dB/100ft |
|
6000 MHz |
19.7 dB/100ft |
|
12000 MHz |
28.7 dB/100ft |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
10.1 Ohm/1000ft (33.1 Ohm/km) |
|
Nom. Outer Shield DCR |
3.4 Ohm/1000ft (11 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
16.1 pF/ft (52.8 pF/m) |
|
Nom. Characteristic Impedance |
75 Ohm |
|
Nom. Velocity of Prop. |
83% |
|
|
|
|
UL Voltage Rating |
300 V (CMR, CMG) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
60°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.3 in |
|
Max. Pull Tension |
52 lbs (24 kg) |
|
Bulk Cable Weight |
31 lbs/1000ft |
