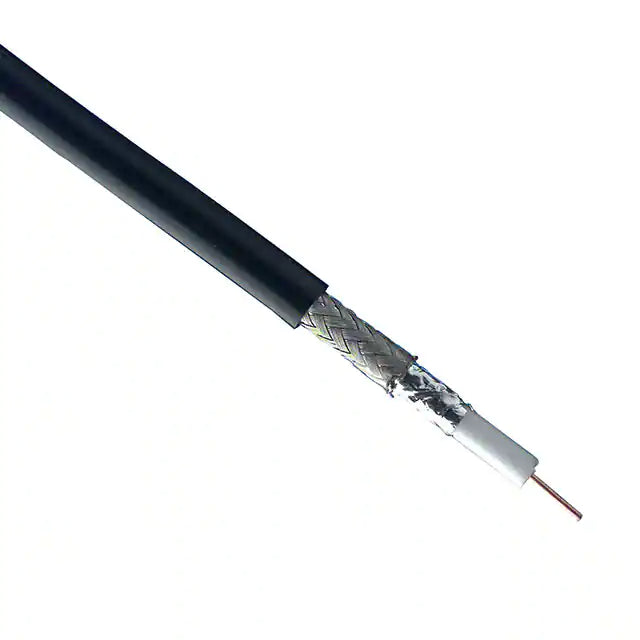

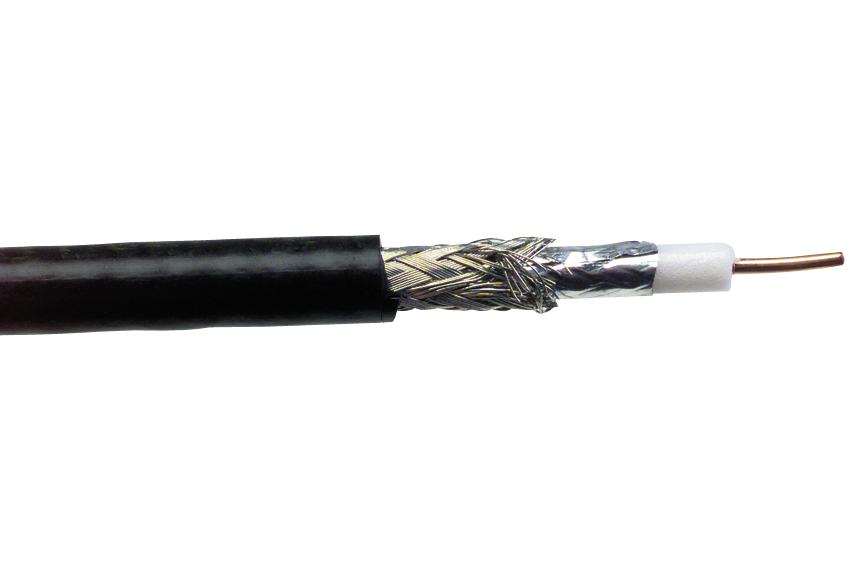

Belden 50 Ohm Wireless Transmission Coax RF 195 RG58 19 AWG Cable (7806A)
50 Ohm Wireless Transmission Coax, RF 195, RG58, 19 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil® + 90% Tinned Copper Braid Shield, PE Jacket
Technical Specifications:
|
Suitable Applications |
Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|
|
|
|
RG Type |
58 |
|
|
|
|
CONDUCTOR |
|
|
Size |
19 AWG |
|
Stranding |
Solid |
|
Nom. Diameter |
0.037 in |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
0.110 in (2.79 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Layer |
1 |
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duofoil |
|
Coverage |
100% |
|
|
|
|
Layer |
2 |
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Material Trade Name |
- |
|
Coverage |
90% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PE - Polyethylene |
|
Nom. Diameter |
0.195 in (4.95 mm) |
|
Overall Cable Diameter (Nominal) |
0.195 in (4.95 mm) |
|
|
|
|
VSWR |
|
|
Frequency |
5 - 6000 MHz |
|
Max. VSWR |
1.25:1 |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
5 MHz |
0.75 dB/100ft |
|
10 MHz |
1 dB/100ft |
|
30 MHz |
2 dB/100ft |
|
50 MHz |
2.5 dB/100ft |
|
150 MHz |
4 dB/100ft |
|
220 MHz |
4.9 dB/100ft |
|
450 MHz |
7.1 dB/100ft |
|
900 MHz |
10.3 dB/100ft |
|
1500 MHz |
13.7 dB/100ft |
|
1800 MHz |
15.2 dB/100ft |
|
2000 MHz |
16.1 dB/100ft |
|
2500 MHz |
18.3 dB/100ft |
|
3000 MHz |
20.5 dB/100ft |
|
4500 MHz |
26.5 dB/100ft |
|
5800 MHz |
31.2 dB/100ft |
|
6000 MHz |
32 dB/100ft |
|
|
|
|
POWER RATING |
|
|
Frequency |
Max. Power Rating |
|
30 MHz |
890 W |
|
50 MHz |
694 W |
|
150 MHz |
403 W |
|
220 MHz |
336 W |
|
450 MHz |
231 W |
|
900 MHz |
162 W |
|
1,500 MHz |
124 W |
|
2,000 MHz |
107 W |
|
2,500 MHz |
95 W |
|
3,500 MHz |
80 W |
|
4,500 MHz |
70 W |
|
6,000 MHz |
61 W |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
7.6 Ohm/1000ft (25 Ohm/km) |
|
Nom. Outer Shield DCR |
4.2 Ohm/1000ft (14 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
24.3 pF/ft (79.7 pF/m) |
|
Nom. Characteristic Impedance |
50 Ohm |
|
Nom. Velocity of Prop. |
77% |
|
|
|
|
Voltage Rating |
300 V |
|
|
|
|
TEMPERATURE |
|
|
Operating |
-30°C to +75°C |
|
|
|
|
Max. Pull Tension |
40 lbs (18 kg) |
|
Bulk Cable Weight |
23 lbs/1000ft |
