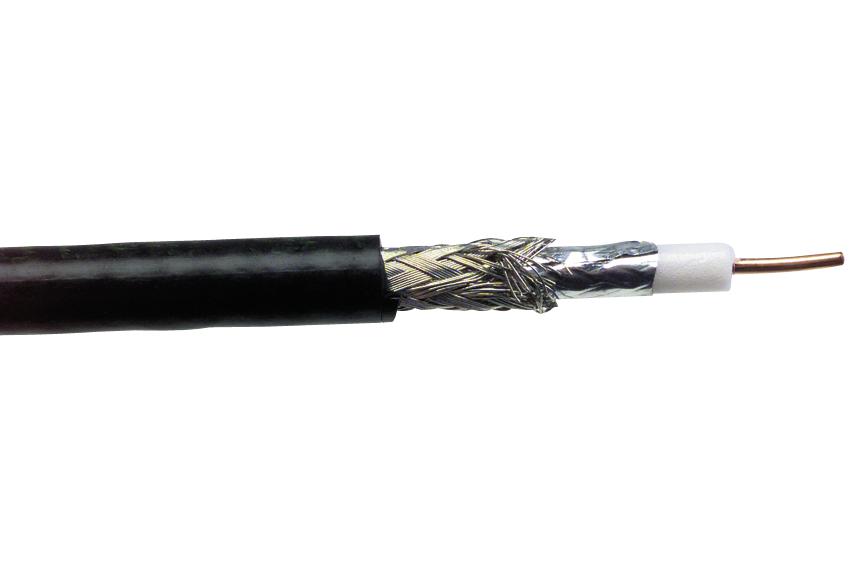

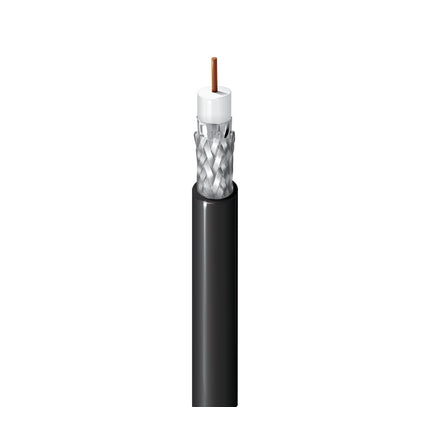

Belden 50 Ohm Wireless Transmission Coax RF 240 RG58X 15 AWG Cable (7808A)

Rs. 23,000.00



50 Ohm Wireless Transmission Coax, RF 240, RG58X, 15 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil® II + 95% Tinned Copper Braid Shield, PE Jacket

Technical Specifications:

Suitable Applications

Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)



RG Type

58X



CONDUCTOR


Element

Coax(es)

Number of Element

1

Size

15 AWG

Stranding

Solid

Nom. Diameter

0.057 in

Material

BC - Bare Copper



INSULATION


Element

Coax(es)

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.150 in (3.81 mm)

Color Code

White



OUTER SHIELD


Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil

Coverage

100%



Layer

2

Outer Shield Type

Braid

Material

Tinned Copper (TC)

Material Trade Name

-

Coverage

97%



OUTER JACKET


Material

PE - Polyethylene

Nom. Diameter

0.240 in (6.10 mm)

Overall Cable Diameter (Nominal)

0.240 in (6.10 mm)



VSWR


Frequency

5-6000 MHz

Max. VSWR

1.25:1



ATTENUATION


Frequency

Nom. Attenuation

5 MHz

0.58 dB/100ft

10 MHz

0.77 dB/100ft

30 MHz

1.3 dB/100ft

50 MHz

1.6 dB/100ft

150 MHz

2.8 dB/100ft

220 MHz

3.4 dB/100ft

450 MHz

4.9 dB/100ft

900 MHz

7.0 dB/100ft

1500 MHz

9.1 dB/100ft

1800 MHz

10.1 dB/100ft

2000 MHz

10.7 dB/100ft

2500 MHz

12 dB/100ft

3000 MHz

13.4 dB/100ft

3500 MHz

14.6 dB/100ft

4500 MHz

16.7 dB/100ft

5800 MHz

19.5 dB/100ft

6000 MHz

19.8 dB/100ft



POWER RATING


Frequency

Max. Power Rating

30 MHz

1,526 W

50 MHz

1,186 W

150 MHz

673 W

220 MHz

556 W

450 MHz

382 W

900 MHz

268 W

1,500 MHz

205 W

2,000 MHz

177 W

2,500 MHz

156 W

3,500 MHz

100 W

4,500 MHz

116 W

6,000 MHz

100 W



ELECTRICALS


Nom. Conductor DCR

3.2 Ohm/1000ft

Nom. Outer Shield DCR

2.8 Ohm/1000ft (9.2 Ohm/km)

Nom. Capacitance Cond-to-Shield

23 pF/ft (75 pF/m)

Nom. Characteristic Impedance

50 Ohm

Nom. Velocity of Prop.

86%



Voltage Rating

300 V RMS



TEMPERATURE


Operating

-30°C to +75°C



Max. Pull Tension

69 lbs (31 kg)

Bulk Cable Weight

36 lbs/1000ft (54 kg/km)
