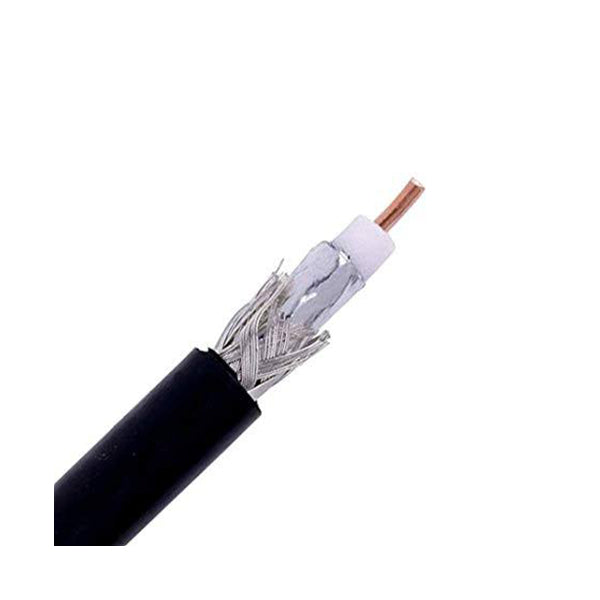

Belden 50 Ohm Wireless Transmission Coax RG-58 20 AWG Cable (82240)
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid Bare Copper Conductor, FEP Insulation, 95% Tinned Copper Braid Shield, Flamarrest® Jacket, CMP
Technical Specifications:
|
Suitable Applications |
Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|
|
|
|
RG Type |
58 |
|
|
|
|
CONDUCTOR |
|
|
Size |
20 AWG |
|
Stranding |
Solid |
|
Nom. Diameter |
0.032 in |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Material |
FEP - Fluorinated Ethylene Propylene |
|
Nom. Insulation Diameter |
0.107 in (2.72 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.159 in (4.04 mm) |
|
Overall Cable Diameter (Nominal) |
0.159 in (4.04 mm) |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.5 dB/100ft |
|
10 MHz |
1.2 dB/100ft |
|
50 MHz |
3.0 dB/100ft |
|
100 MHz |
4.3 dB/100ft |
|
200 MHz |
6.4 dB/100ft |
|
400 MHz |
9.7 dB/100ft |
|
700 MHz |
13.7 dB/100ft |
|
900 MHz |
16.1 dB/100ft |
|
1000 MHz |
17.3 dB/100ft |
|
|
|
|
POWER RATING |
|
|
Frequency |
Max. Power Rating |
|
1 MHz |
4,799 W |
|
10 MHz |
1,937 W |
|
50 MHz |
782 W |
|
100 MHz |
542 W |
|
200 MHz |
370 W |
|
400 MHz |
248 W |
|
700 MHz |
178 W |
|
900 MHz |
153 W |
|
1,000 MHz |
143 W |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
10.1 Ohm/1000ft (33.1 Ohm/km) |
|
Nom. Outer Shield DCR |
3.8 Ohm/1000ft (12 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
27.4 pF/ft (89.9 pF/m) |
|
Nom. Characteristic Impedance |
53 Ohm |
|
Nom. Velocity of Prop. |
70% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
0°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
1.6 in |
|
Max. Pull Tension |
38 lbs (17 kg) |
|
Bulk Cable Weight |
24 lbs/1000ft |
