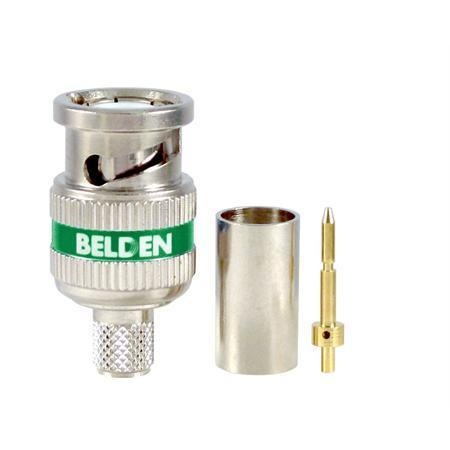

Belden 6 GHz RG6 RG7 RG8 BNC Connector (1694ABHD3)

Rs. 465.00





Technical Specifications:

Suitable Applications

HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Number of Pieces

3



Description

Material

Nut

Brass, Nickel Plated

Body

Brass, Nickel Plated

Contact

Brass, Gold Plated

Insulator

PTFE

Nominal Characteristic Impedance


75 Ohm




Frequency [MHz]

Minimum Return (RL)

5-1485

15 dB

1485-3000

10 dB

3000-6000

7 dB

Electrical Characteristics Notes

SMPTE 2081-1 Return Loss or better

Footprint/Type

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

HD

Color Band

Blue

Locking

No

Tool Compatibility

BB3PHCT (crimp)

Termination Type

Crimp

RG Type

6

Environmental Space

Indoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.

Notes

Also suitable for 1695A

Update and Revision

Revision Number: 0.118 Revision Date: 03-18-2021
