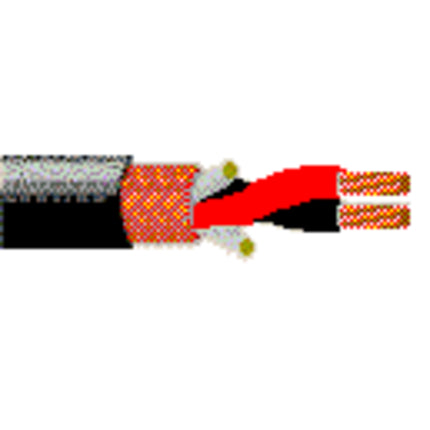

Belden Audio Cable 2 Conductor 24 AWG BC 1000Ft (1813A B591000)

Rs. 75,000.00

Audio Cable, CM-Rated, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket

Physical Characteristics (Overall):

CONDUCTOR

AWG

Stranding

Material

Nominal Diameter

No. of Pairs

24

27x38

BC - Bare Copper (High Conductivity)

0.0246 in

1

Conductor Count

2

Total Number of Pairs

1

INSULATION

Material

Nominal Diameter

Nominal Wall Thickness

PVC - Polyvinyl Chloride

0.059 in

0.017 in

COLOR CHART

Number

Color

1

Blue & Red

OUTER SHIELD MATERIAL

Type

Material

Coverage [%]

Spiral Serve / Screen

Bare Copper (BC)

90%

OUTER JACKET MATERIAL

Material

Nominal Diameter

Nominal Wall Thickness

PVC - Polyvinyl Chloride

0.236 in

0.055 in


Electrical Characteristics:

CONDUCTOR DCR

Nominal Conductor DCR

Nominal Conductor DCR Conductor Resistance

Nominal Outer Shield DCR

22.8 Ohm/1000ft

22.8 Ohm/1000ft

11.6 Ohm/1000ft

CAPACITANCE

Nom. Capacitance Conductor to Conductor

Nom. Capacitance Conductor to Other Conductor to Shield

33 pF/ft

61 pF/ft

INDUCTANCE

Nominal Inductance

0.219 µH/ft

VOLTAGE

Non-UL Voltage Rating

100 V RMS


Temperature Range:

Operating Temp Range

-30°C To +60°C


Mechanical Characteristics:

Bulk Cable Weight

30 lbs/1000ft

Max. Pull Tension

10 lbs

Min. Bend Radius/Minor Axis

2.5 in


Applicable Environmental and Other Programs:

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU RoHS Compliance Date (yyyy-mm-dd)

2005-04-01

MII Order #39 (China RoHS)

Yes


Suitability:

Suitability - Indoor

Yes


Plenum/Non-Plenum:

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.


History:

Update and Revision

Revision Number: 0.347 Revision Date: 07-12-2021
