Belden Audio/Control Cable (8761 0101000)

Rs. 2,000.00
This product is Out of stock

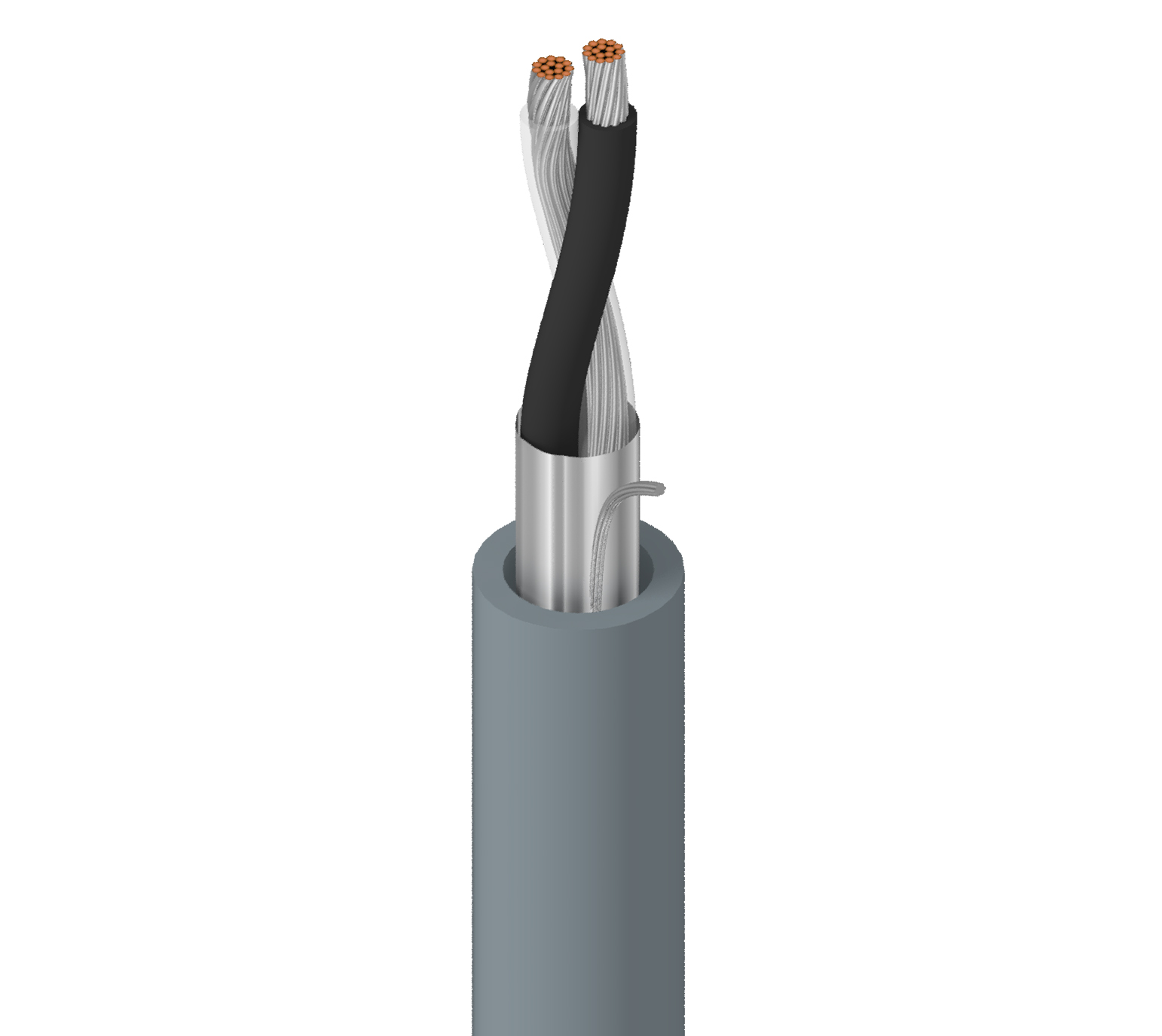

Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM

Product Overview:

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring



CONDUCTOR


Element

Pair(s)

Number of Element

1

AWG

22

Stranding

7x30

Material

TC - Tinned Copper



INSULATION


Element

Pair(s)

Material

PE - Polyethylene

Thickness

0.017 in (0.43 mm)

Color Code

Black, Clear



OUTER SHIELD MATERIAL


Outer Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

22 AWG (7x30) TC



OUTER JACKET MATERIAL


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.175 in

Thickness

0.025 in (0.64 mm)

Cable Diameter (Nominal)

0.175 in (4.45 mm)



ELECTRICALS


Element

Pair(s)

Nom. Conductor DCR

16 Ohm/1000ft (52 Ohm/km)

Nom. Capacitance Cond-to-Cond

24 pF/ft (79 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

47 pF/ft (150 pF/m)

Characteristic Impedence

64 Ohm

Max. Current

2.9 Amps per Conductor at 25ºC



VOLTAGE


UL Voltage Rating

300 V (CM), 300 V (UL AWM 2092))



TEMPERATURE


UL Rating

60°C (UL AWM 2092)

Operating

-20°C to +60°C



BEND RADIUS


Installation Min.

1.8 in (46 mm)

Stationary Min.

1.8 in (46 mm)

Bulk Cable Weight

16 lbs/1000ft (24 kg/km)

Max. Pull Tension

27 lbs (12 kg)
