Belden Audio Snake Cable #24-16pr (1514C)

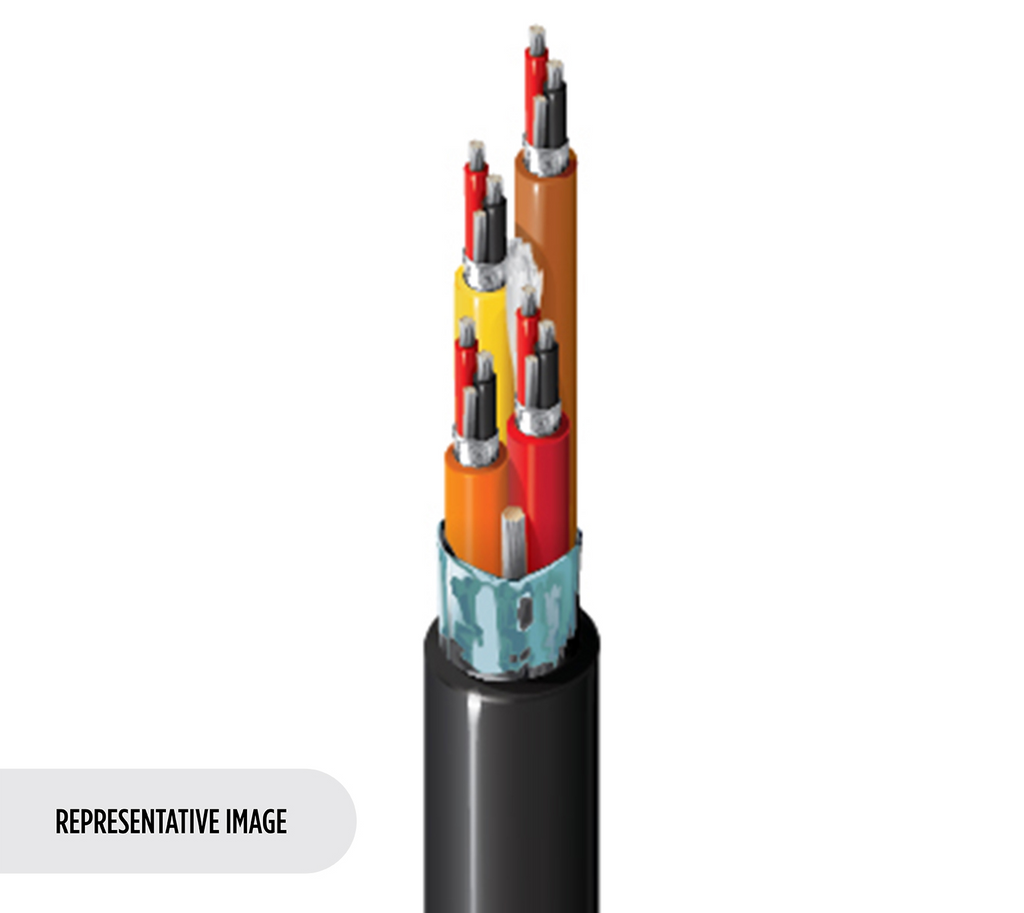

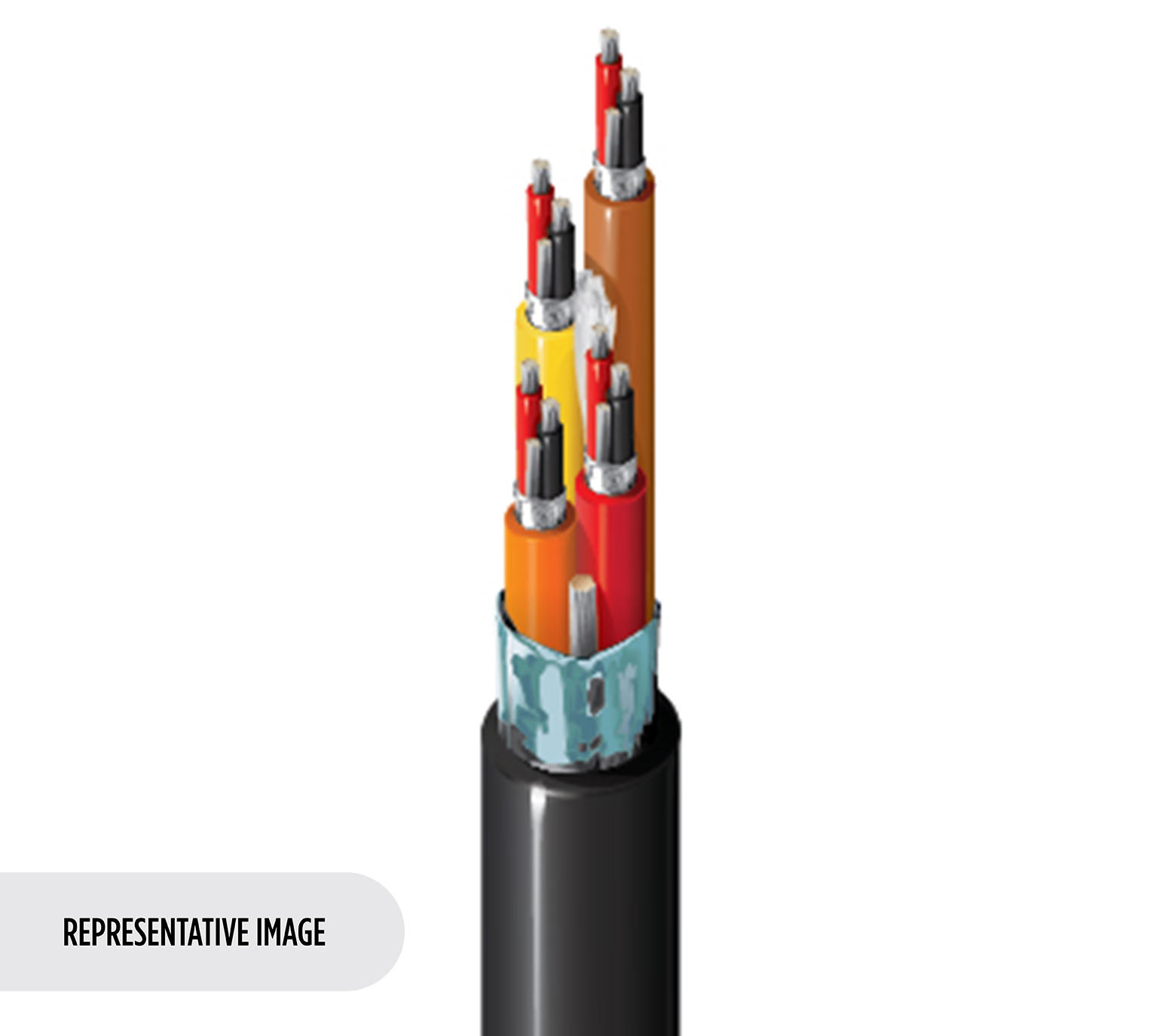

Audio Snake Cable, CM-Rated, 16-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Technical Specifications:
|
CONDUCTOR |
|
|
AWG |
24 |
|
Stranding |
7x32 |
|
Material |
TC - Tinned Copper |
|
Nominal Diameter |
0.024 in |
|
No. of Pairs |
16 |
|
Conductor Count |
32 |
|
Total Number of Pairs |
16 |
|
|
|
|
INSULATION |
|
|
Material |
PP - Polypropylene |
|
Nominal Diameter |
0.04 in |
|
Nominal Wall Thickness |
0.008 in |
|
|
|
|
COLOR CHART |
|
|
Number |
Color |
|
1 |
Brown |
|
2 |
Red |
|
3 |
Orange |
|
4 |
Yellow |
|
5 |
Green |
|
6 |
Blue |
|
7 |
Purple |
|
8 |
Gray |
|
9 |
White |
|
10 |
Black |
|
11 |
Tan |
|
12 |
Pink |
|
13 |
Gray/Brown |
|
14 |
Gray/Red |
|
15 |
Gray/Orange |
|
16 |
Gray/Yellow |
|
|
|
|
COLOR CHART 2 |
|
|
Color |
Red and Black |
|
|
|
|
INNER SHIELD |
|
|
Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Material Trade Name |
Beldfoil |
|
Coverage [%] |
100% |
|
Drainwire Material |
TC - Tinned Copper |
|
Drainwire Diameter |
0.024 in |
|
Drainwire AWG |
24 |
|
Drainwire Construction n x D |
7x32 |
|
|
|
|
INNER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.113 in |
|
Nominal Wall Thickness |
0.015 in |
|
|
|
|
OUTER SHIELD |
|
|
Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Material Trade Name |
Beldfoil |
|
Coverage [%] |
100% |
|
Drainwire Material |
TC - Tinned Copper |
|
Drainwire Diameter |
0.046 in |
|
Drainwire AWG |
18 |
|
Drainwire Construction n x D |
7x26 |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.628 in |
|
Nominal Wall Thickness |
0.056 in |
|
Ripcord |
Yes |
|
|
|
|
CONDUCTOR DCR |
|
|
Individual Pair Nominal Shield DCR |
15.9 Ohm/1000ft |
|
Nominal Conductor DCR |
23.3 Ohm/1000ft |
|
Nominal Conductor DCR Conductor Resistance |
23.3 Ohm/1000ft |
|
|
|
|
CAPACITANCE |
|
|
Nom. Capacitance Conductor to Conductor |
31 pF/ft |
|
Nom. Capacitance Conductor to Other Conductor to Shield |
58 pF/ft |
|
|
|
|
INDUCTANCE |
|
|
Nominal Inductance |
0.18 µH/ft |
|
|
|
|
IMPEDANCE |
|
|
Nominal Characteristic Impedance |
50 Ohm |
|
|
|
|
DELAY |
|
|
Nominal Velocity of Propagation (VP) [%] |
66% |
|
|
|
|
CURRENT |
|
|
Max. Recommended Current [A] |
1.05 Amps per Conductor at 25ºC |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V RMS |
|
|
|
|
Temperature Range |
|
|
Operating Temperature Range |
-35°C To +75°C |
|
|
|
|
Mechanical Characteristics |
|
|
Bulk Cable Weight |
225 lbs/1000ft |
|
Max. Pull Tension |
286.4 lbs |
|
Min. Bend Radius/Minor Axis |
6.5 in |
