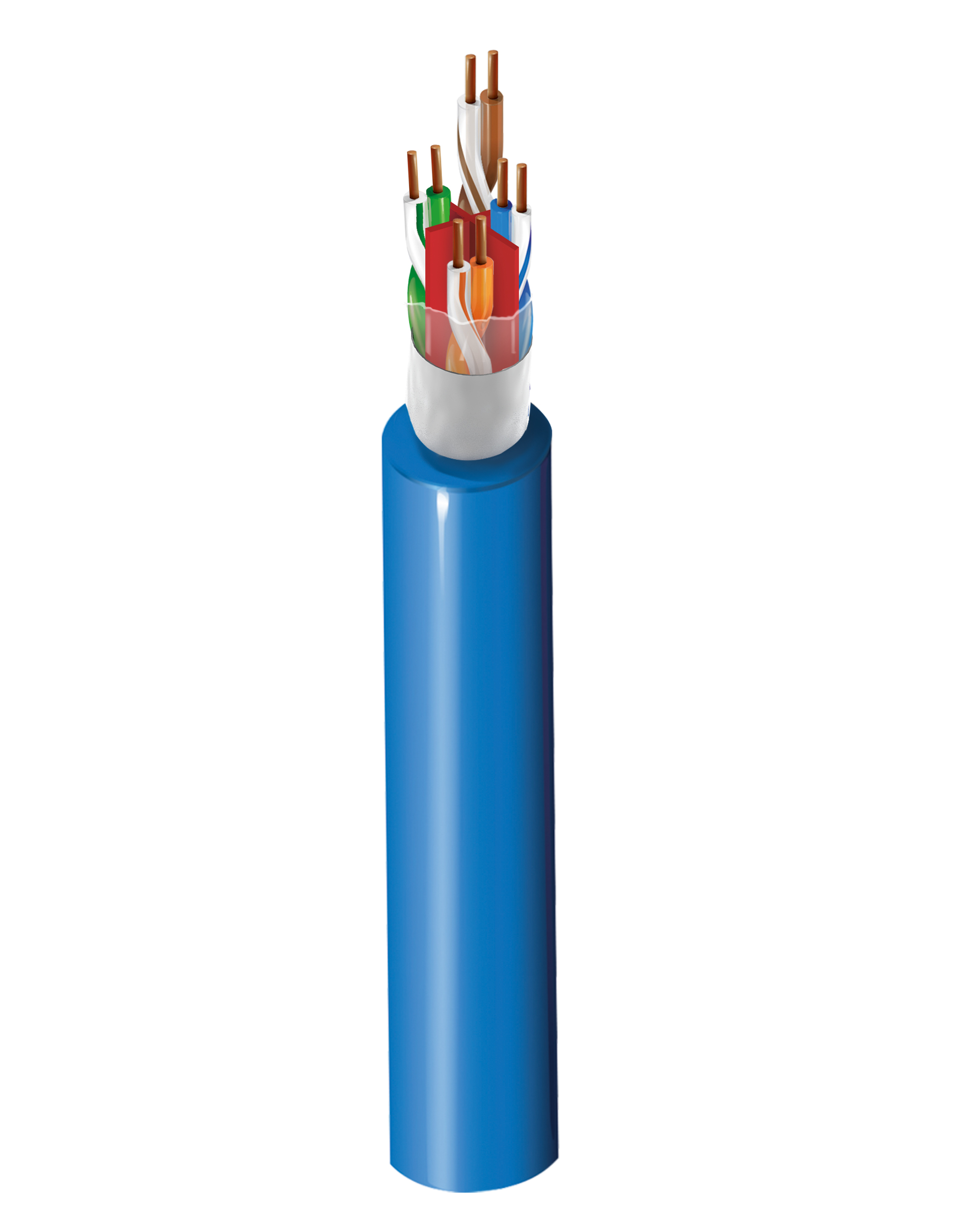

Belden CAT 6A 23AWG, U/UTP, LSZH Jkt, Indoor (10GA24)
23 AWG solid bare copper conductors, non-plenum, Polyethylene insulation, twisted pairs, central spline, overall cabling, special Barrier tape, LSZH jacket
Technical Specifications:
|
Suitable Applications |
Horizontal and building backbone Cable. Support current and future category 6A and 6 applications: such as 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T,ISDN, ATM as well as PoE application etc. |
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|
|
|
|
CONDUCTOR |
|
|
AWG |
23 |
|
Stranding |
Solid |
|
Material |
BC - Bare Copper |
|
No. of Pairs |
4 |
|
Total Number of Pairs |
4 |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene |
|
Bonded-Pair |
No |
|
|
|
|
COLOR CHART |
|
|
Number |
Color |
|
Pair #1 |
White & Blue |
|
Pair #2 |
White with Orange Stripe & Orange |
|
Pair #3 |
White with Green Stripe & Green |
|
Pair #4 |
White with Brown Stripe & Brown |
|
|
|
|
CABLING |
|
|
Filler |
Central Spline(Red color) |
|
|
|
|
OUTER JACKET |
|
|
Material |
LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|
Nominal Diameter |
7.2±0.3 mm |
|
Separator Material |
Barrier Tape |
|
|
|
|
Electrical Characteristics |
|
|
CONDUCTOR DCR |
|
|
Max. Conductor DCR |
80 Ohm/km at 20°C |
|
Max. DCR Unbalance |
2 % |
|
Max DCR Unbalanced Between Pairs [%] |
4 % |
|
|
|
|
CAPACITANCE |
|
|
Max. Capacitance Unbalance |
Nom.Mutual Capacitance |
|
160 pF/100m |
56 pF/m |
|
Operating Voltage |
72 V DC |
|
|
|
|
IMPEDANCE |
|
|
Nominal Characteristic Impedance |
100 Ohm |
|
|
|
|
DELAY |
|
|
Frequency [MHz] |
100 MHz |
|
Max. Delay Skew |
45 ns/100m |
|
Nominal Velocity of Propagation (VP) [%] |
67% |
|
|
|
|
Table Notes |
Jacket sequentially marked. Limits for 1MHz ,600MHz, 650MHz are for information only. |
|
|
|
|
Temperature Range |
|
|
Installation Temp Range |
0°C to +50°C |
|
Storage Temp Range |
-20°C to +60°C |
|
Operating Temp Range |
-20°C to +60°C |
|
|
|
|
Mechanical Characteristics |
|
|
Bulk Cable Weight |
52 kg/km |
|
Max. Pull Tension |
110 N |
|
Min. Bend Radius During Installation |
50 mm |
|
|
|
|
Standards |
|
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
ANSI/TIA 568.2-D |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
|
|
|
Applicable Environmental and Other Programs |
|
|
Environmental Space |
Indoor |
|
EU Directive Compliance |
Yes |
|
|
|
|
Suitability |
|
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
Yes |
|
|
|
|
Flammability, LS0H, Toxicity Testing |
|
|
IEC Flammability |
IEC 60332-1-2 |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
10 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
|
|
|
|
Plenum/Non-Plenum |
|
|
Plenum (Y/N) |
No |
