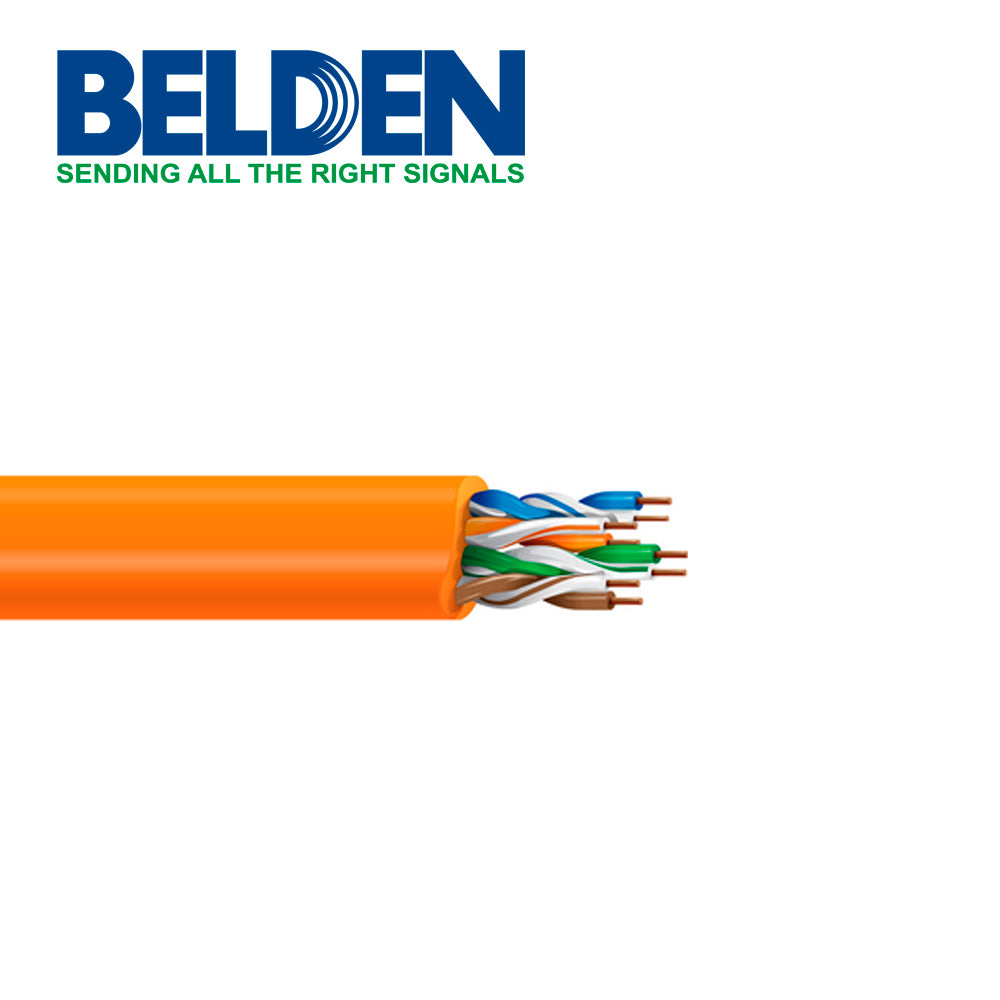

Belden CAT6+ 4-Bonded-pairs U/UTP-unshielded Cable (1875GB)

Rs. 16,000.00



CAT6+ (350MHz), 4-Bonded-pairs, U/UTP-unshielded, Riser-CMR, Premise Patch cable, 24 AWG Bonded stranded (7x32) tinned copper conductor, polyolefin insulation, PVC jacket

Technical Specifications:

Suitable Applications

Premise Patch Cable Designed for Attenuation Stability in High Humidity Environments, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, For T568-B Wiring



CONDUCTOR


AWG

24

Stranding

7x32

Material

TC - Tinned Copper

No. of Pairs

4

Conductor Count

8

Total Number of Pairs

4



INSULATION


Material

PO - Polyolefin

Bonded-Pair

Yes



COLOR CHART


Number

Color

1

White/Brown Stripe & Brown

2

White/Blue Stripe & Blue

3

White/Green Stripe & Green

4

White/Orange Stripe & Orange



OUTER JACKET


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.365 x 0.165 in

Ripcord

No



CONDUCTOR DCR


Max. Conductor DCR

90 Ohm/km

Max. DCR Unbalance

3 %



CAPACITANCE


Max. Capacitance Unbalance

49.2 pF/100m

Nom.Mutual Capacitance

15 pF/ft



DELAY


Frequency [MHz]

100 MHz

Max. Delay

537.6 ns/100m

Max. Delay Skew

25 ns/100m

Nominal Velocity of Propagation (VP) [%]

70%



VOLTAGE


UL Voltage Rating

300 V RMS



Temperature Range


Installation Temperature Range

0°C To +50°C

UL Temp Rating

75°C

Storage Temperature Range

-20°C To +75°C

Operating Temperature Range

-20°C To +75°C



Mechanical Characteristics


Bulk Cable Weight

28 lbs/1000ft

Max. Pull Tension

40 lbs

Min. Bend Radius During Installation

3.75 in

Min. Bend Radius/Minor Axis

0.5 in
