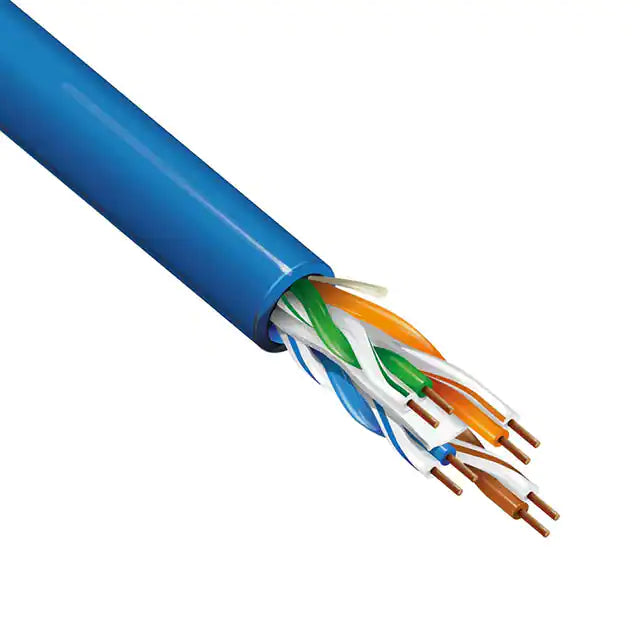

Belden Category 6+ Enhanced Premise Horizontal Cable 4 Pair 23 AWG (2412)
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
Technical Specifications:
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE |
|
|
|
|
CONDUCTOR |
|
|
Size |
23 AWG |
|
Stranding |
Solid |
|
Material |
BC - Bare Copper |
|
Number of Pairs |
4 |
|
|
|
|
INSULATION |
|
|
Material |
PO - Polyolefin |
|
Color Code |
White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
|
|
|
OUTER JACKET |
|
|
Separator |
Dielectric Tape (Patented) |
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.224 in (5.69 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.224 in (5.69 mm) |
|
|
|
|
ELECTRICALS |
|
|
Max. Conductor DCR |
78 Ohm/km (24 Ohm/1000ft) |
|
Max. Capacitance Unbalance |
330 pF/100m |
|
|
|
|
DELAY |
|
|
Frequency |
100 MHz |
|
Max. Delay |
537.6 ns/100m |
|
Max. Delay Skew |
35 ns/100m |
|
Nom. Velocity of Prop. |
70% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CMR) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-20°C To +75°C |
|
Installation |
0°C To +50°C |
|
Storage |
-20°C To +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
1.0 in (25 mm) |
|
Installation Min. |
2.25 in (57.2 mm) |
|
Max. Pull Tension |
25 lbs (11 kg) |
|
Bulk Cable Weight |
22 lbs/1000ft |
