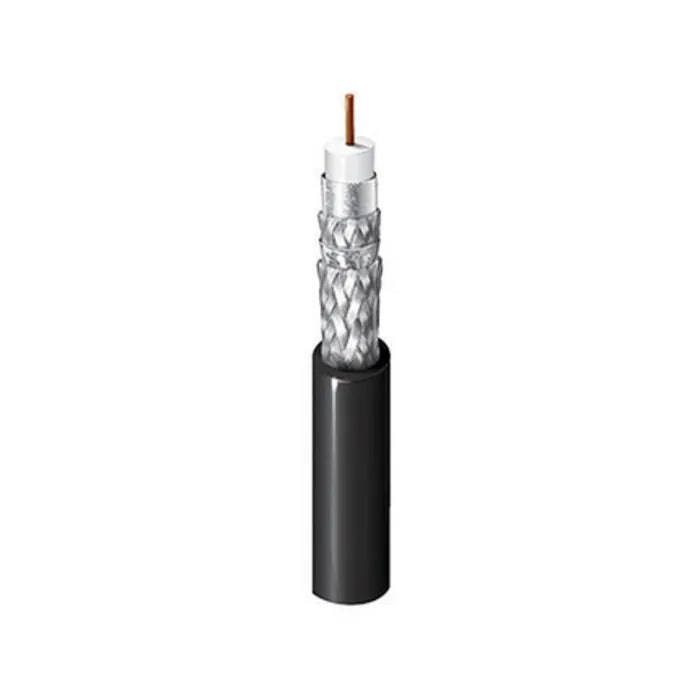

Belden Coax RG-6 18 AWG (Solid) Cable (3092A)
This product is Out of stock
Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam PE Insulation, Overall Duobond® II+Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, CMR
Technical Specifications:
|
Suitable Applications |
harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications |
|
RG Type |
6 |
|
|
|
|
CONDUCTOR |
|
|
Size |
18 AWG |
|
Stranding |
Solid |
|
Nom. Diameter |
0.040 in |
|
Material |
BCCS - Bare Copper Covered Steel |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Insulation Diameter |
0.180 in (4.57 mm) |
|
|
|
|
OUTER SHIELD |
|
|
Layer |
1 |
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duobond® II |
|
Coverage |
100% |
|
|
|
|
Layer |
2 |
|
Outer Shield Type |
Braid |
|
Material |
Aluminum |
|
Material Trade Name |
- |
|
Coverage |
60% |
|
|
|
|
Layer |
3 |
|
Outer Shield Type |
Tape |
|
Material |
Tri-Laminate (Alum+Poly+Alum) |
|
Material Trade Name |
Duofoil |
|
Coverage |
100% |
|
|
|
|
Layer |
4 |
|
Outer Shield Type |
Braid |
|
Material |
Aluminum |
|
Material Trade Name |
- |
|
Coverage |
40% |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.298 in (7.57 mm) |
|
Overall Cable Diameter (Nominal) |
0.298 in (7.57 mm) |
|
|
|
|
RETURN LOSS |
|
|
Frequency |
5 - 50 MHz |
|
Min. Structural Return Loss |
23 dB |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation |
|
1 MHz |
0.35 dB/100ft |
|
2 MHz |
0.38 dB/100ft |
|
5 MHz |
0.45 dB/100ft |
|
10 MHz |
0.59 dB/100ft |
|
20 MHz |
0.86 dB/100ft |
|
50 MHz |
1.37 dB/100ft |
|
100 MHz |
1.97 dB/100ft |
|
200 MHz |
2.82 dB/100ft |
|
300 MHz |
3.48 dB/100ft |
|
400 MHz |
4.04 dB/100ft |
|
|
|
|
ELECTRICALS |
|
|
Nom. Conductor DCR |
28 Ohm/1000ft (92 Ohm/km) |
|
Nom. Outer Shield DCR |
2.6 Ohm/1000ft (8.5 Ohm/km) |
|
Nom. Capacitance Cond-to-Shield |
16.2 pF/ft (53.1 pF/m) |
|
Nom. Characteristic Impedance |
75 Ohm |
|
Nom. Velocity of Prop. |
83% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CMR, CMG) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
3 in |
|
Max. Pull Tension |
118 lbs (53.5 kg) |
|
Bulk Cable Weight |
35 lbs/1000ft |
