Belden Digital Audio Cable 1 Pair 24 AWG (7 x 32) (1801B)
This product is Out of stock

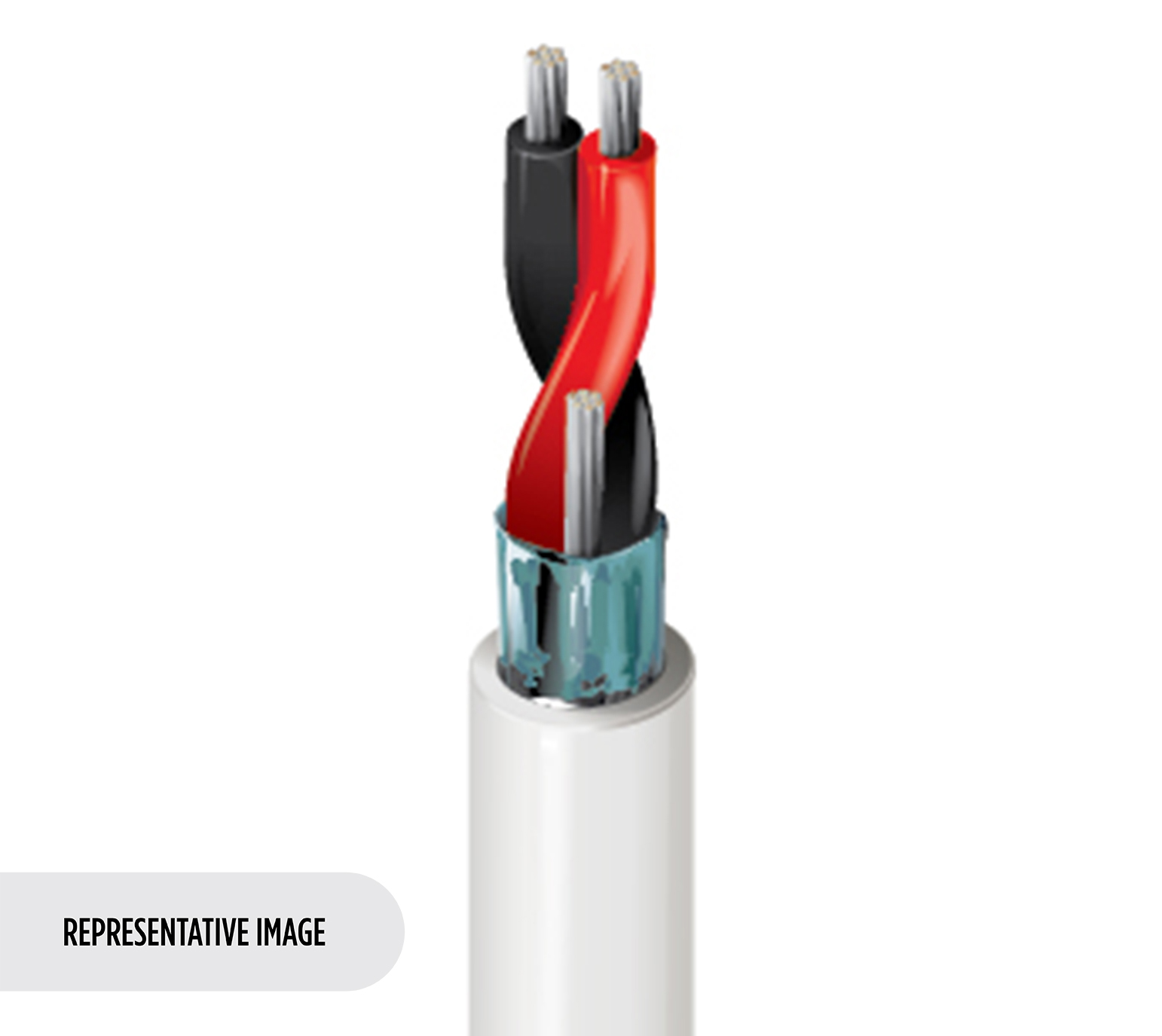

Digital Audio Cable, 1 Pair, 24 AWG (7 x 32) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP
Technical Specifications:
|
Suitable Applications |
Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
Size |
24 AWG |
|
Stranding |
7x32 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
FEP - Fluorinated Ethylene Propylene (Foam) |
|
Nom. Thickness |
0.021 in (0.53 mm) |
|
Nom. Insulation Diameter |
0.066 in (1.7 mm) |
|
Color Code |
Red & Black |
|
|
|
|
OUTER SHIELD |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.015 in (0.38 mm) |
|
Nom. Diameter |
0.165 in (4.19 mm) |
|
Overall Cable Diameter (Nominal) |
0.165 in (4.19 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
23.7 Ohm/1000ft (77.8 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
12 pF/ft (39 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
26 pF/ft (85 pF/m) |
|
Nom. Characteristic Impedence |
110 Ohm |
|
Nom. Velocity of Prop. |
78% |
|
Max. Current |
2.75 Amps per conductor @ 25°C |
|
|
|
|
UL Voltage Rating |
300 V (CMP) |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min |
1.7 in (43 mm) |
|
Installation Min. |
1.7 in (43 mm) |
|
Max. Pull Tension |
16.5 lbs (7.48 kg) |
|
Bulk Cable Weight |
12 lbs/1000ft (18 kg/km) |
