Belden Digital Mic Flexiable Cable (1800F G7XU1000)
This product is Out of stock

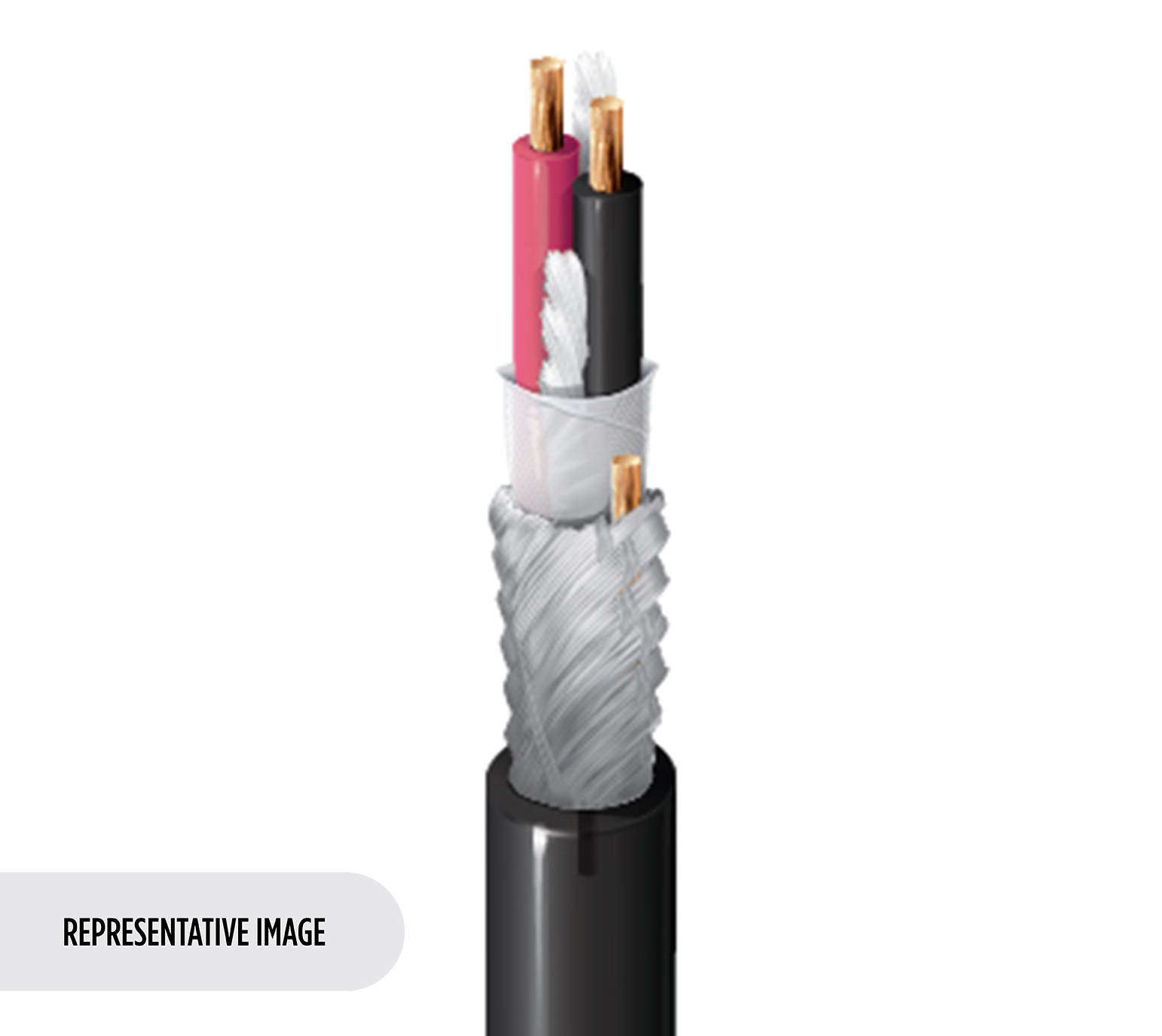

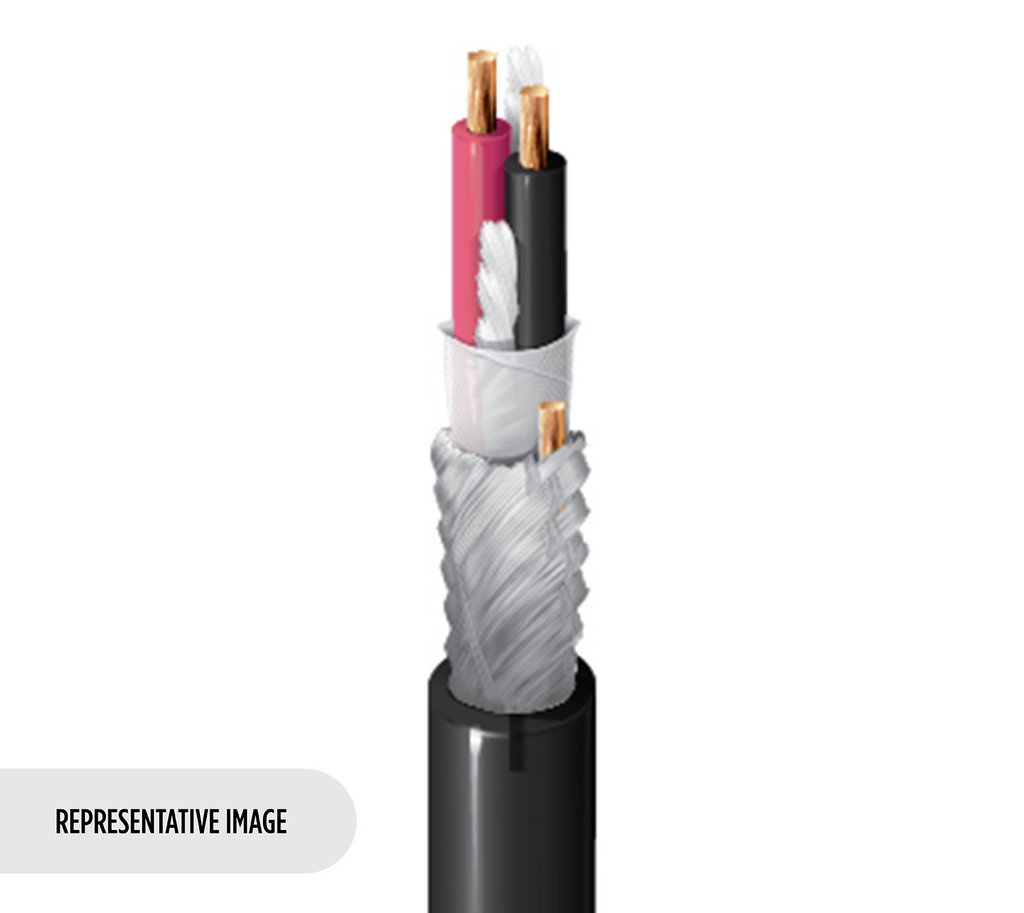

Digital Microphone Cable, 1 Pair 24 AWG (42x40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible
Product Overview:
|
Suitable Applications |
Digital microphone; Flexible interconnect cable for digital audio |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
24 |
|
Stranding |
42x40 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PE - Polyethylene (Foam) |
|
Thickness |
0.017 in (0.43 mm) |
|
Nom. Insulation Diameter |
0.058 in (1.5 mm) |
|
Color Code |
Red & Black |
|
Notes |
HDPE |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Outer Shield Type |
French Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
Drainwire Type |
26 AWG (30x40) BC |
|
Notes |
Paper tape under braid with drain over tape |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.211 in |
|
Thickness |
0.037 in (0.94 mm) |
|
Cable Diameter (Nominal) |
0.211 in |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
23.7 Ohm/1000ft (77.8 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
12 pF/ft (39 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
26 pF/ft (85 pF/m) |
|
Characteristic Impedence |
110 Ohm |
|
Max. Current |
2.75 Amps per conductor @ 25°C |
|
Nom. Velocity of Prop. |
76% |
|
Nom. Outer Shield DCR |
6.42 Ohm/1000ft |
|
|
|
|
TEMPERATURE |
|
|
Operating |
-20°C to +60°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.1 in (53 mm) |
|
Stationary Min. |
2.1 in (53 mm) |
|
Bulk Cable Weight |
23 lbs/1000ft (34 kg/km) |
|
Max. Pull Tension |
41.5 lbs (18.8 kg) |
