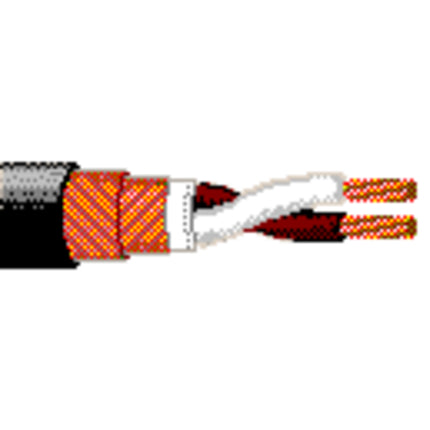

Belden Microphone Cable 2 Conductor 24 AWG BC (1812A B591000)

Rs. 7,000.00
This product is Out of stock



24 AWG stranded (42x40) high-conductivity BC conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC outer jacket.

Product Overview:

Suitable Applications

Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles



CONDUCTOR


AWG

24

Stranding

42x40

Material

TC - Tinned Copper

Nominal Diameter

0.024 in

No. of Elements

1

No. of Conductors

2



INSULATION


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.047 in

Nominal Wall Thickness

0.0115 in

INNER JACKET MATERIAL

PVC - Polyvinyl Chloride

Nominal Diameter

0.122 in

Nominal Wall Thickness

0.013 in

OUTER SHIELD MATERIAL type

Spiral Serve / Screen

Material

Bare Copper (BC)

Coverage [%]

95%

OUTER JACKET MATERIAL

PVC - Polyvinyl Chloride

Nominal Diameter

0.213 in

Nominal Wall Thickness

0.037 in



ELECTRICALS


Nominal Conductor DCR

23.3 Ohm/1000ft

Nominal Conductor DCR Conductor Resistance

23.3 Ohm/1000ft

Nominal Outer Shield DCR

5.3 Ohm/1000ft

Nom. Capacitance Conductor to Conductor

33 pF/ft

Nom. Capacitance Conductor to Other Conductor to Shield

54 pF/ft

Nominal Inductance

0.196 µH/ft

Non-UL Voltage Rating

100 V RMS

Non-UL Temp Rating

60°C

Operating Temp Range

-30°C To +60°C

Bulk Cable Weight

30 lbs/1000ft

Max. Pull Tension

10 lbs

Min. Bend Radius/Minor Axis

2.25 in

Suitability - Indoor

Yes

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.
