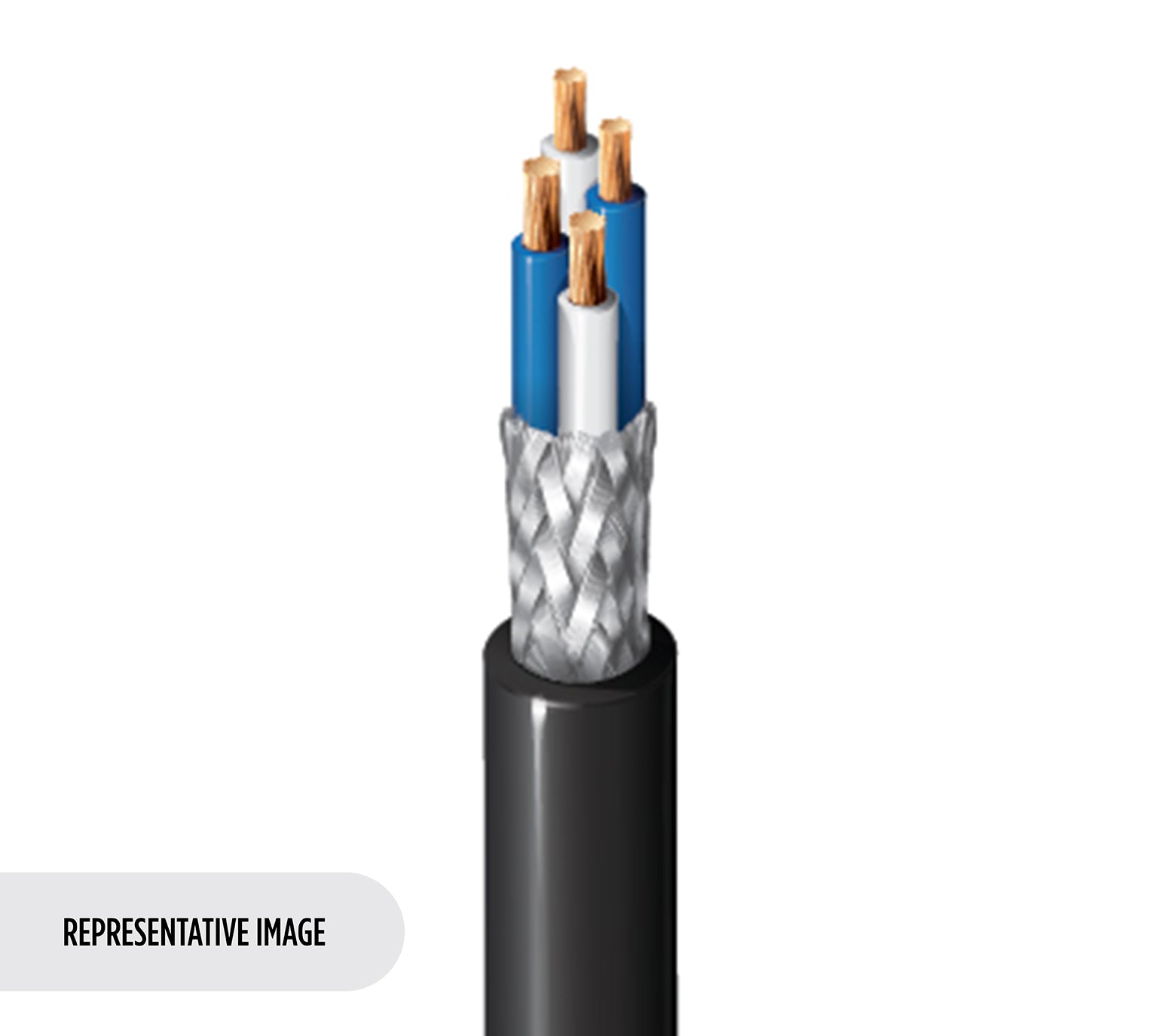

Belden Microphone Cable, Star Quad, 4 C #24 Str BC, 92% TC Braid, PVC Jkt (1192A)
Microphone Cable, Star Quad, 4 Conductor 24 AWG (42 x 40) High Conductivity Bare Copper, PE Insulation, 92% Tinned Copper Braid Shield, PVC Jacket
Technical Specifications:
|
Suitable Applications |
Microphone, Low Noise for high-EMI environments; Line level balanced analog audio |
|
|
|
|
CONDUCTOR |
|
|
Element |
Conductor(s) |
|
Number of Element |
4 |
|
Size |
24 AWG |
|
Stranding |
42x40 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Conductor(s) |
|
Material |
PE - Polyethylene |
|
Nom. Thickness |
0.016 in (0.41 mm) |
|
Nom. Insulation Diameter |
0.056 in (1.4 mm) |
|
Color Code |
Blue, White, Blue/White Stripe, White/Blue Stripe |
|
|
|
|
OUTER SHIELD |
|
|
Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
92% |
|
Notes |
Paper tape under braid |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.044 in (1.1 mm) |
|
Nom. Diameter |
0.245 in (6.22 mm) |
|
Overall Cable Diameter (Nominal) |
0.245 in (6.22 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Conductor(s) |
|
Nom. Conductor DCR |
26.6 Ohm/1000ft (87.3 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
39.2 pF/ft (129 pF/m) |
|
Nom. Characteristic Impedence |
40 Ohm |
|
Nom. Velocity of Prop. |
66% |
|
Max. Current |
2.9 Amps per conductor @ 25°C |
|
Voltage Rating |
100 V |
|
|
|
|
TEMPERATURE |
|
|
Operating |
-30°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
2.5 in (64 mm) |
|
Installation Min. |
2.5 in (64 mm) |
|
Max. Pull Tension |
21 lbs (9.5 kg) |
|
Bulk Cable Weight |
33 lbs/1000ft (49 kg/km) |
|
|
|
|
Standards and Compliance |
|
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
