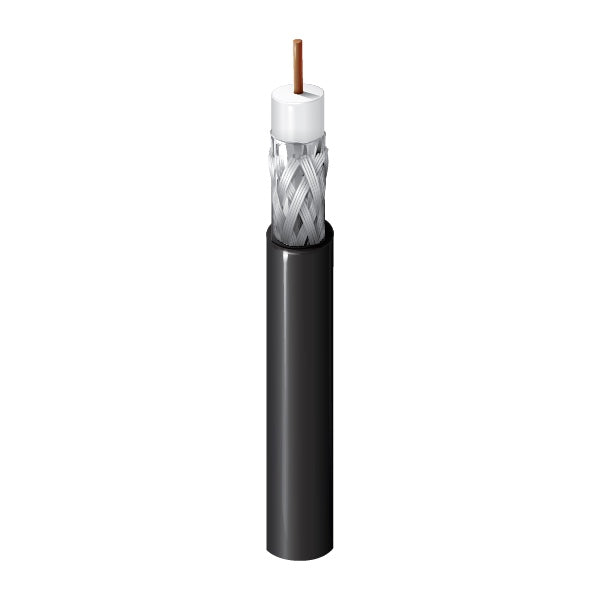

Belden Mini Video Cable RG59 Spool Green (1855A N3U1000)

Rs. 4,800.00
This product is Out of stock





75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR

Product Overview:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p



Construction Details


RG Type

Mini 59




CONDUCTOR


AWG

23

Stranding

Solid

Material

BC - Bare Copper

Nom. Diameter

0.023 in



INSULATION


Material

PE - Polyethylene (Foam)

Nom. Diameter

0.102 in



ATTENUATION


Frequency

Nom. Attenuation [dB/100ft]

1 MHz

0.39 dB/100ft

3.58 MHz

0.78 dB/100ft

5 MHz

0.92 dB/100ft

6 MHz

1.00 dB/100ft

7 MHz

1.08 dB/100ft

10 MHz

1.2 dB/100ft

12 MHz

1.3 dB/100ft

25 MHz

1.8 dB/100ft

67.5 MHz

2.83 dB/100ft

71.5 MHz

2.93 dB/100ft

88.5 MHz

3.22 dB/100ft

100 MHz

3.39 dB/100ft

135 MHz

3.84 dB/100ft

143 MHz

4.00 dB/100ft

180 MHz

4.41 dB/100ft

270 MHz

5.44 dB/100ft

360 MHz

6.34 dB/100ft

540 MHz

7.85 dB/100ft

720 MHz

9.15 dB/100ft

750 MHz

9.31 dB/100ft

1000 MHz

10.89 dB/100ft

1500 MHz

13.38 dB/100ft

2000 MHz

15.64 dB/100ft

2250 MHz

16.68 dB/100ft

3000 MHz

19.65 dB/100ft

4500 MHz

24.35 dB/100ft

6000 MHz

28.97 dB/100ft



OUTER SHIELD MATERIAL


Layer 1


Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil®

Coverage

100%



Layer 2


Outer Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

95%



OUTER JACKET MATERIAL


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.159 in



ELECTRICALS


RETURN LOSS


Frequency [MHz]

Min. Return Loss [dB]

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 6000 MHz

15 dB



Nom. Conductor DCR

20.1 Ohm/1000ft

Nom. Outer Shield DCR

3.7 Ohm/1000ft

Nom. Capacitance Cond-to-Shield

16.3 pF/ft

Nom. Impedence

75 Ohm

Nom. Velocity

82%



VOLTAGE


UL Voltage Rating

300 V (CMR, CMG)



TEMPERATURE


UL Rating

75°C

Operating

-30°C to +75°C



BEND RADIUS


Installation Min.

1.6 in

Bulk Cable Weight

17 lbs/1000ft

Max. Pull Tension

33 lbs
