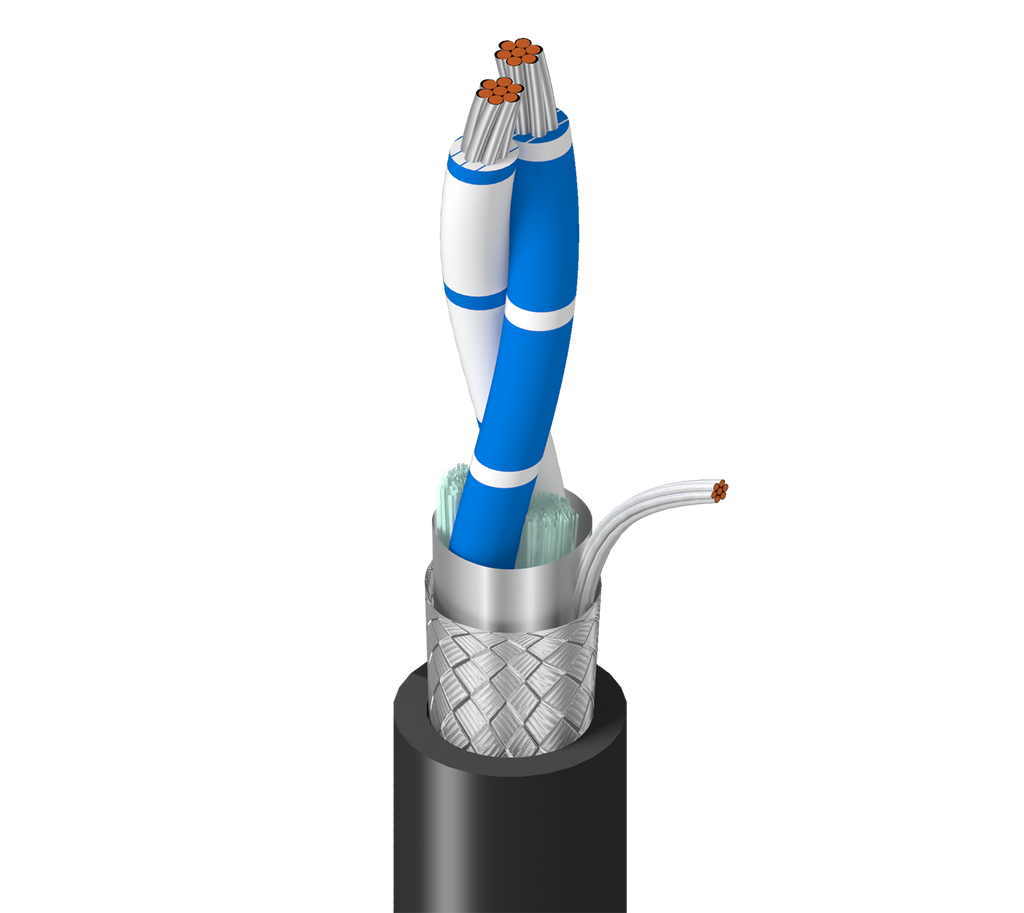

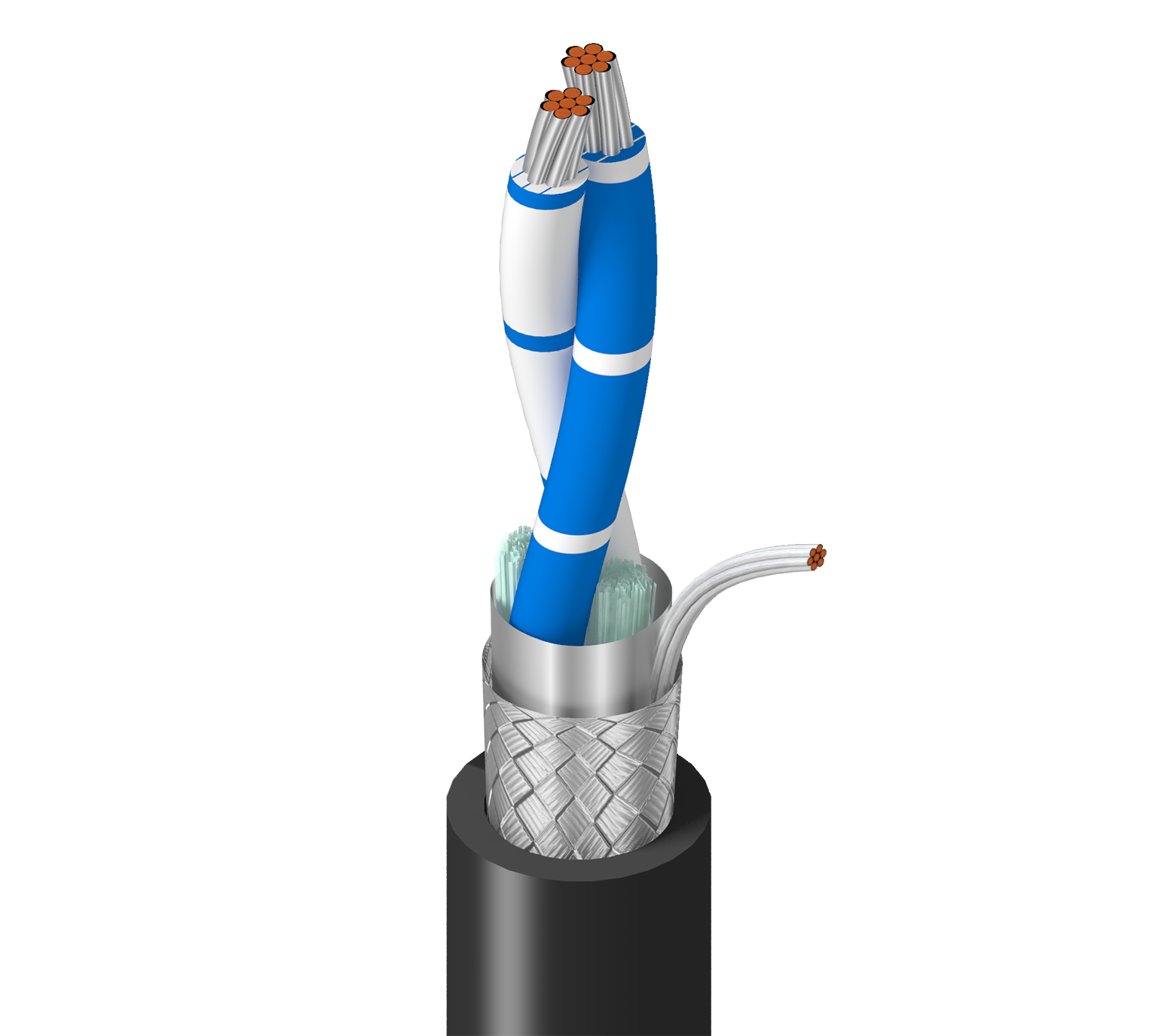

Belden RS485 2Core Control/DMX (3105A)
RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES and oil-resistant
Product Overview:
|
Suitable Applications |
harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
22 |
|
Stranding |
7x30 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PE - Polyethylene (Foam) |
|
Thickness |
0.029 in |
|
Nom. Insulation Diameter |
0.087 |
|
Color Code |
White/Blue Stripe & Blue/White Stripe |
|
Notes |
HDPE |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Outer Shield Type |
Tape + Braid |
|
Material |
Bi-Laminate (Alum+Poly) + Tinned Copper (TC) |
|
Coverage |
100% + 65% |
|
Drainwire Type |
22 AWG (7x30) TC |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.281 in |
|
Thickness |
0.041 in |
|
Cable Diameter (Nominal) |
0.281 in |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
14.7 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Cond |
11 pF/ft |
|
Max. Current |
2.7 Amps per Conductor at 25ºC |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
20.9 pF/ft |
|
Characteristic Impedence |
120 Ohm |
|
Nom. Velocity of Prop. |
78% |
|
Nom. Outer Shield DCR |
2.8 Ohm/1000ft |
|
|
|
|
HIGH FREQUENCY (NOMINAL/TYPICAL) |
|
|
Element |
Pair(s) |
|
Frequency [MHz] |
1 MHz |
|
Nom. Insertion Loss |
0.5 dB/100ft |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM, PLTC) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
60°C |
|
Operating |
-20°C to +60°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
6.0 in |
|
Stationary Min. |
6.0 in |
|
Bulk Cable Weight |
43 lbs/1000ft |
|
Max. Pull Tension |
200 lbs |
