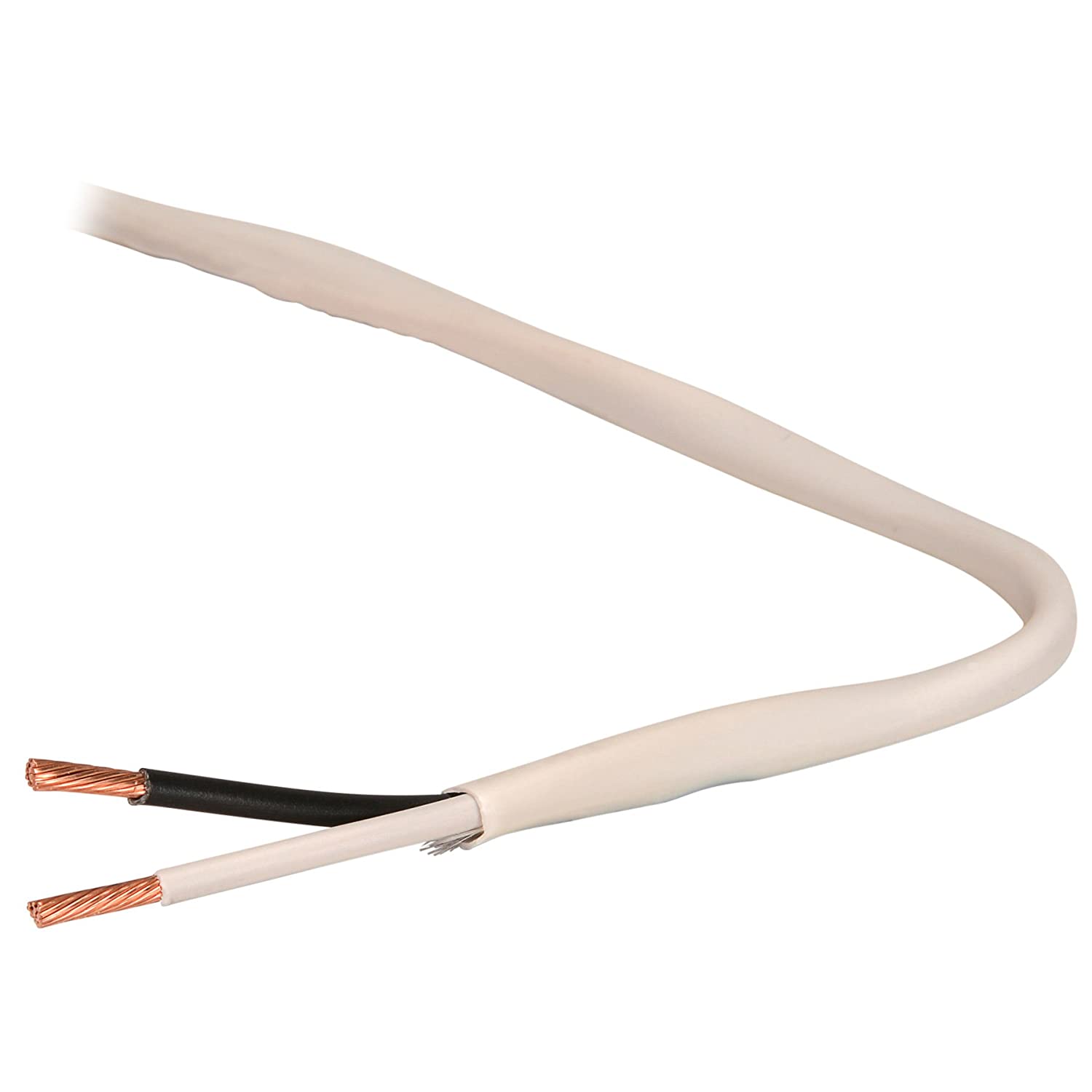

Belden Security & Commercial Audio Cable 2 Conductor 14 AWG (6100UE)
Security & Commercial Audio Cable, Plenum-CL2P, 2 Conductor 14 AWG stranded (19x27) bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
Technical Specifications:
|
Suitable Applications |
Intercom/PA Systems, Sound/Audio Systems |
|
|
|
|
CONDUCTOR |
|
|
Element |
Conductor(s) |
|
Number of Element |
2 |
|
Size |
14 AWG |
|
Stranding |
19x26 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Conductor(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.010 in (0.25 mm) |
|
Color Code |
Black, White |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.015 in (0.38 mm) |
|
Nom. Diameter |
0.210 in (5.33 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.210 in (5.33 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Conductor(s) |
|
Nom. Conductor DCR |
2.53 Ohm/1000ft (8.30 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
36 pF/ft (120 pF/m) |
|
Max. Current |
8 Amps per conductor @ 25°C |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-10°C to +75°C |
|
Installation |
0°C To +75 |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
2.1 in (53 mm) |
|
Installation Min. |
2.1 in (53 mm) |
|
Max. Pull Tension |
95 lbs (43 kg) |
|
Bulk Cable Weight |
35 lbs/1000ft (52 kg/km) |
