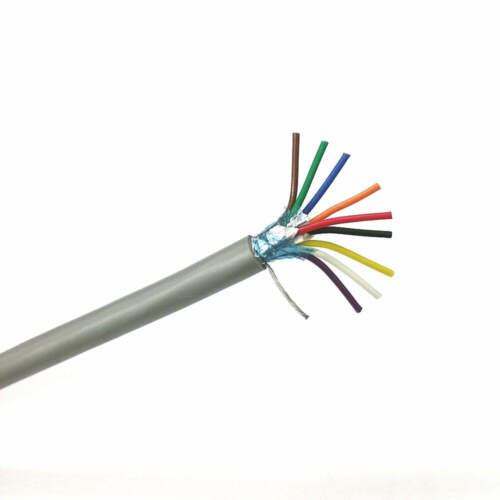

Belden Security & Sound 8-22 AWG Cable (5506FE)
Security & Sound Cable, Riser-CMR, 8-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Technical Specifications:
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment |
|
|
|
|
CONDUCTOR |
|
|
Element |
Conductor(s) |
|
Number of Element |
8 |
|
Size |
22 AWG |
|
Stranding |
7x30 |
|
Material |
BC - Bare Copper |
|
|
|
|
INSULATION |
|
|
Element |
Conductor(s) |
|
Material |
PP - Polypropylene |
|
Nom. Thickness |
0.008 in (0.20 mm) |
|
Nom. Insulation Diameter |
0.045 in (1.1 mm) |
|
Color Code |
Black, Red, White, Green, Brown, Blue, Orange, Yellow |
|
|
|
|
OUTER SHIELD |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
24 AWG (7x32) TC |
|
|
|
|
OUTER JACKET |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.018 in (0.46 mm) |
|
Nom. Diameter |
0.187 in (4.75 mm) |
|
Ripcord |
Yes |
|
Overall Cable Diameter (Nominal) |
0.187 in (4.75 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Conductor(s) |
|
Nom. Conductor DCR |
16.9 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Cond |
22.5 pF/ft (73.8 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
40.5 pF/ft (133 pF/m) |
|
Max. Current |
4.2 Amps per Conductor @ 25°C |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V |
|
|
|
|
TEMPERATURE |
|
|
UL Temperature |
75°C |
|
Operating |
-20°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
1.9 in (48 mm) |
|
Installation Min. |
1.9 in (48 mm) |
|
Max. Pull Tension |
78 lbs (35 kg) |
|
Bulk Cable Weight |
27 lbs/1000ft |
