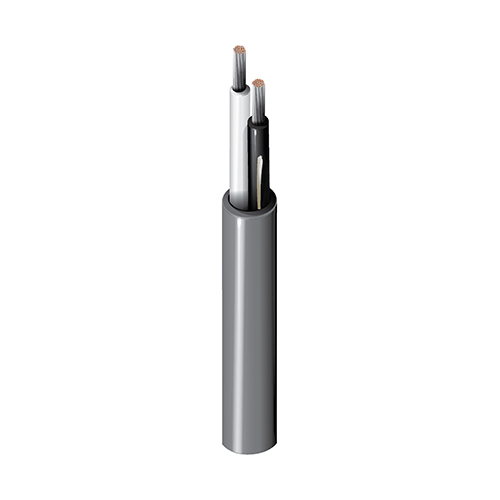

Belden Speaker Cable 14AWG (8473 0601000)
Electronic, 2 Conductor 14AWG (42x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3
Product Overview:
|
Suitable Applications |
up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
14 |
|
Stranding |
42x30 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Thickness |
0.032 in (0.81 mm) |
|
Color Code |
Black & White |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Thickness |
0.040 in (1.0 mm) |
|
Nom. Diameter |
0.356 in |
|
Cable Diameter (Nominal) |
0.356 in (9.04 mm) |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
2.86 Ohm/1000ft (9.38 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
22 pF/ft (72 pF/m) |
|
Max. Current |
9.6 Amps per Conductor at 25ºC (10°C Temperature Rise) |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CL3), 600 V (UL AWM 2587) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
60°C (UL AWM 2598) |
|
Operating |
-20°C To +90°C |
|
|
|
|
BEND RADIUS |
|
|
Stationary Min. |
3.6 in (91 mm) |
|
Installation Min. |
3.6 in (91 mm) |
|
Max. Pull Tension |
94 lbs (43 kg) |
|
Bulk Cable Weight |
58 lbs/1000ft (86 kg/km) |
|
Environmental Suitability |
Indoor |
