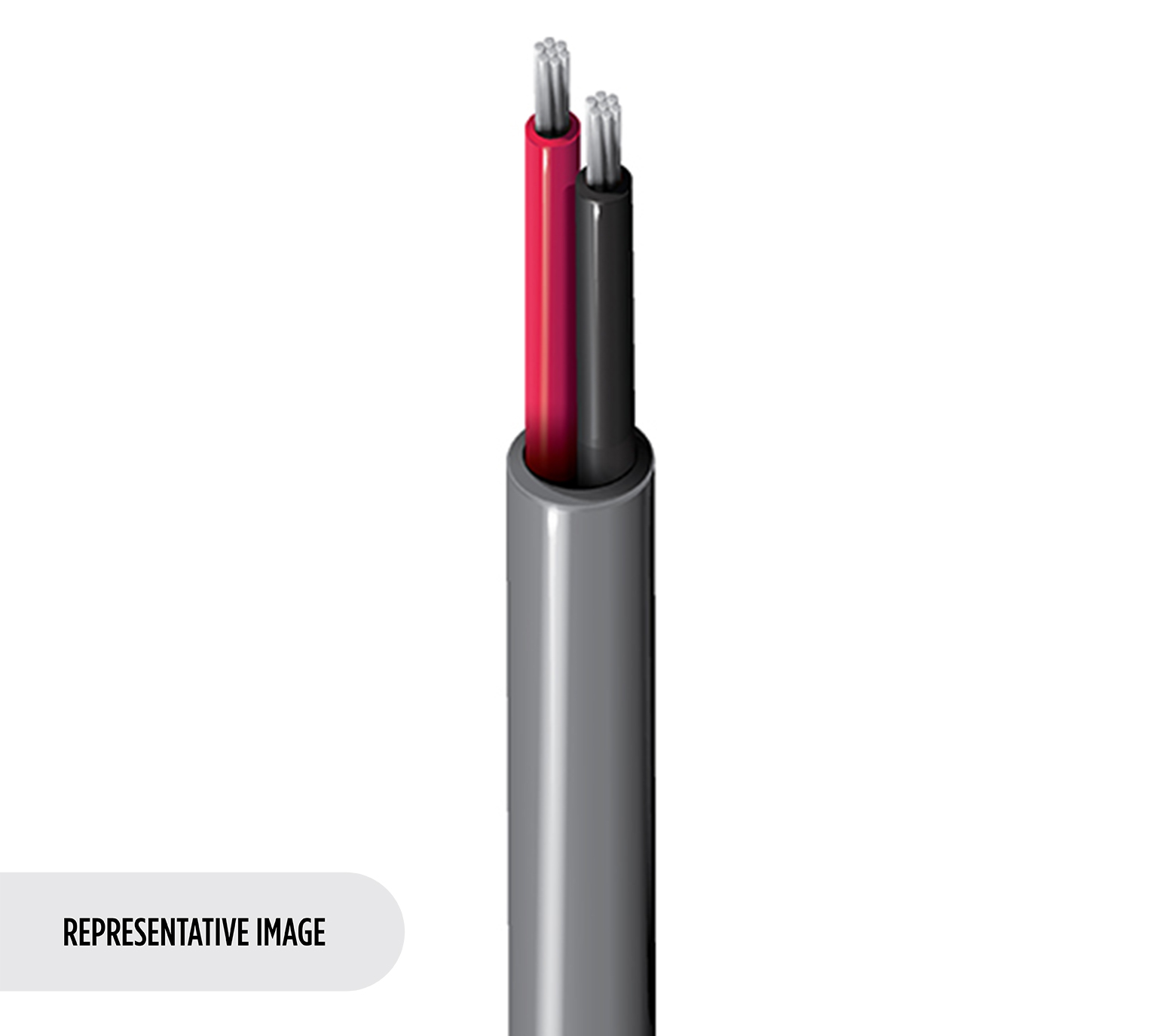

Belden Speaker Cable 18AWG (8461 0601000)
This product is Out of stock
Electronic, 2 Conductor 18AWG (7x26) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Product Overview:
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|
|
|
|
CONDUCTOR |
|
|
Element |
Pair(s) |
|
Number of Element |
1 |
|
AWG |
18 |
|
Stranding |
7x26 |
|
Material |
TC - Tinned Copper |
|
|
|
|
INSULATION |
|
|
Element |
Pair(s) |
|
Material |
PVC - Polyvinyl Chloride |
|
Thickness |
0.022 in (0.56 mm) |
|
Color Code |
Black & White |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.234 in |
|
Thickness |
0.027 in (0.69 mm) |
|
Cable Diameter (Nominal) |
0.234 in |
|
|
|
|
ELECTRICALS |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
5.86 Ohm/1000ft (19.2 Ohm/km) |
|
Nom. Capacitance Cond-to-Cond |
22 pF/ft (72 pF/m) |
|
Max. Current |
4.8 Amps per Conductor at 20ºC |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CMG), 300 V (CL3) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
-20°C to +80°C |
|
Operating |
-20°C to +80°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.3 in (58 mm) |
|
Stationary Min. |
2.3 in (58 mm) |
|
Bulk Cable Weight |
26 lbs/1000ft (39 kg/km) |
|
Max. Pull Tension |
45 lbs (20 kg) |
