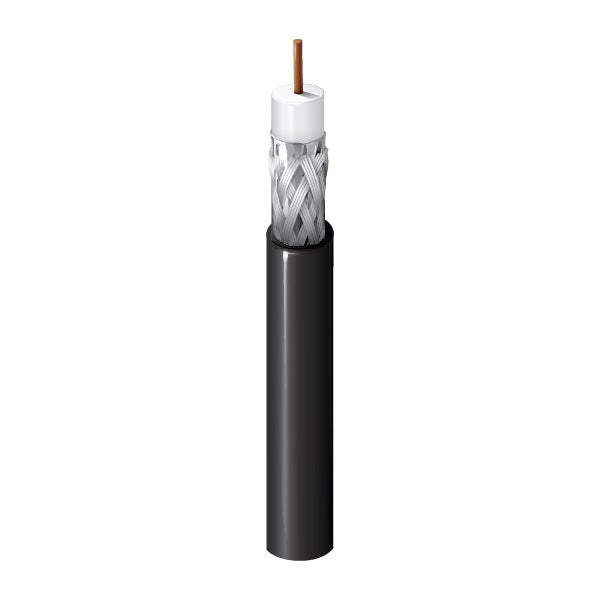

Belden Video Cable RG59 (1505A 0101000)

Rs. 5,000.00





75 Ohm SDI Coax, RG-59, 20 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR


Product Overview:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p



Construction Details


RG Type

59



CONDUCTOR


AWG

20

Stranding

Solid

Material

BC - Bare Copper

Nom. Diameter

0.032 in



INSULATION


Material

PE - Polyethylene (Foam)

Nom. Diameter

0.145 in



ATTENUATION


Frequency

Nom. Attenuation [dB/100ft]

1 MHz

0.3 dB/100ft

3.58 MHz

0.6 dB/100ft

5 MHz

0.63 dB/100ft

6 MHz

0.69 dB/100ft

7 MHz

0.74 dB/100ft

10 MHz

0.9 dB/100ft

12 MHz

0.91 dB/100ft

25 MHz

1.3 dB/100ft

67.5 MHz

2.05 dB/100ft

71.5 MHz

2.1 dB/100ft

88.5 MHz

2.2 dB/100ft

100 MHz

2.3 dB/100ft

135 MHz

2.7 dB/100ft

143 MHz

2.8 dB/100ft

180 MHz

3.1 dB/100ft

270 MHz

3.8 dB/100ft

360 MHz

4.4 dB/100ft

540 MHz

5.5 dB/100ft

720 MHz

6.4 dB/100ft

750 MHz

6.5 dB/100ft

1000 MHz

7.6 dB/100ft

1500 MHz

9.5 dB/100ft

2000 MHz

11.2 dB/100ft

2250 MHz

11.9 dB/100ft

3000 MHz

14.0 dB/100ft

4500 MHz

17.5 dB/100ft

6000 MHz

21.1 dB/100ft



OUTER SHIELD MATERIAL


Layer 1


Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil®

Coverage

100%



Layer 2


Outer Shield Type

Braid

Material

Tinned Copper (TC)

Material Trade Name

-

Coverage

95%



OUTER JACKET MATERIAL


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.233 in



ELECTRICALS


RETURN LOSS


Frequency [MHz]

Min. Return Loss [dB]

5 - 1600 MHz

23 dB

1600 - 4500 MHz

21 dB

4500 - 6000 MHz

15 dB



Nom. Conductor DCR

10 Ohm/1000ft

Nom. Outer Shield DCR

3.8 Ohm/1000ft

Nom. Capacitance Cond-to-Shield

16.3 pF/ft

Nom. Impedence

75 Ohm

Nom. Velocity

82%



VOLTAGE


UL Voltage Rating

300 V (CMR, CMG)



TEMPERATURE


UL Rating

60°C

Operating

-20°C to +75°C



BEND RADIUS


Installation Min.

2.3 in

Bulk Cable Weight

31 lbs/1000ft

Max. Pull Tension

52 lbs
