Belden Video Cable RG8 1000Ft/305Mtr (1694F B591000)

Rs. 150,000.00

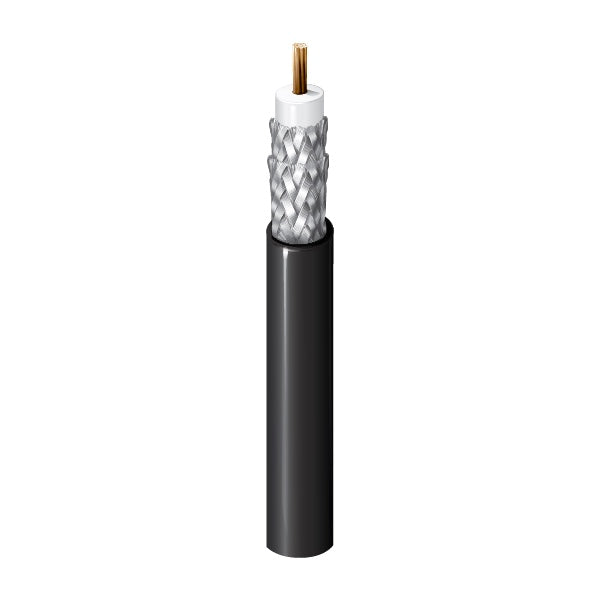

75 Ohm SDI Coax, RG-8, 19 AWG (7x27) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible

Product Overview:

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p



Construction Details


RG Type

8




CONDUCTOR


AWG

19

Stranding

7x27

Material

BC - Bare Copper

Nom. Diameter

0.041 in



INSULATION


Material

PE - Polyethylene (Foam)

Nom. Diameter

0.180 in



ATTENUATION


Frequency

Nom. Attenuation [dB/100ft]

1 MHz

0.24 dB/100ft

3.58 MHz

0.45 dB/100ft

5 MHz

0.54 dB/100ft

6 MHz

0.55 dB/100ft

7 MHz

0.62 dB/100ft

10 MHz

0.72 dB/100ft

12 MHz

0.83 dB/100ft

25 MHz

1.18 dB/100ft

55 MHz

1.76 dB/100ft

67.5 MHz

1.9 dB/100ft

71.5 MHz

2.0 dB/100ft

88.5 MHz

2.2 dB/100ft

100 MHz

2.4 dB/100ft

135 MHz

2.8 dB/100ft

143 MHz

2.9 dB/100ft

180 MHz

3.3 dB/100ft

270 MHz

4.0 dB/100ft

360 MHz

4.7 dB/100ft

540 MHz

5.9 dB/100ft

720 MHz

6.9 dB/100ft

750 MHz

7.1 dB/100ft

1000 MHz

8.4 dB/100ft

1500 MHz

10.6 dB/100ft

2000 MHz

12.5 dB/100ft

2250 MHz

13.4 dB/100ft

3000 MHz

15.9 dB/100ft

4500 MHz

20.6 dB/100ft

6000 MHz

28.7 dB/100ft



OUTER SHIELD MATERIAL


Layer 1


Outer Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

95%



Layer 2


Outer Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

95%



OUTER JACKET MATERIAL


Material

PVC - Polyvinyl Chloride

Nominal Diameter

0.276 in



ELECTRICALS


RETURN LOSS


Frequency [MHz]

Min. Return Loss [dB]

5 - 850 MHz

20 dB

850 - 6000 MHz

15 dB



Nom. Conductor DCR

8.5 Ohm/1000ft

Nom. Outer Shield DCR

1.7 Ohm/1000ft

Nom. Capacitance Cond-to-Shield

17 pF/ft

Nom. Impedence

75 Ohm

Nom. Velocity

80%



VOLTAGE


UL Voltage Rating

300 V (CM)



TEMPERATURE


UL Rating

60°C

Operating

-35°C to +75°C



BEND RADIUS


Installation Min.

2.75 in

Bulk Cable Weight

50 lbs/1000ft

Max. Pull Tension

90 lbs
