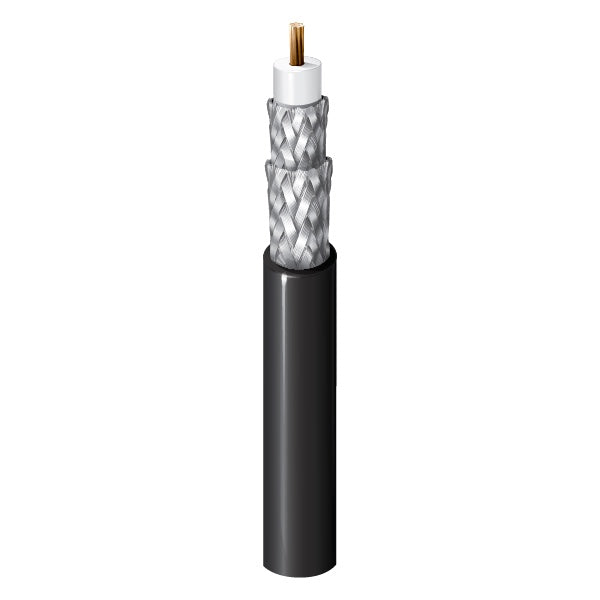

Belden Video Flexible Cable RG59 (1505F B591000)
75 Ohm SDI Coax, RG-59, 22 AWG (7x29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible
Product Overview:
|
Suitable Applications |
Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p |
|
|
|
|
Construction Details |
|
|
RG Type |
59 |
|
|
|
|
CONDUCTOR |
|
|
AWG |
22 |
|
Stranding |
7x29 |
|
Material |
BC - Bare Copper |
|
Nom. Diameter |
0.032 in |
|
|
|
|
INSULATION |
|
|
Material |
PE - Polyethylene (Foam) |
|
Nom. Diameter |
0.145 in |
|
|
|
|
ATTENUATION |
|
|
Frequency |
Nom. Attenuation [dB/100ft] |
|
1 MHz |
0.2 dB/100ft |
|
3.58 MHz |
0.5 dB/100ft |
|
5 MHz |
0.6 dB/100ft |
|
6 MHz |
0.67 dB/100ft |
|
7 MHz |
0.73 dB/100ft |
|
10 MHz |
0.9 dB/100ft |
|
12 MHz |
0.98 dB/100ft |
|
25 MHz |
1.44 dB/100ft |
|
55 MHz |
2.2 dB/100ft |
|
67.5 MHz |
2.4 dB/100ft |
|
71.5 MHz |
2.5 dB/100ft |
|
88.5 MHz |
2.8 dB/100ft |
|
100 MHz |
3 dB/100ft |
|
135 MHz |
3.5 dB/100ft |
|
143 MHz |
3.6 dB/100ft |
|
180 MHz |
4.1 dB/100ft |
|
270 MHz |
5.1 dB/100ft |
|
360 MHz |
6 dB/100ft |
|
540 MHz |
7.5 dB/100ft |
|
720 MHz |
8.9 dB/100ft |
|
750 MHz |
9.1 dB/100ft |
|
1000 MHz |
10.8 dB/100ft |
|
1500 MHz |
13.6 dB/100ft |
|
2000 MHz |
16.1 dB/100ft |
|
2250 MHz |
17.3 dB/100ft |
|
3000 MHz |
20.7 dB/100ft |
|
4500 MHz |
26.7 dB/100ft |
|
6000 MHz |
32.2 dB/100ft |
|
|
|
|
OUTER SHIELD MATERIAL |
|
|
Layer 1 |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
|
|
|
Layer 2 |
|
|
Outer Shield Type |
Braid |
|
Material |
Tinned Copper (TC) |
|
Coverage |
95% |
|
|
|
|
OUTER JACKET MATERIAL |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nominal Diameter |
0.242 in |
|
|
|
|
ELECTRICALS |
|
|
RETURN LOSS |
|
|
Frequency [MHz] |
Min. Return Loss [dB] |
|
5 - 850 MHz |
20 dB |
|
850 - 6000 MHz |
15 dB |
|
|
|
|
Nom. Conductor DCR |
12.2 Ohm/1000ft |
|
Nom. Outer Shield DCR |
2.4 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Shield |
17.0 pF/ft |
|
Nom. Impedence |
75 Ohm |
|
Nom. Velocity |
80% |
|
|
|
|
VOLTAGE |
|
|
UL Voltage Rating |
300 V (CM) |
|
|
|
|
TEMPERATURE |
|
|
UL Rating |
60°C |
|
Operating |
-35°C to +75°C |
|
|
|
|
BEND RADIUS |
|
|
Installation Min. |
2.4 in |
|
Bulk Cable Weight |
42 lbs/1000ft |
|
Max. Pull Tension |
73 lbs |
