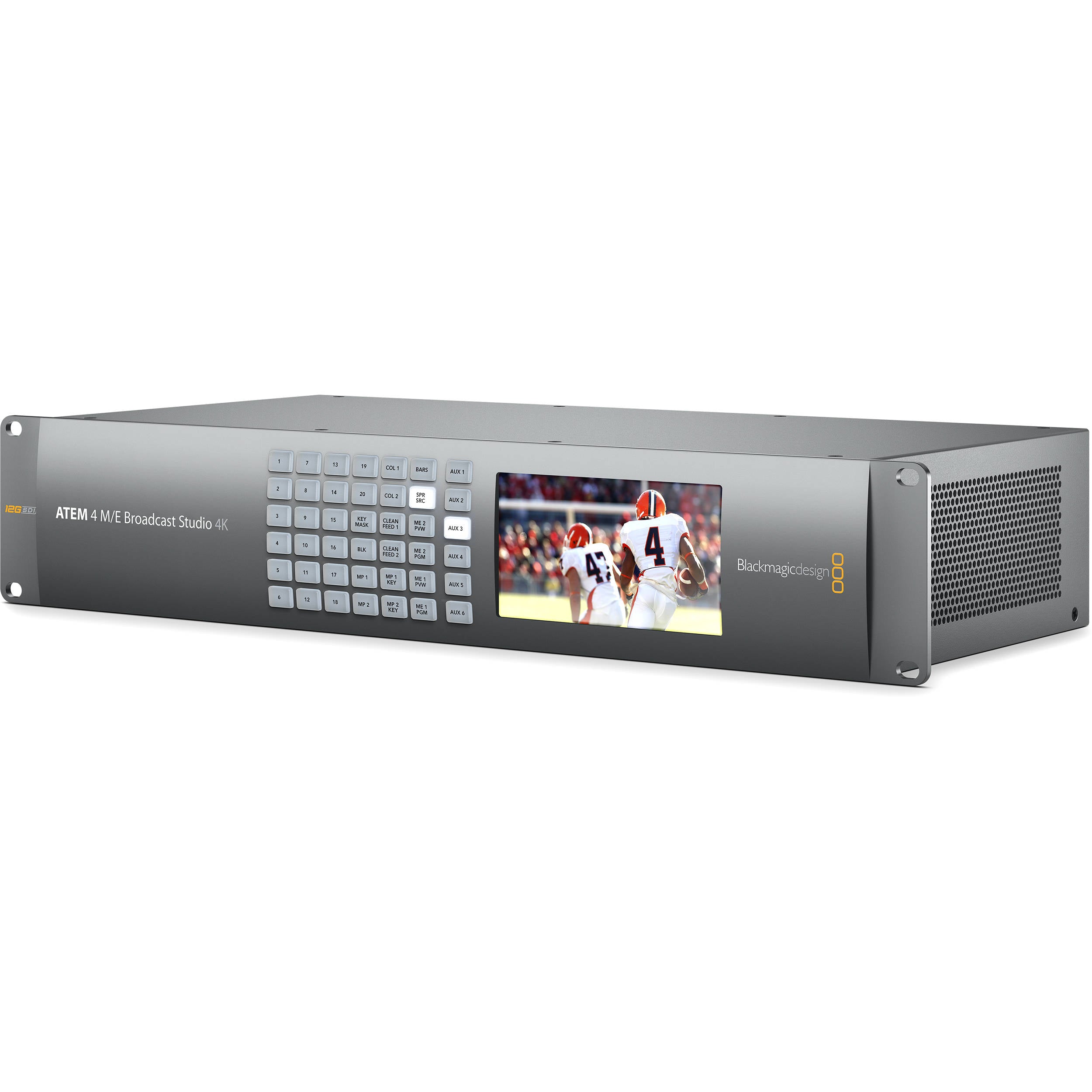

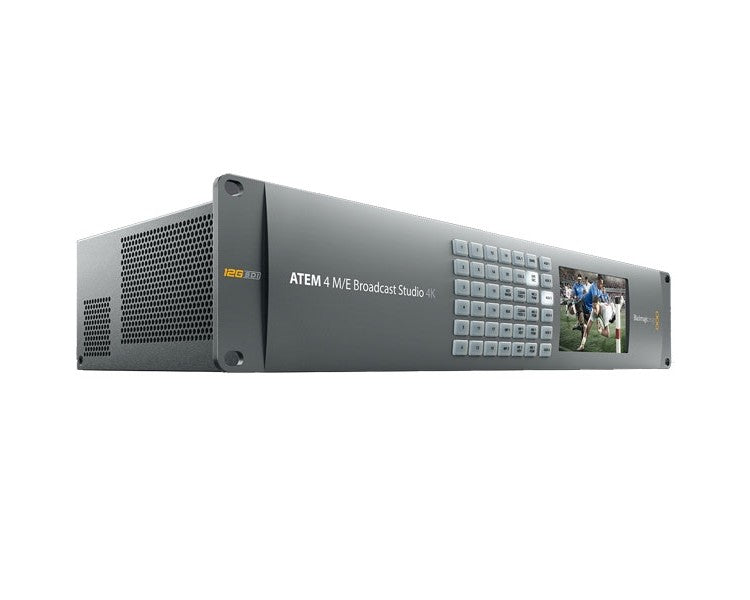

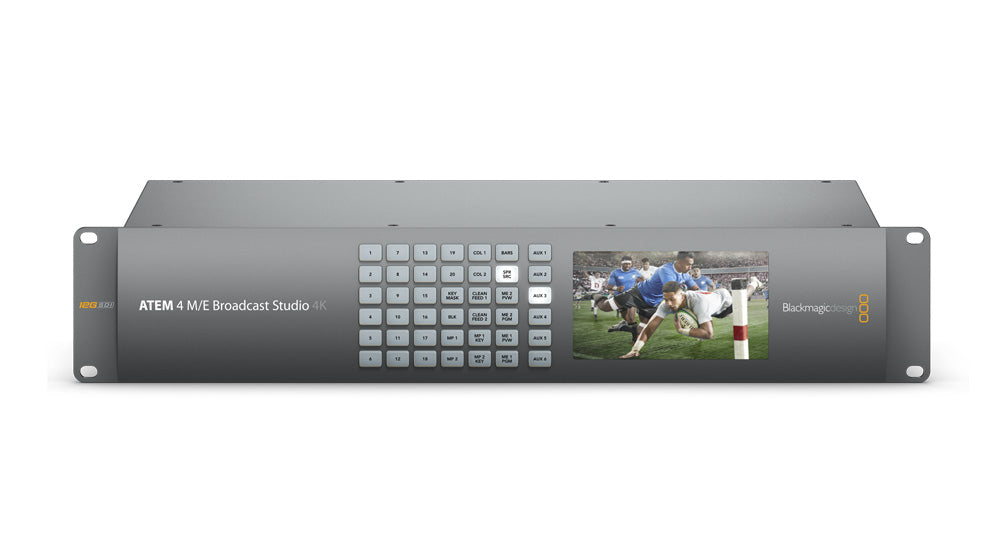

Format Support

3840 x 2160: 59.94/50/29.97/25/24/23.98

1080p 59.94/50/29.97/25/24/23.98

1080i 59.94/50

720p 59.94/50

SDI Compliance

SMPTE 292M, SMPTE 424M, SMPTE 2082

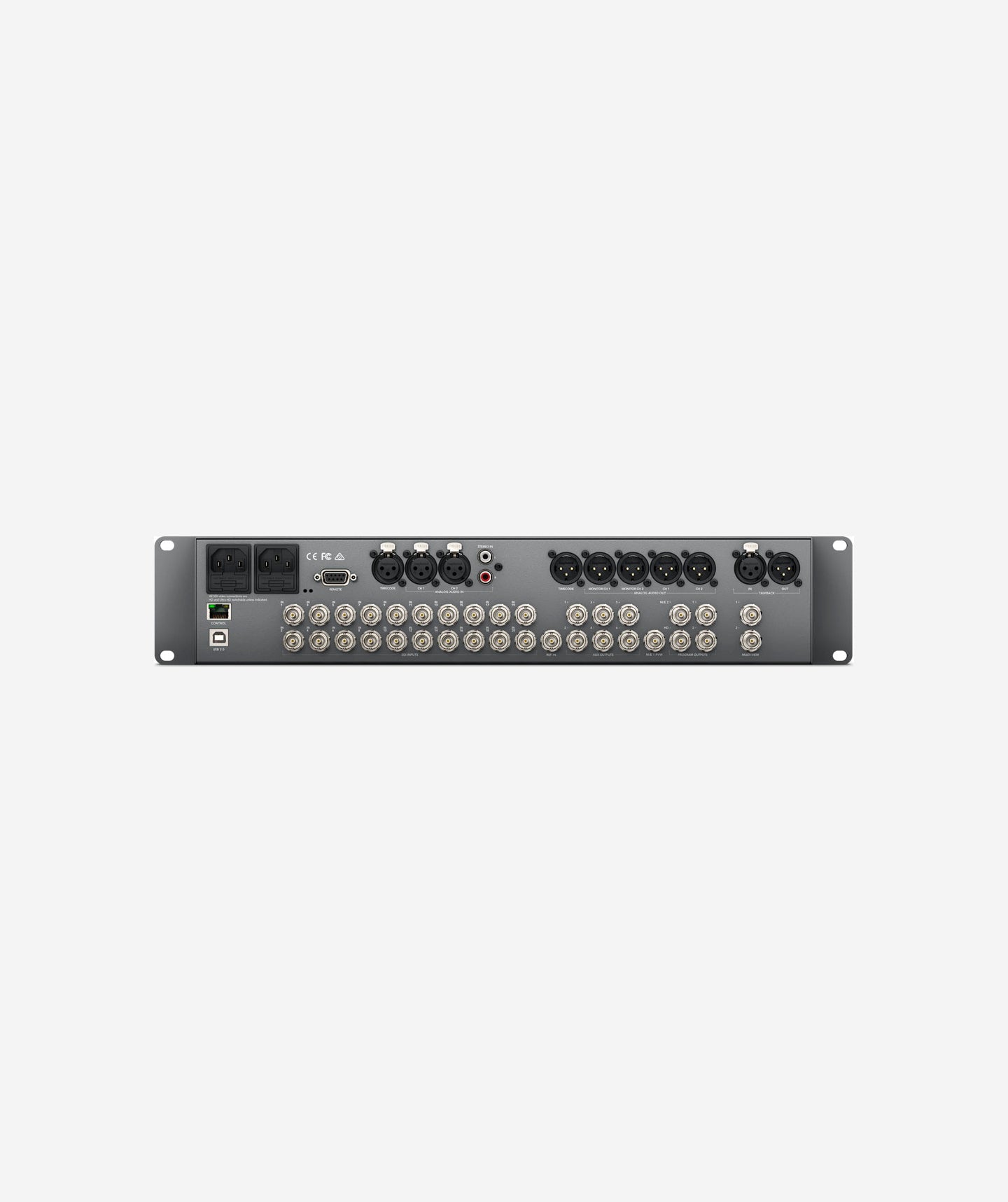

Inputs

12G/6G/3G/HD-SDI: 20 x BNC

Stereo Analog Audio: 1 x 2XLR, 1 x 2RCA

Talkback: 1 x XLR

Timecode: 1 x XLR

Reference: 1 x BNC

Outputs

SDI Monitor: 2 x BNC

SDI Program: 3 x BNC

SDI Aux: 6 x BNC

SDI M/E 1 Preview: 1 x BNC

SDI M/E 2 Program: 1 x BNC

Analog Audio: 4 x XLR

Timecode: 1 x XLR

Talkback: 1 x XLR

Other I/O

Network: 1 x RJ45

Computer: 1 x USB 2.0 Type-B

RS-422: 1 x DE-9

Processing Delay

<7 lines

Video Sampling

4:2:2

Color Space

REC 601

REC 709

REC 2020

Color Precision

10-bit

Audio Mixer

24-input mixer (2 channels per input)

Quantity

4

Clip Capacity

Quantity

2 with fill and key

Maximum Clip Length

UHD: 360 frames

1080p/i: 1440 frames

720p: 3200 frames

Still Image Capacity

64 with fill and key

Image File Formats

Still

PNG, TGA, BMP, GIF, JPEG, and TIFF

Video

TGA sequence

Audio

WAV, MP3, AIFF

Display

Minimum monitor resolution: 1366 x 768

Number of Windows

2 x Multi-view displays with 10 x windows for Preview/Program

16 x assignable displays

Tally

Red for program and green for preview indication

Note: Requires optional Blackmagic Design GPI and Tally interface product

Layers

29 Total

Keyers

16 x Upstream

2 x Downstream

19 x Linear/Luma

1 x Stinger

16 x Chroma

1 x DVE

Generators

7 x Pattern

2 x Color

Power Supply

2 x built-in power supply

110/240 VAC, 50/60 Hz

Note: IEC power cord required, not included

Power Consumption

300 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Relative Humidity

0 to 90% non-condensing

Rack Size

2 RU

Dimensions (W x H x D)

19 x 3.5 x 9.25" / 48.3 x 9 x 23.5 cm

Weight

6 lb / 2.72 kg

Package Weight

12.75 lb / 5.78 kg

Box Dimensions (LxWxH)

19.4 x 10.8 x 5.2"
