Blackmagic ATEM Constellation 8K

Rs. 1,008,650.00



Key Features:

  • 40 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
  • 24 x 12G-SDI AUX Outputs
  • Standards Converter on Each Input
  • 4 x DVE, 16 x Keyers
  • 4 x Media Players
  • 4 x Multiview Outputs

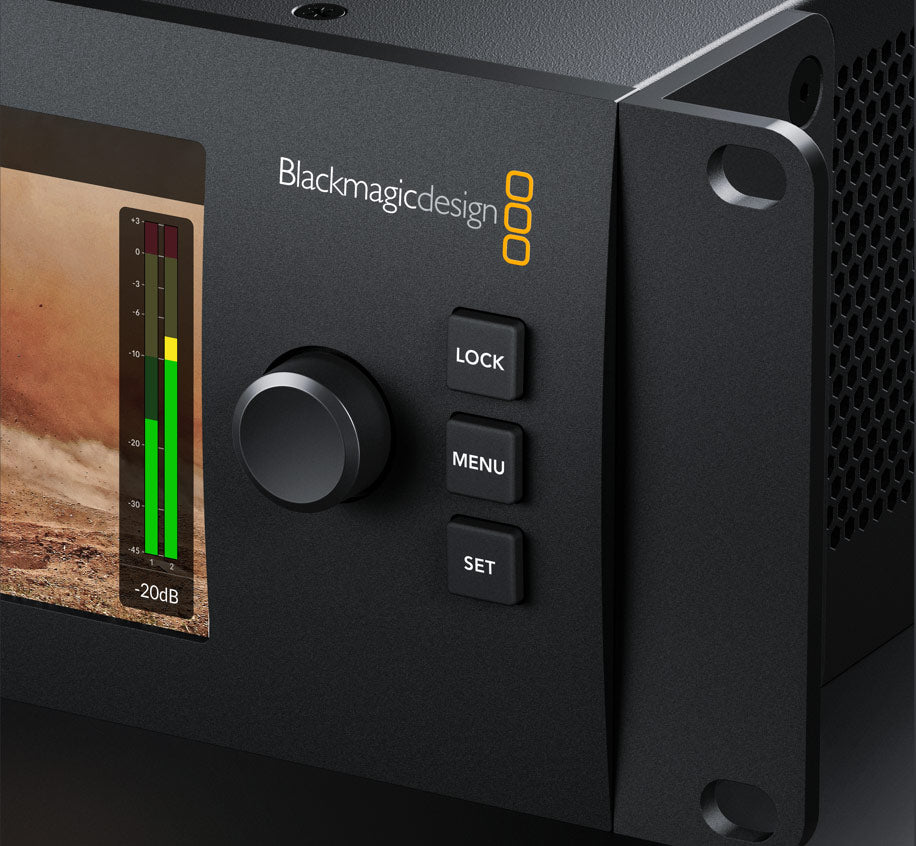

  • Built-In LCD View Screen
  • Front Panel or Ethernet Control
  • Built-In Fairlight Audio Mixer
  • Front and Rear Talkback Connectors

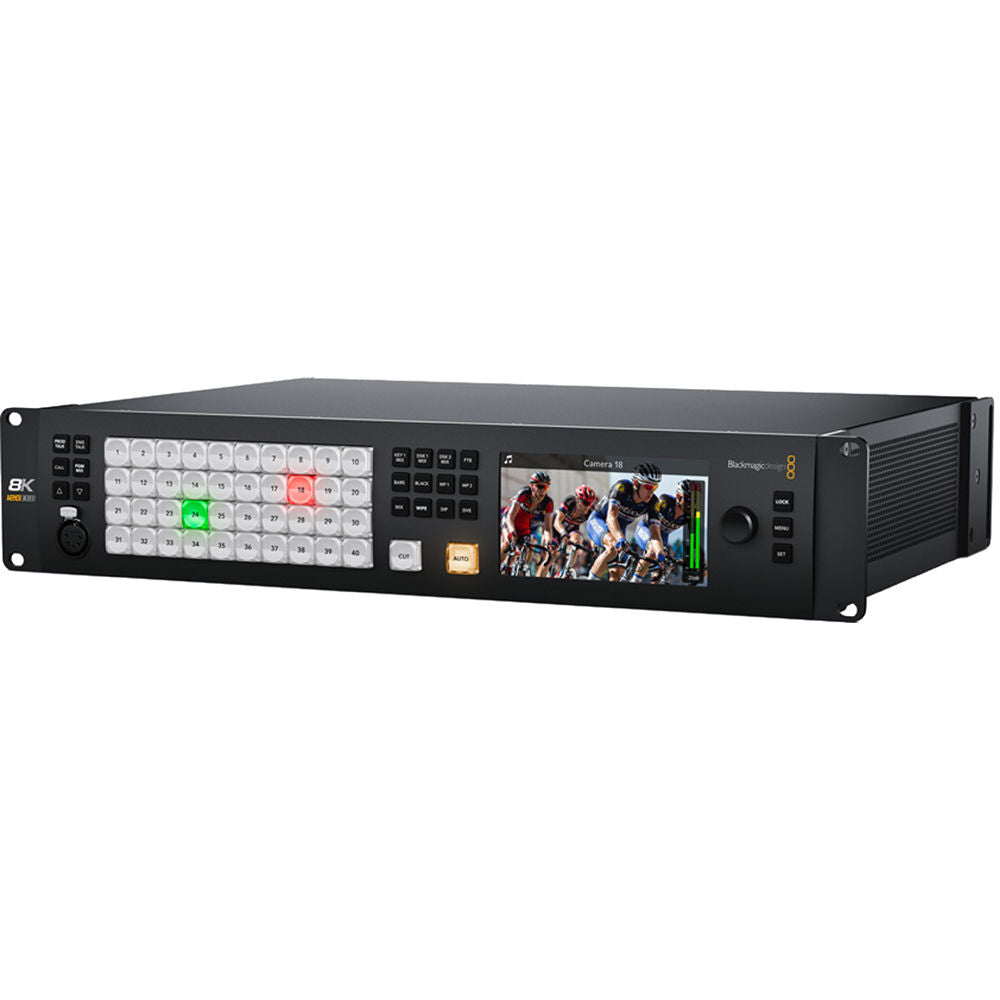

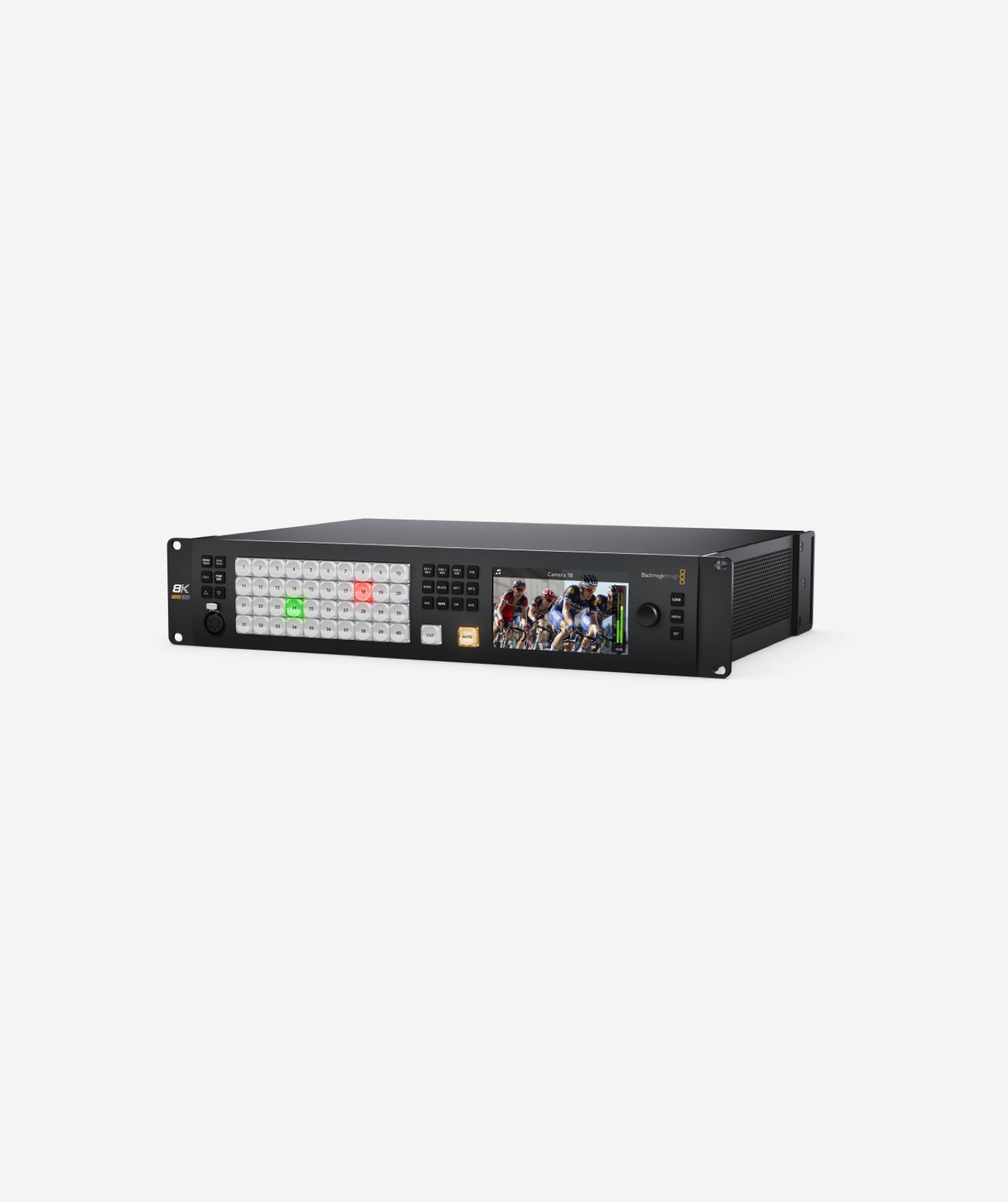

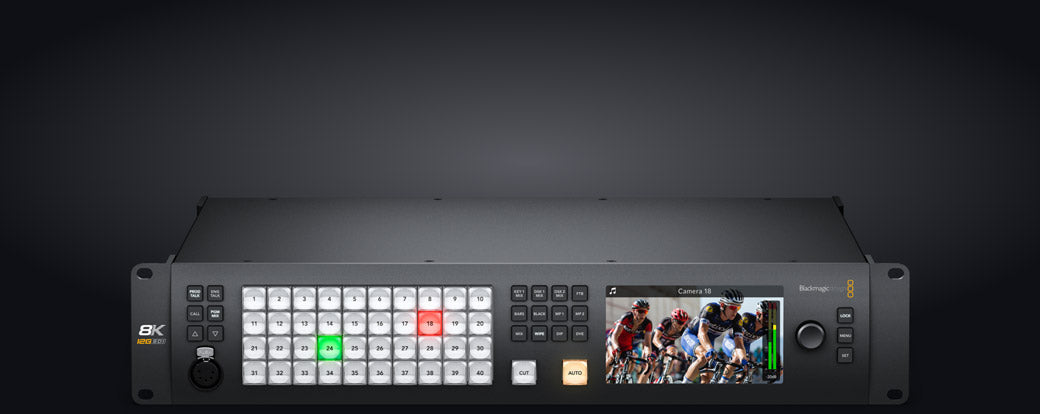

The Blackmagic Design ATEM Constellation 8K is a powerful switcher in a 2 RU chassis that can easily handle 4K video and supports 8K. It features a built-in control panel on the front and 40 12G-SDI inputs, with two main and 24 AUX 12G-SDI outputs. Each input has its own standards converter, which allows you to seamlessly switch between inputs no matter what format it is. The Constellation 8K incorporates four DVE, 16 Keyers, and four media players, allowing for flexibility in creating your program. Four multiview outputs enable viewing 4, 7, 10, 13, or 16 simultaneous views.

General

The ATEM Constellation 8K features the following built-in capabilities:
  • 16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
  • 4 downstream keyers in Ultra HD, 2 in 8K.
  • 16 advanced chroma keyers in Ultra HD, 4 in 8K
  • Talkback communication is supported
  • Mix-minus is supported
  • There are 4 transition keyers (Stinger/DVE)
  • Supports up to 28 layers in UHD and 7 layers in 8K
  • 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
  • Support for 2 color generators
  • 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K

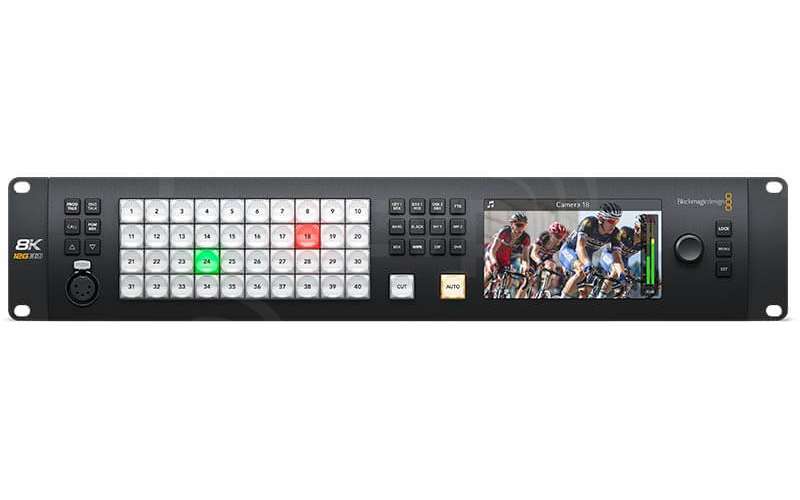

  • Control is via front push-button switching with illuminated buttons, software, or an optional hardware panel.
  • 64 routable windows in Ultra HD, and 16 in 8K
  • Tally support (red for program, green for preview)
Technical Specifications:

Available M/E Layers

4 M/E

Effect Types

4 x DVE

4 x Chroma Key (8K)

Downstream Keys

2 x Chroma (8K)

4 x Chroma (UHD)

Generators

9 x Pattern

2 x Color

Switching Type

Pushbutton

Processing Resolution

DCI 4K

Color Processing

10-Bit 4:2:2 YUV

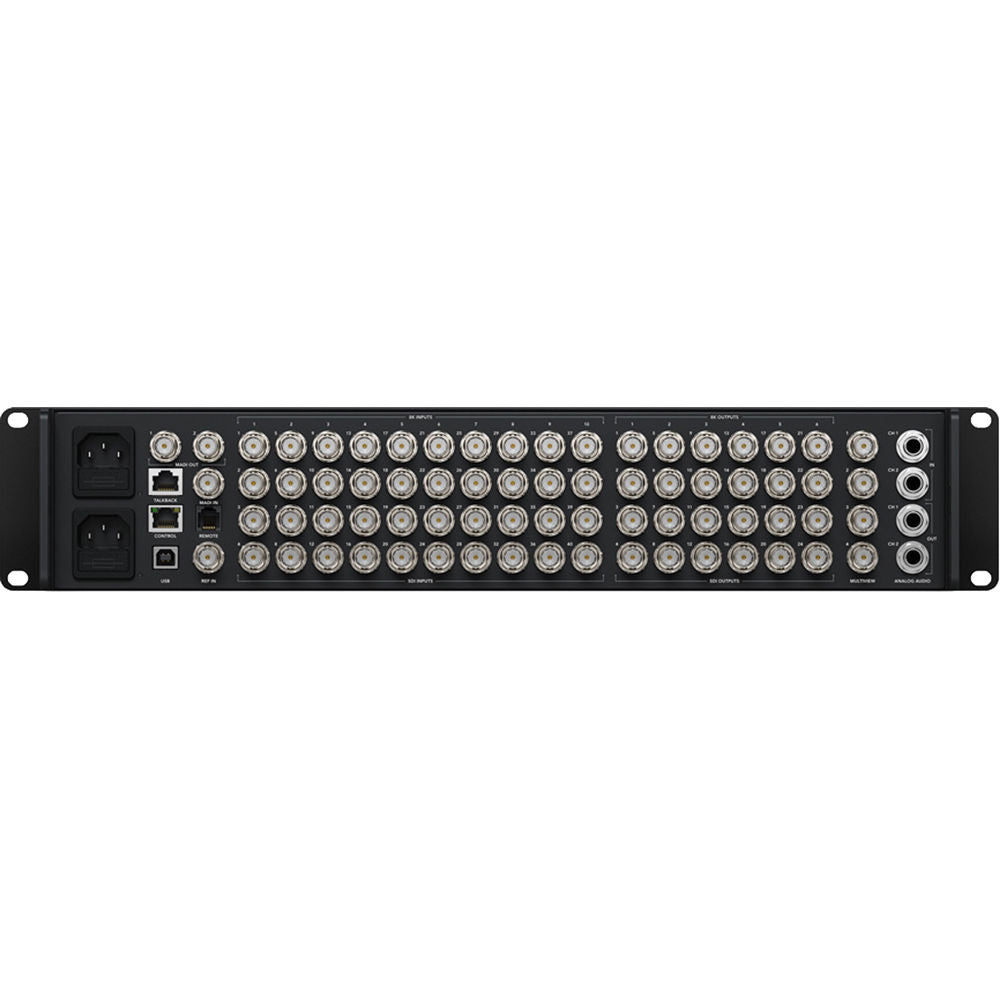

Video Input Connectors

40 x BNC (12G-SDI)

Input Video Format

SDI (10-Bit 4:2:2)

8K: 23.98/24/25/29.97/50/59.94 fps

UHD 4K: 23.98/24/25/29.97/50/59.94 fps

1080p: 25/29.97/50/59.94 fps

1080i: 50/59.94 fps

720p: 50/59.94 fps

Audio Input Connectors

2 x 1/4" Balanced TS Mono Analog Female

Video Output Connectors

24 x BNC (12G-SDI)

Output Video Format

SDI (10-Bit 4:2:2)

8K: 23.98/24/25/29.97/50/59.94 fps

UHD 4K: 23.98/24/25/29.97/50/59.94 fps

1080p: 23.98/24/25/29.97/50/59.94 fps

1080i: 50/59.94 fps

720p: 50/59.94 fps

Audio Output Connectors

2 x 1/4" Balanced TS Mono Analog Female

Multiview Output

Yes

Other I/O

1 x BNC Genlock Input

1 x RJ45 Control

1 x RJ45

1 x USB Type-B

Video Standard Compliance

SMPTE 292M/296M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

HDCP Support

Yes

Screen Resolution

1366 x 768

OS Compatibility

macOS 10.13

macOS 10.14 or Later

Windows 8.1

Windows 10

Wi-Fi

Yes

Bluetooth

Yes

Power Connector

2 x IEC C14 Input

Power Consumption

Device: 100 to 240 VAC (300 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90% (Recommended)

Rack Form Factor

2 RU

Dimensions

19 x 13.23 x 3.54" / 48.26 x 33.6 x 8.99 cm

Weight

18.5 lb / 8.39 kg

Package Weight

24 lb / 10.8 kg

Box Dimensions (LxWxH)

20.4 x 16.8 x 7"


In the Box

  • Blackmagic Design ATEM Constellation 8K
  • SD Card with Software
  • Limited 1-Year Warranty
