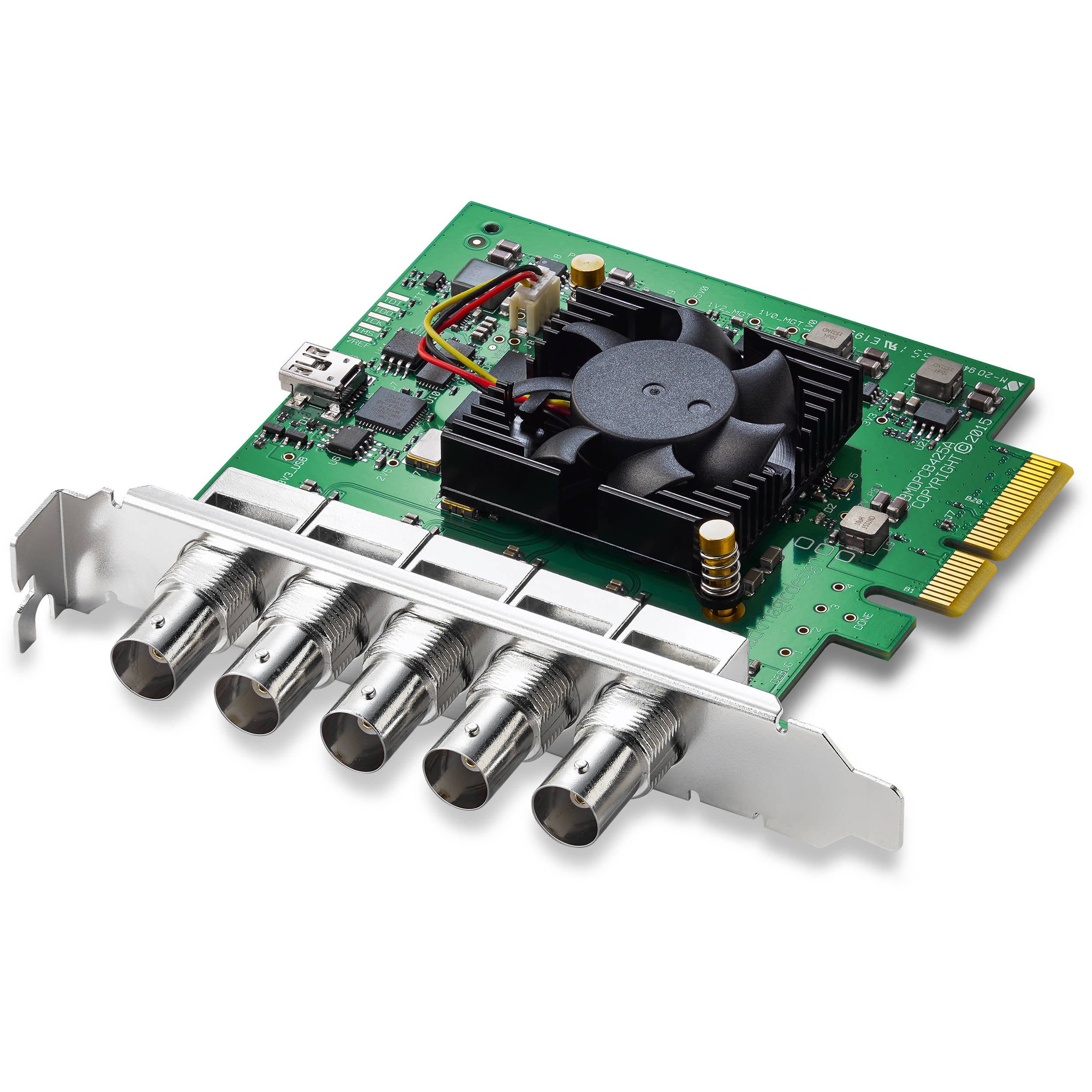

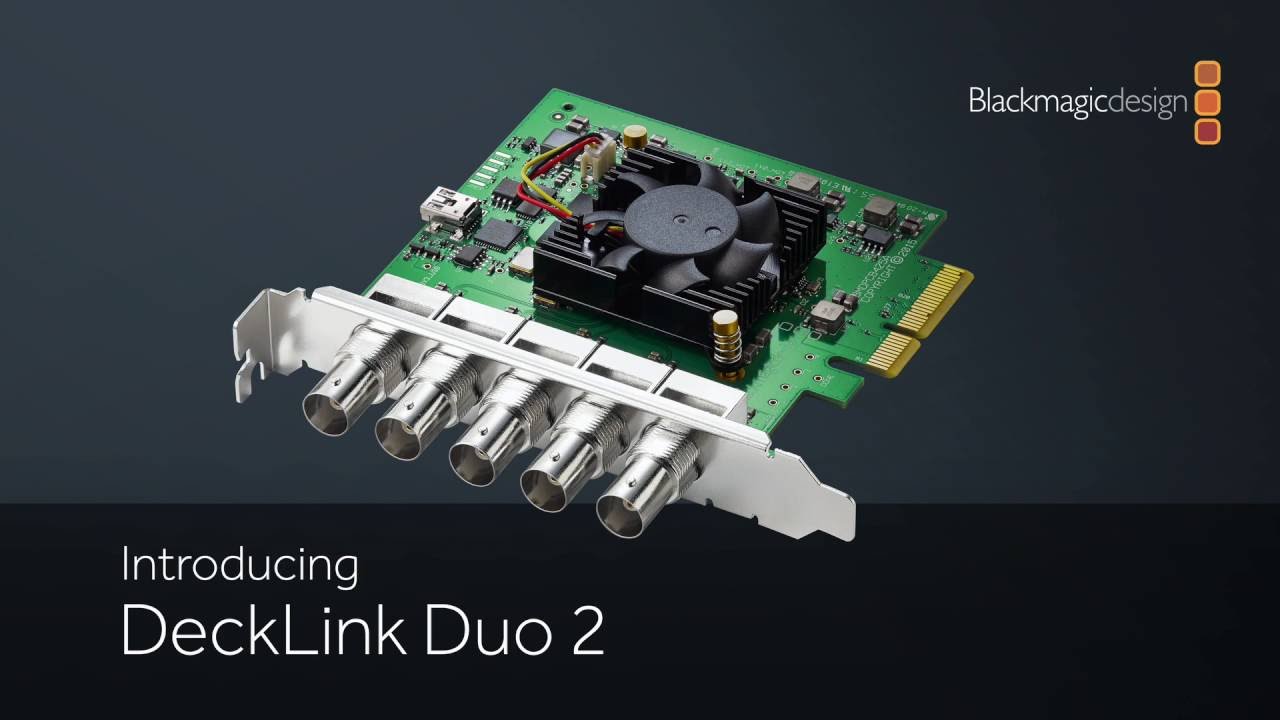

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.
Processing
- Color space conversion: Hardware based real time
- HD down conversion: Built-in, high-quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
- HD up conversion: Built-in, high-quality software up conversion from SD to 720 or 1080 HD on input. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom.
- Cross conversion: Built-in, high-quality hardware cross conversion from 720 to 1080 HD, and 1080 to 720 on playback.
- Real-time effects support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, and Avid Media Composer internal effects.
Software Compatibility
- Blackmagic Design: DaVinci Resolve, Fusion 8
- Apple: Final Cut Pro X
- Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Steinberg: Cubase, Nuendo
|
Host Connection |
PCIe x4 (PCIe 2.0) |
|
Video Input Connectors |
4 x BNC (12G-SDI) Female |
|
Input Video Format |
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL: 50 fps NTSC: 60 fps |
|
Audio Input Connectors |
None |
|
Input Audio Format |
Analog: 48 kHz / 24-Bit |
|
Embedded Audio Input |
SDI: 16-Channel |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
|
Other I/O |
1 x BNC Blackburst, Reference, Tri-Level Sync Input |
|
OS Compatibility |
Windows 8.1.10 or Later macOS 10.14.15 or Later Linux |
|
Power Consumption |
10 W |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Certifications |
C-Tick, CE, FCC, as per Manufacturer |
|
Dimensions |
3.7" / 9.4 cm |
|
Weight |
5.64 oz / 160 g |
|
Warranty Length |
Limited 3-Year Warranty |
In the Box:
- Blackmagic Design DeckLink Duo 2
- Limited 3-Year Warranty
