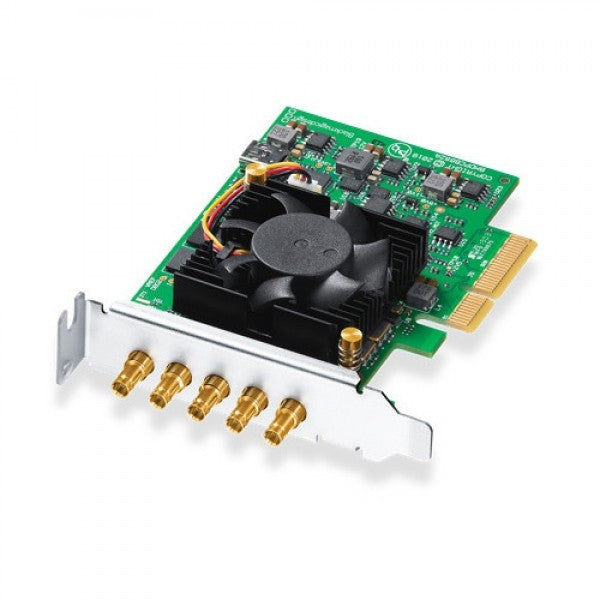

Blackmagic DeckLink Duo 2 Mini

Rs. 50,716.00 Rs. 44,999.00



Key Features:

  • Mini 3G/HD/SD-SDI Input/Output
  • Low-Profile PCIe Interface Card
  • Up to 1080p30 10-Bit 4:2:2 in All Modes
  • 1080p30 12-Bit 4:4:4 RGB on Playback
  • Rec. 601 and Rec. 709 Color Space
  • 16 Channels of 48 kHz 24-Bit Audio
  • BNC Reference Input
  • HD/SD Down/Up/Cross Conversions
  • macOS, Windows, and Linux Compatible

Ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the DeckLink Duo 2 Mini Capture and Playback Card from Blackmagic Design. The Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

Software Applications Supported

Supports major software applications such as DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, and Adobe Photoshop CC.

Other supported applications include The Foundry Nuke, Grass Valley EDIUS, Sony Catalyst Production Suite, Tools On Air Just: Play/Live/In, Softron MovieRecorder/MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro/Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio /Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity/InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard/Coral CG, Glookast Capturer, Open Broadcaster Software Studio, and Nautilus NEMO3D.

Technical Specifications:

Supported Operating Systems

macOS 10.13, 10.14 or Later

Windows 7, 8.1, 10 (All 64-Bit)

Linux

Inputs/Outputs

4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)

1 x Reference In

Sync Input

Tri-Sync or Black Burst

Computer Interface

PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)

Audio Channels

16 x Embedded, HD and SD (Input and Output)

Video Support

HD:

1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080PsF: 23.98, 24, 25, 29.97, 30

1080i: 50, 59.94, 60

720p: 50, 59.94, 60


SD:

525i: 59.94 NTSC

625i: 50 PAL

Audio Sample Rate

24-Bit, 48 kHz

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4

Conversion Modes

Playback: 720p to 1080p, 1080p to 720p

Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)

Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)

Color Space Conversion: Hardware-Based, Real-Time

Color Space

Rec. 601, Rec. 709

SDI Color Precision

8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)

8, 10-Bit YUV 4:2:2 (In All Modes)

12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Video Sampling

8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)

8, 10-Bit YUV 4:2:2 (In All Modes)

12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601

SDI Metadata Support

RP 188/SMPTE 12M-2 and Closed Captioning

Power Consumption

10 W

Certifications

FCC, CE, and C-Tick

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity (non-condensing)

0 to 90%

Length

3.9" / 9.9 cm, Low-Profile Form Factor

Weight

3.1 oz / 87 g


In the Box:

  • Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
  • SD Card with Drivers and Utilities
  • Limited 3-Year Warranty
