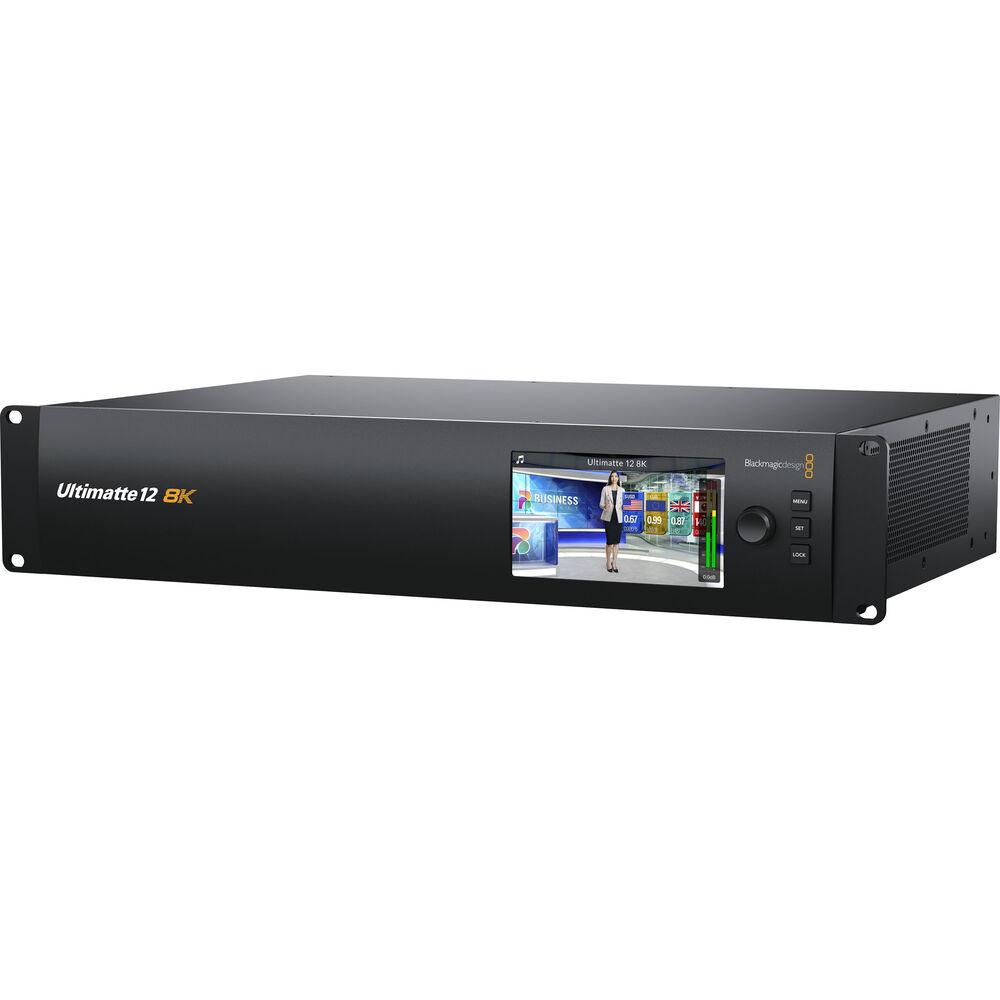

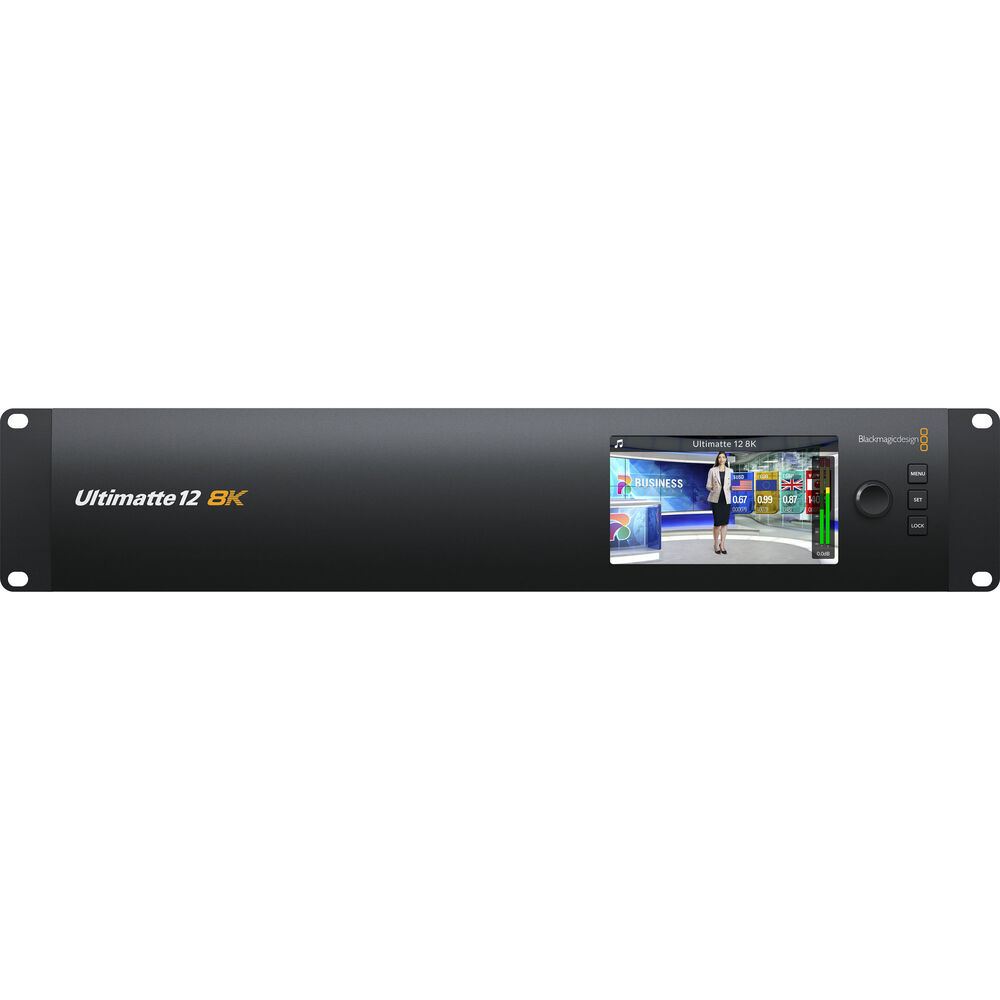

Blackmagic Design Ultimatte 12 8K Keyer/Advanced Compositing Processor

- Up to UHD 8K60 via 12G-SDI BNC
- 1-Touch Keying, Advanced Compositing
- SD/HD/3G/6G/12G-SDI Support
- 32 x SDI Inputs, 20 x Loop Outputs
- Dedicated Compositing Inputs
- Realistic Augmented Reality with Tinting
- Advanced Algorithms and Color Science
- Better Color Fidelity/Edges/Transitions
- Compatible with Ultimatte Smart Remote 4
- 2 RU Rack Size, Redundant Power
Upgrade your real-time compositing for keying live action video with the Ultimatte 12 8K Keyer/Advanced Compositing Processor from Blackmagic Design. This latest version of the Ultimatte 12 adds 12G-SDI connectivity to advanced algorithms, improved spill suppression, color science and separation, and excellent color fidelity to help create truly photorealistic composites.
The Ultimatte 12 works in 8K, UHD, and HD with sub-pixel processing for an improved image. Designed for news, sports, and other types of production, this versatile unit offers realistic augmented reality layers and one-touch auto-keying. This processor requires the downloadable Ultimatte Software for macOS and Windows, and it can also be controlled via the separately available Ultimatte Smart Remote 4. The 2 RU unit features dual redundant power and it features a 10GB Ethernet port.

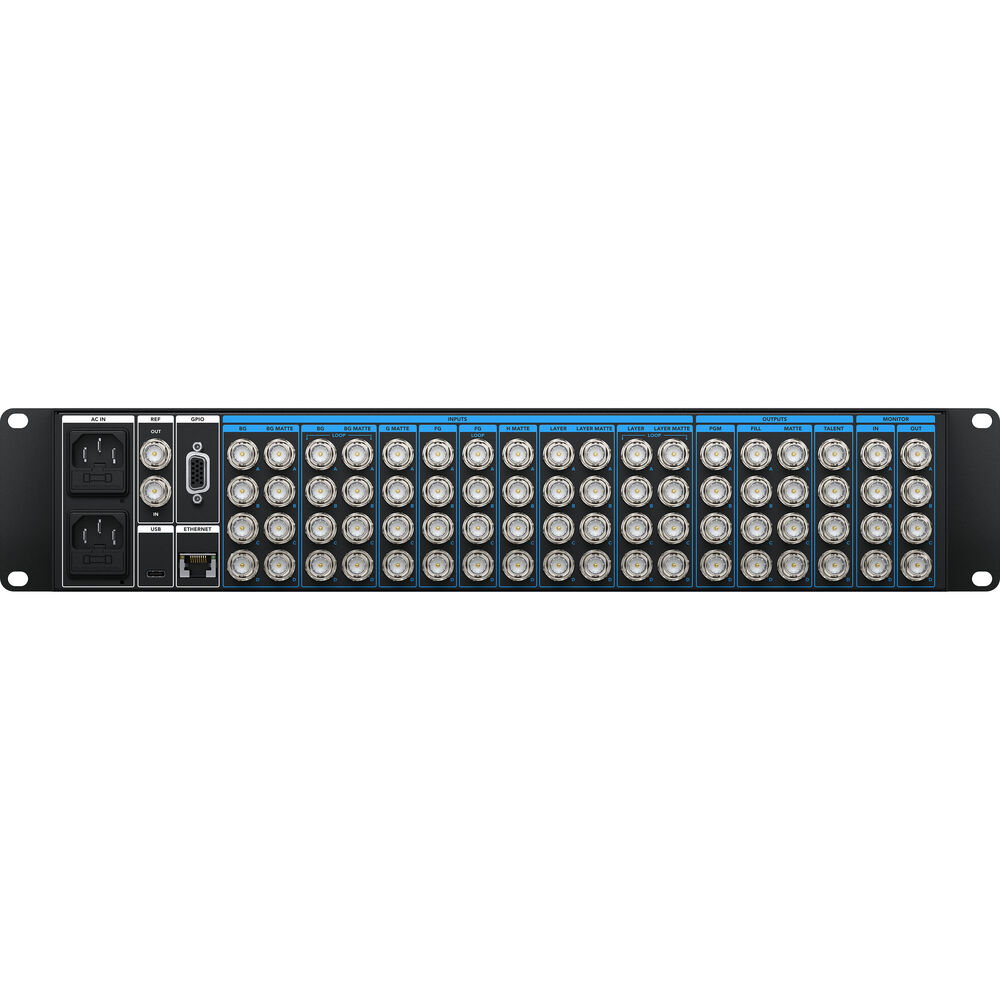

Inputs:
- Background
- Background matte
- Garbage matte
- Foreground
- Holdout matte
- Layer
- Layer matte
Output:
- Program out
Technical Specifications:
Compatibility |
Blackmagic Design Ultimatte Smart Remote 4 |
USB I/O |
1 x USB-C Female Input |
Video I/O |
32 x BNC (12G-SDI) Input 20 x BNC (12G-SDI) Loop Output |
Video Format |
4320p: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080psf: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC: 525i 59.94 PAL: 625i 50 |
Video Sampling |
4:2:2 |
Color Precision |
10-Bit |
Color Space |
Rec. 601, 709, 2020 |
SDI Rate |
Multi-Rate Support: 270 Mb, 1.5, 3, 6, 12 Gb/s |
Ethernet |
1 x RJ45 10 Gb/s Ethernet |
Reference Input |
1 x BNC |
Reference Output |
1 x BNC |
GPIO |
1 x 15-Pin GPIO/Tally |
Power Source |
AC Input |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Power Consumption |
218 W |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 90% (Non-Condensing) |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
Storage Humidity |
0 to 90% (Non-Condensing) |
Mounting |
1 x 2 RU Rack Unit |
Color |
Black |
Material of Construction |
Metal |
Dimensions |
19 x 13.3 x 3.48" / 48.3 x 33.8 x 8.84 cm |
Weight |
19.13 lb / 8.68 kg |
In the Box:
- Blackmagic Design Ultimatte 12 8K Keyer/Advanced Compositing Processor
- Limited 1-Year Warranty
