Blackmagic Design Ultimatte 12 HD Mini Keyer/Advanced Compositing Processor

Blackmagic Design Ultimatte 12 HD Mini Keyer/Advanced Compositing Processor

Name: Blackmagic Design Ultimatte 12 HD Mini Keyer/Advanced Compositing Processor
Brand: Blackmagic Design
SKU: ULTMKEY12/A/HDM
Price: 53000 INR
Availability: InStock

Rs. 55,436.00 Rs. 53,000.00

- +

Blackmagic Design ⁄ Blackmagic Design Ultimatte 12 HD Mini Keyer/Advanced Compositing Processor

Key Features:

Up to 1080p60 via HDMI
1-Touch Keying, Advanced Compositing
SD/HD/3G-SDI Monitor In for Cascade
2 x HDMI Inputs
SDI & HDMI Program & Monitor Outputs
Realistic Augmented Reality with Tinting
Advanced Algorithms and Color Science
Better Color Fidelity/Edges/Transitions
Works with Ultimatte Smart Remote 4
1 RU Height, 1/3 Rack Width

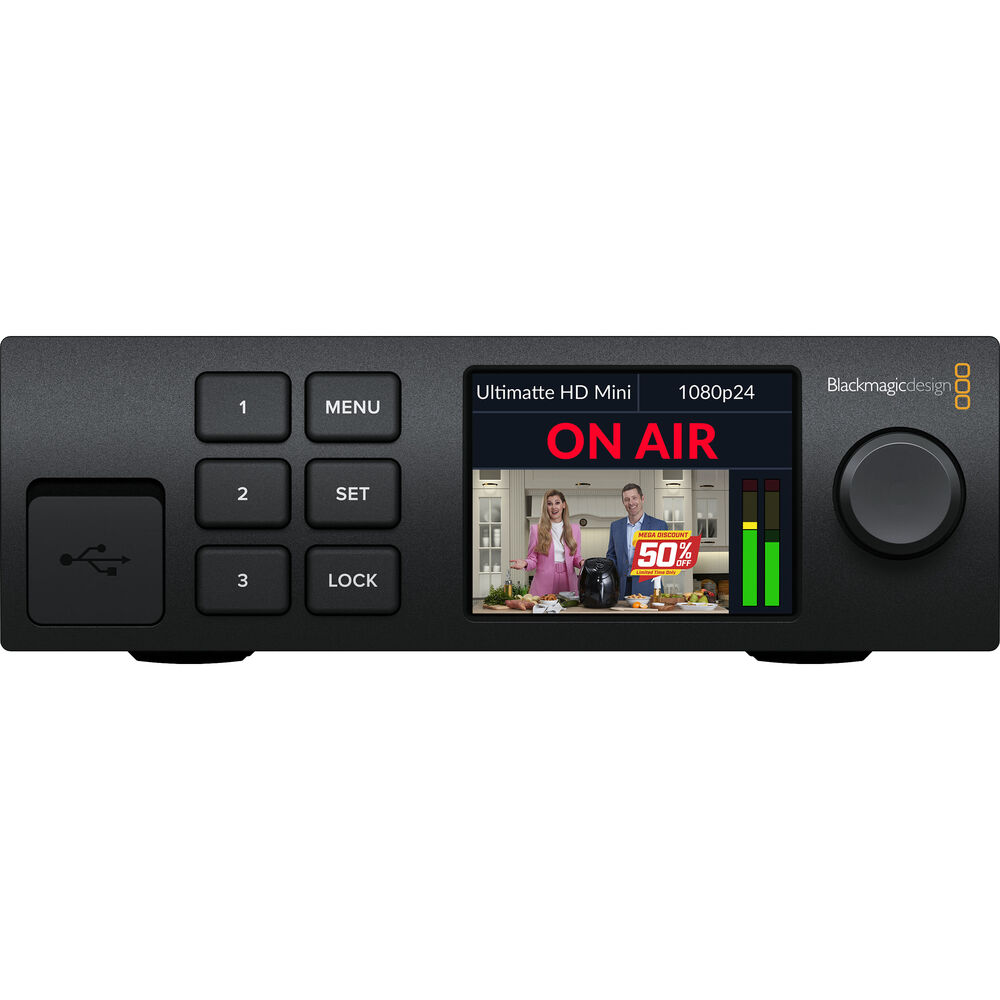

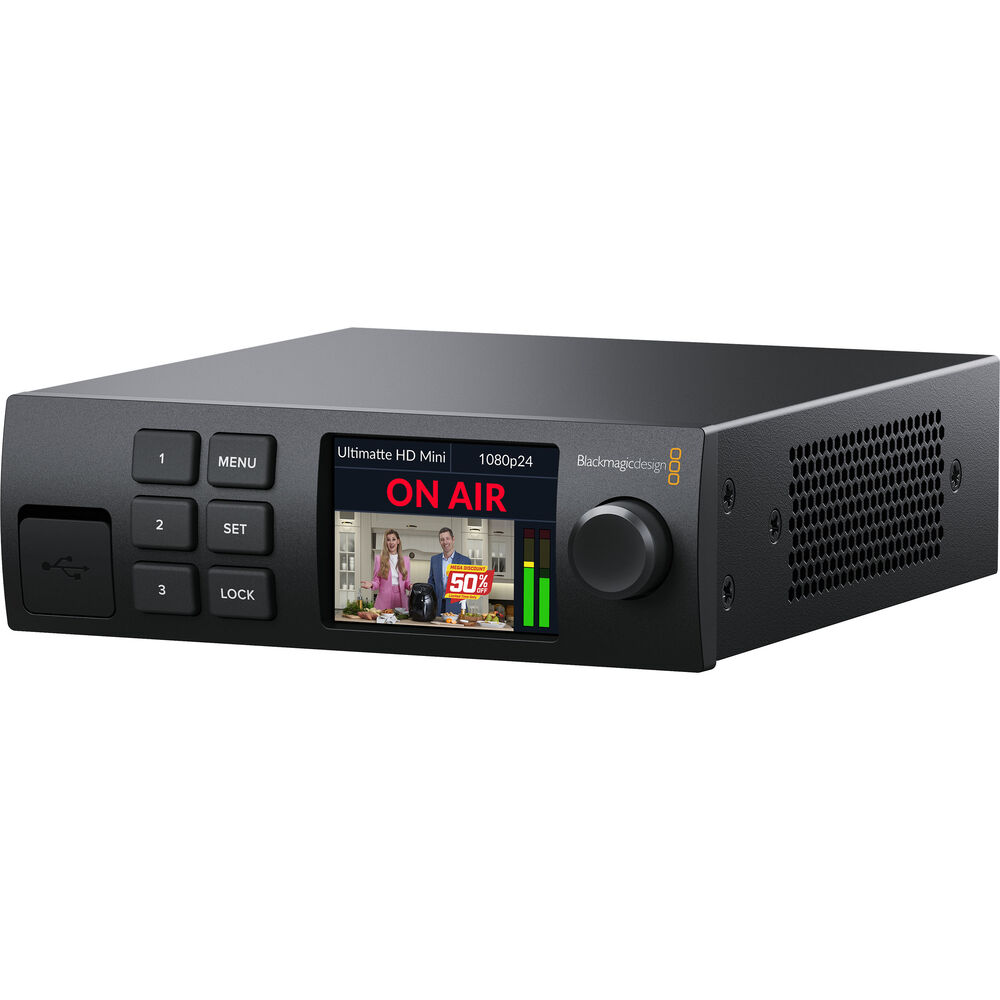

Upgrade your real-time compositing for keying live action video with the Ultimatte 12 HD Mini Keyer/Advanced Compositing Processor from Blackmagic Design. This latest version of the Ultimatte 12 HD adds HDMI connectivity to advanced algorithms, improved spill suppression, color science and separation, and excellent color fidelity to help create truly photorealistic composites.

The Ultimatte 12 HD works in HD with sub-pixel processing for an improved image. Designed for news, sports, and other types of production, this versatile unit offers realistic augmented reality layers and one-touch auto-keying. The HD Mini model supports up to 1080p60 resolutions and supports a variety of media formats. This processor requires the downloadable Ultimatte Software for macOS and Windows, and it can also be controlled via the separately available Ultimatte Smart Remote 4.

Advanced Real-Time Compositing

Uses new algorithms and color science, improved edge handling, color separation, color fidelity, and spill suppression to create photorealistic composites in HD, all in real time.

Applications

Designed for news, sports, narrative film and television, and entertainment productions using fixed cameras, static backgrounds, or virtual set systems. The ability to layer augmented reality objects enables talent to pre-visualize virtual sets when using a green screen.

Multicamera Use

New technology enables the Ultimatte 12 to add accurate keying parameters to multiple cameras, accounting for slight variations between the camera positions

Realistic Augmented Reality Layer

A new "realistic" layer compositing mode enables you to add translucent or tinted objects on top of the foreground.

One-Touch Keying

One-touch keying dramatically lessens the time it takes to pull a key, using the auto key to set over 100 parameters once your set is well lit and white balanced.

Advanced Image Processing

Advanced image processing algorithms and an immense color space are used to generate internal mattes, so different parts of the image can be processed separately based on the colors in each area. This processing produces fine detail on hair and smooths color and object transitions.

Highest Color Fidelity

Refined flare, edge, and transition processing enables you to remove the background without affecting the colors you want to retain, faithfully reproducing colors that are impossible on other keyers, such as a bright yellow dress in front of a green screen.

Shadows and Transparencies

Improved flare algorithms can remove green tinting and spill from almost anything, creating true, realistic looking virtual environments, even when using shadows or transparent objects with reflections.

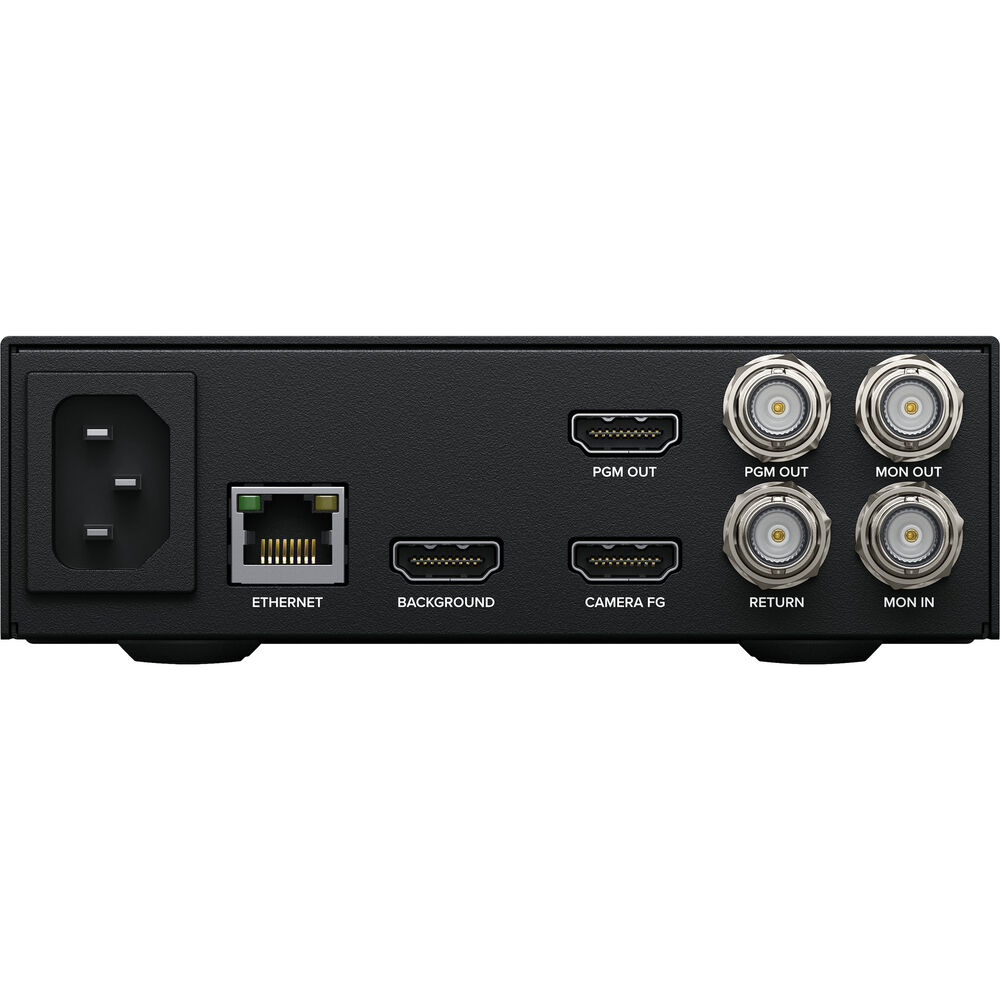

High-Quality Interfaces

High-quality connections include an Ethernet port and HDMI ports that support up to 1080p60 video, and Program video outputs.

Dedicated Compositing Inputs

Dedicated connectors with loop outputs that are used for compositing include:

Inputs:

Background
Camera Foreground
Monitor In

Output:

Program Out
Return
Monitor Out

Technical Specifications:

Compatibility	Blackmagic Design Ultimatte Smart Remote 4
Video Format	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080psf: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC: 525i 59.94 PAL: 625i 50
Video Sampling	4:2:2
Color Precision	10-Bit
Color Space	Rec. 601, 709, 2020
USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input
Video I/O	2 x HDMI Input 1 x HDMI Output 1 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output 1 x BNC (3G-SDI) Monitor Output
Ethernet	1 x RJ45 1 Gb/s Ethernet
Power Source	AC Input
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	12 W
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 90% (Non-Condensing)
Storage Temperature	-4 to 140°F / -20 to 60°C
Storage Humidity	0 to 90% (Non-Condensing)
Mounting	1 x Rack Unit
Color	Black
Material of Construction	Metal
Dimensions	6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm
Weight	2.56 lb / 1.16 kg
