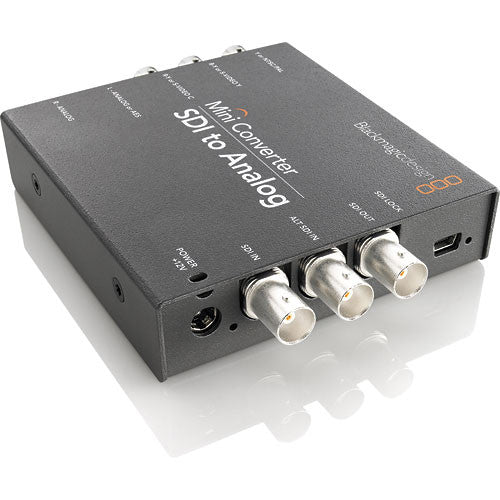

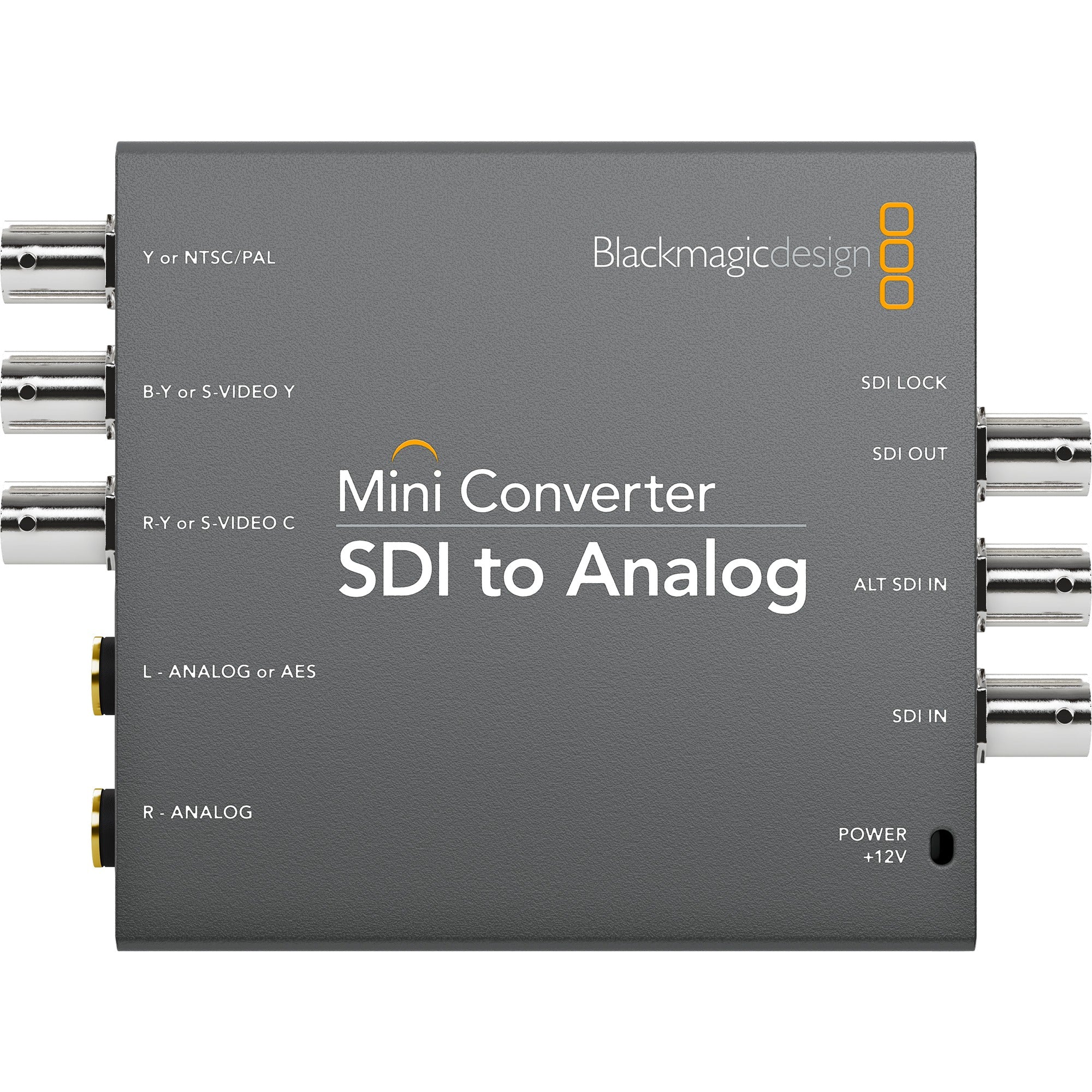

Blackmagic Mini Converter - SDI to Analog

Rs. 19,750.00



Key Features:

  • SDI to Analog Conversion

The Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.

SDI to Analog Conversion

Use this device to convert SDI video signals to analog output.

Embedded Audio

The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.

Technical Specifications:

Input

(1) SDI (switchable between SD, HD & 3Gbs SDI)

Output

(1) component, NTSC, PAL, and S-video

(1) SDI (switchable between SD, HD & 3Gbs SDI)

Audio

Analog:

(2) channels of professional balanced analog with standard 1/4" jack connections

Digital:

(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard

Power

12VDC

Dimensions (HxWxD)

Not specified by manufacturer

Weight

Not specified by manufacturer


In the Box:

  • Blackmagic Design Mini Converter SDI to Analog
  • Power Supply
  • Limited 3-Year Warranty
