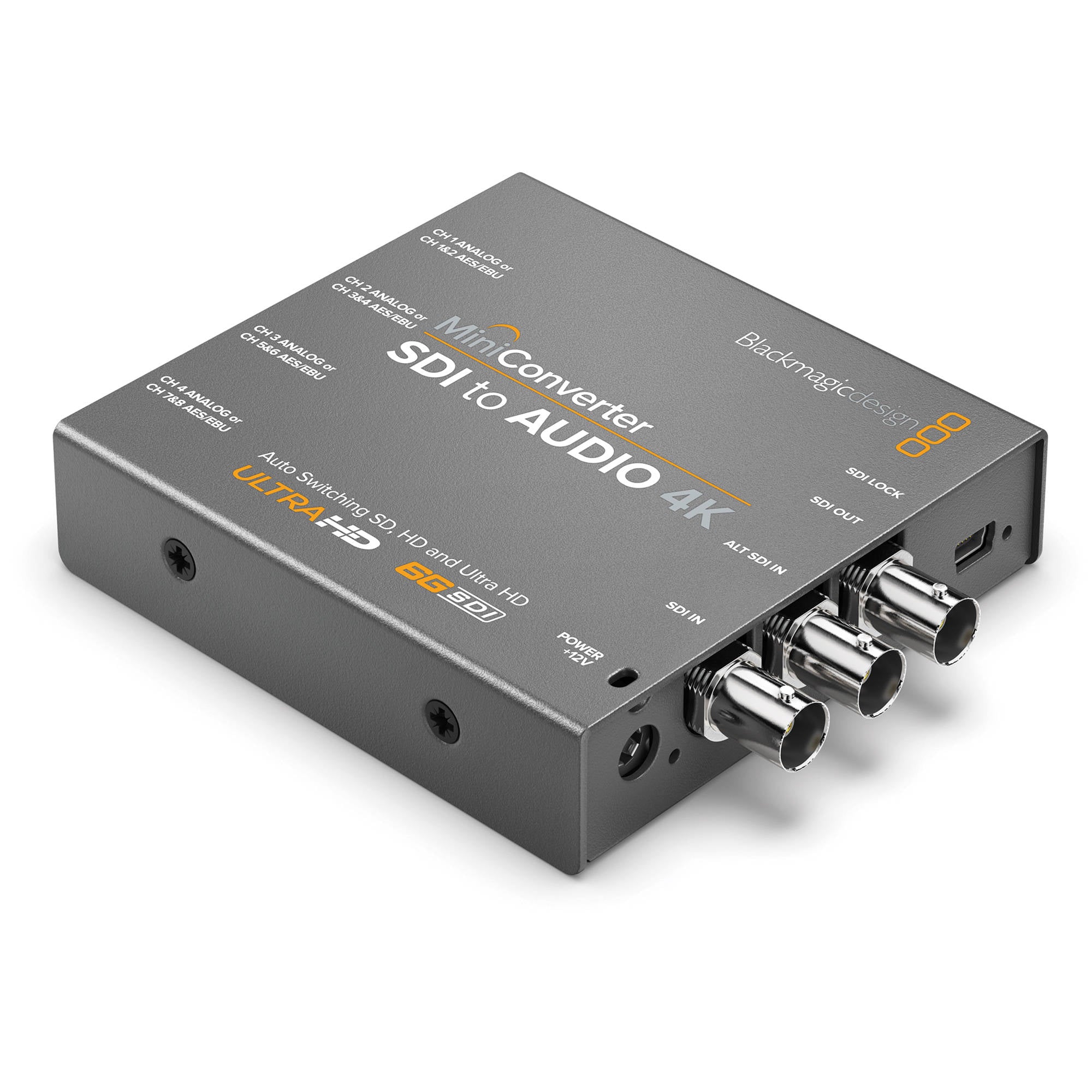

Blackmagic Mini Converter SDI to Audio 4K
Key Features:
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input

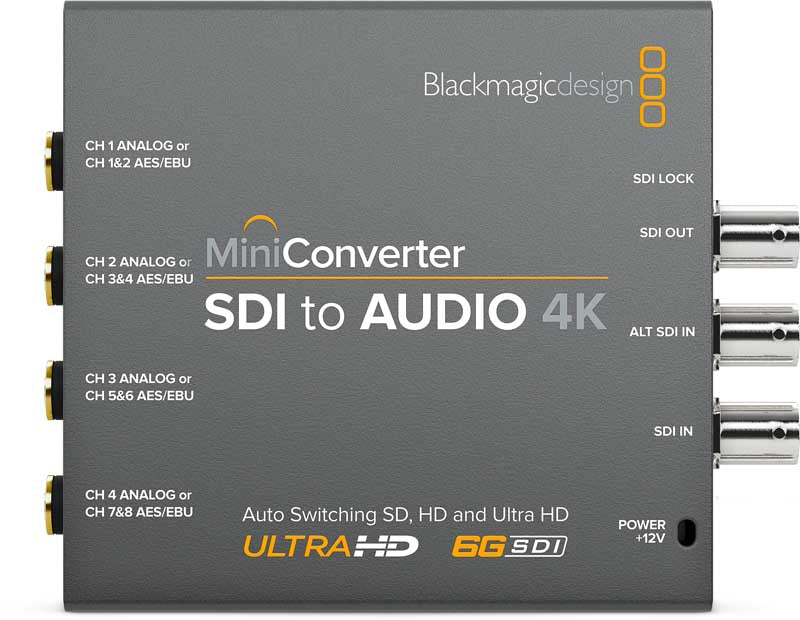

- 4x 1/4" Audio Output Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio
- Control via DIP Switches or Software
- 12V Universal Power Supply Included
The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

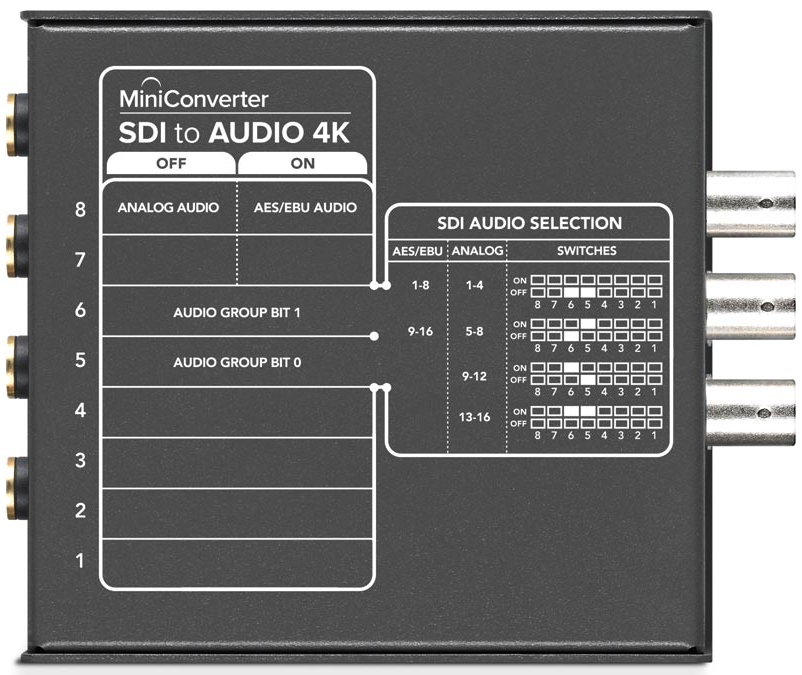

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.
Additional Features:
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
Technical Specifications:
|
SDI Video Input |
1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
|
SDI Video Output |
1 x SD/HD/3G/6G-SDI |
|
Audio Output |
4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
|
Multi-Rate Support |
Auto detection of SD, HD, 2K, UHD, and 4K signals |
|
Reclocking |
Yes |
|
Format Support |
SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
|
SDI Compliance |
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
|
SDI Video Rates |
Switchable between SD, HD, 3G, and 6G-SDI |
|
SDI Auto Switching |
Automatically detects SD, HD, 3G, or 6G-SDI |
|
SDI Video Sampling |
4:2:2, 4:4:4 |
|
SDI Audio Sampling |
24-bit, 48 kHz |
|
SDI Color Precision |
4:2:2, 4:4:4 |
|
SDI Color Space |
YUV, RGB |
|
Settings Control |
DIP switches or USB software for Mac OS X and Windows |
|
Firmware Upgradeable |
Via USB 2.0 |
|
Power Supply |
12 VDC |
|
Power Consumption |
8.4 W |
|
Operational Voltage Range |
12 to 31 VDC |
|
Operating Temperature |
32 to 104° F (0 to 40 ° C) |
|
Storage Temperature |
-4 to 113° F (-20 to 45 ° C) |
|
Relative Humidity |
0 to 90% non-condensing |
|
Dimensions |
4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm) |
|
Weight |
7.61 oz (215.74 g) |
In the Box:
- Blackmagic Design Mini Converter SDI to Audio 4K
- 12VDC Power Supply with International Socket Adapters
- Limited 3-Year Warranty
