Key Features:

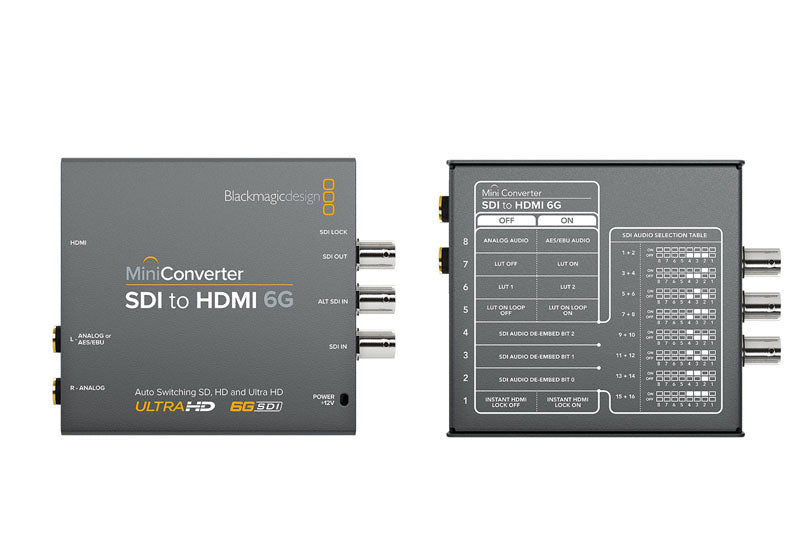

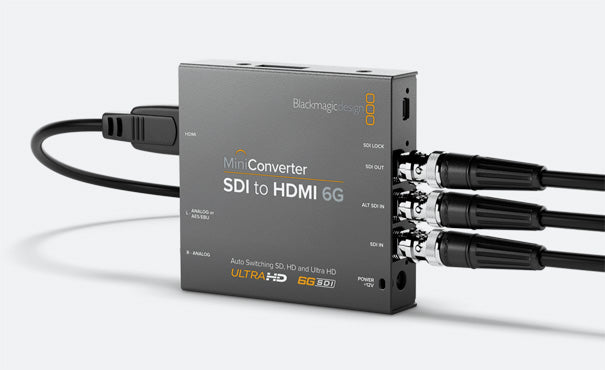

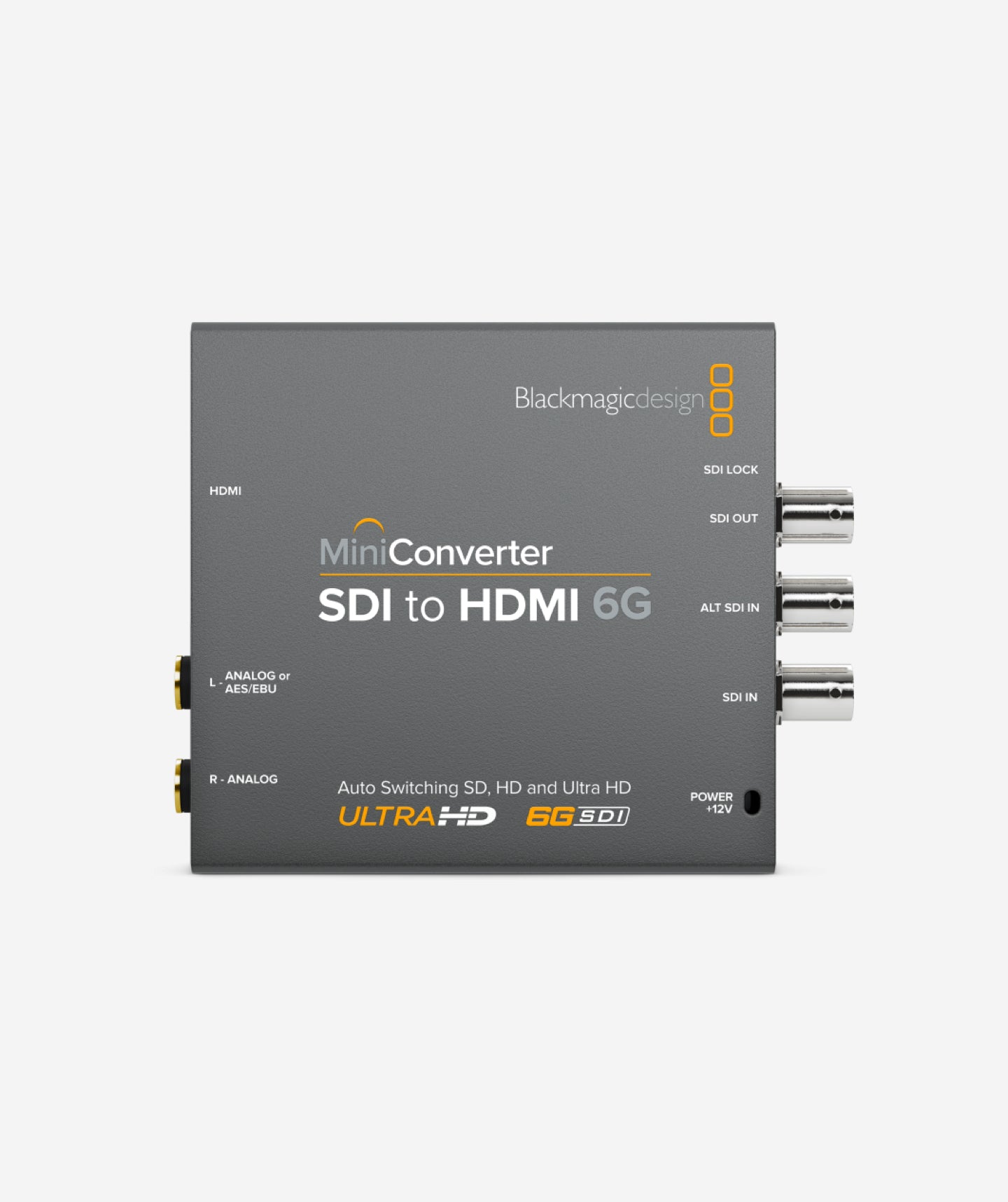

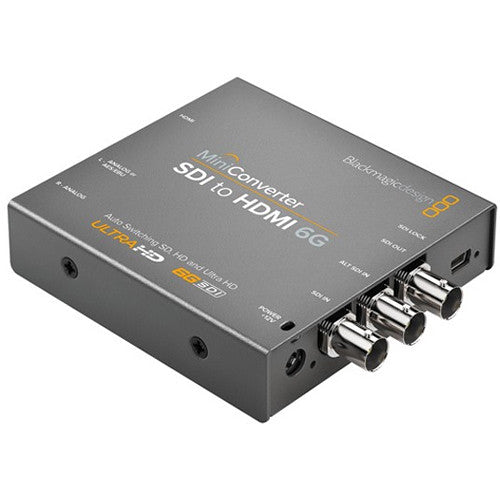

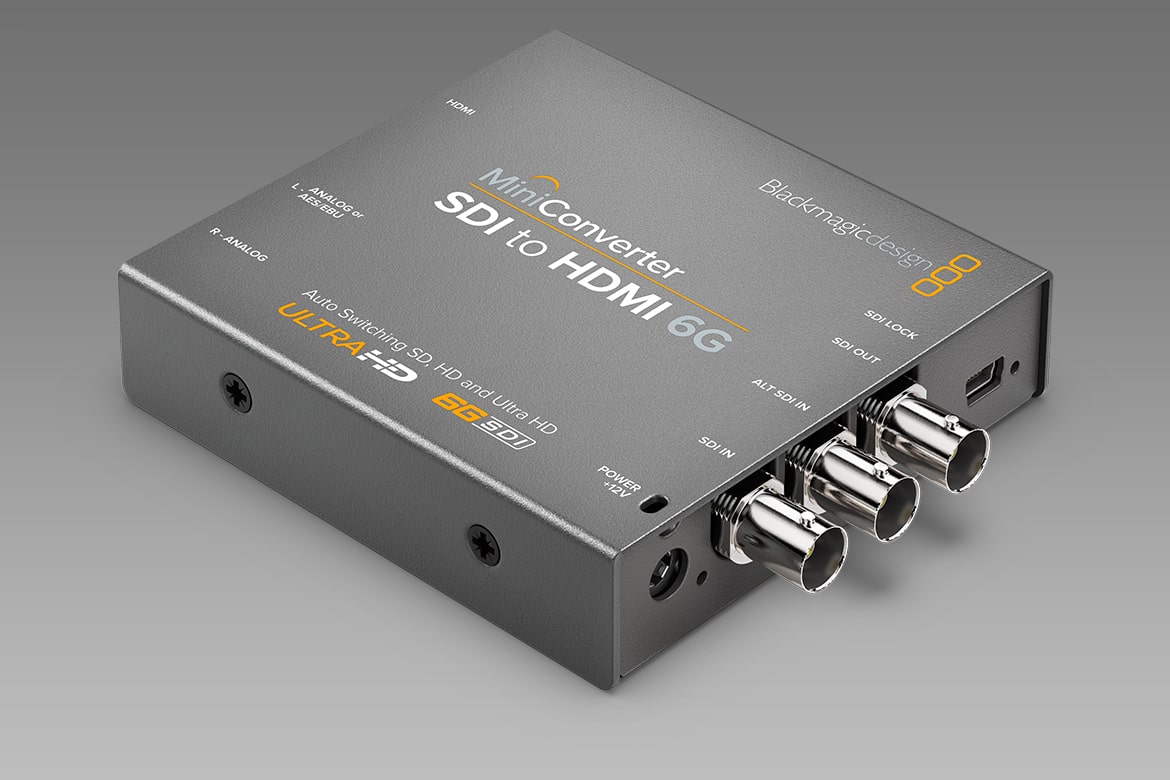

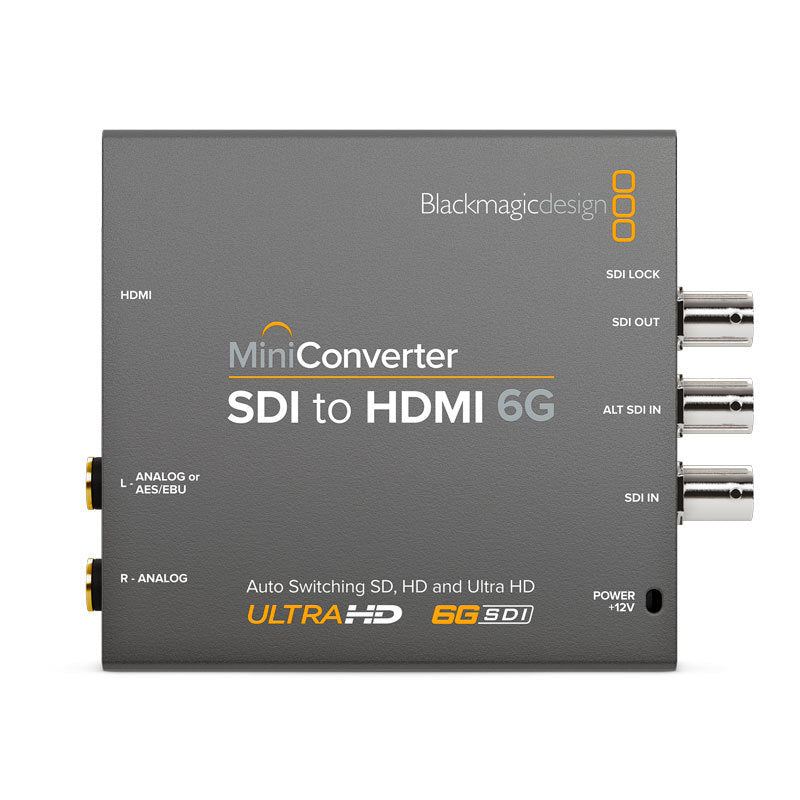

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.
Additional Features:
Technical Specifications:
Video Input
2 x 6G-SDI
Video Output
1 x HDMI type A
1 x 6G-SDI
Multi-Rate Support
Auto detection of SD, HD, or 4K signals
Reclocking
Yes
Audio Output
Analog: 2 channels with 1 x 1/4" jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack
Format Support
DCI 4K
24p
UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD
NTSC: 525i/59.94
PAL: 625i/50
SDI Compliance
SMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081
SDI Video Rates
SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
SDI Video Sampling
4:2:2
4:4:4
SDI Color Precision
SDI Color Space
YUV
RGB
SDI Audio Sampling
24-bit, 48 kHz
SDI Auto Switching
Automatically detects SD, HD, or 6G-SDI
HDMI Format Support
HDMI Color Space
YUV and RGB
HDMI Color Precision
Format Conversion
HD down-conversion
Settings Control
Mini switches or USB software
Firmware Upgradeable
Via USB
Power Supply
12 VDC
Power Consumption
5.2 W
Operational Voltage Range
12 to 31 VDC
Operating Temperature
32 to 104°F / 0 to 40 °C
Storage Temperature
-4 to 113°F / -20 to 45 °C
Relative Humidity
0 to 90% non-condensing
Dimensions
4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm
Weight
9.06 oz / 256.85 g
In the Box:
