Blackmagic Mini Converter UpDownCross HD

Rs. 16,496.00



Key Features:

  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output
  • Support Signals up to 1080p60
  • Automatic Input Signal Detection
  • Automatic, Multirate Support
  • Reference Input & Reclocking
  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

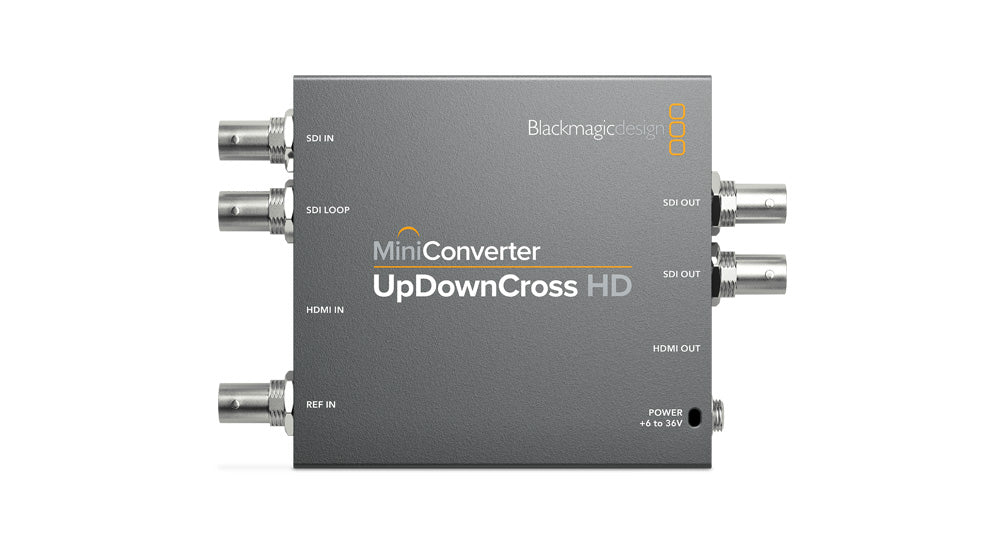

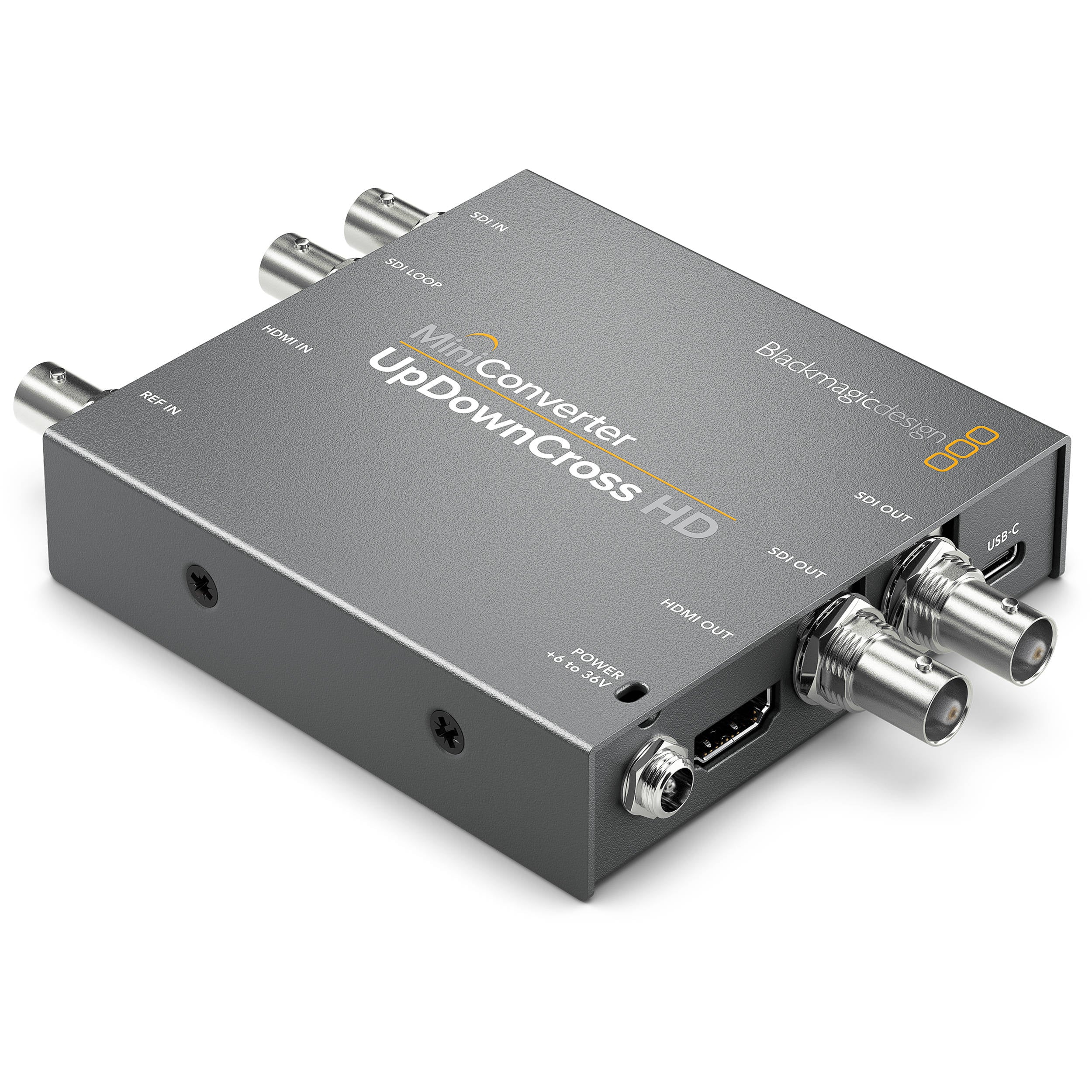

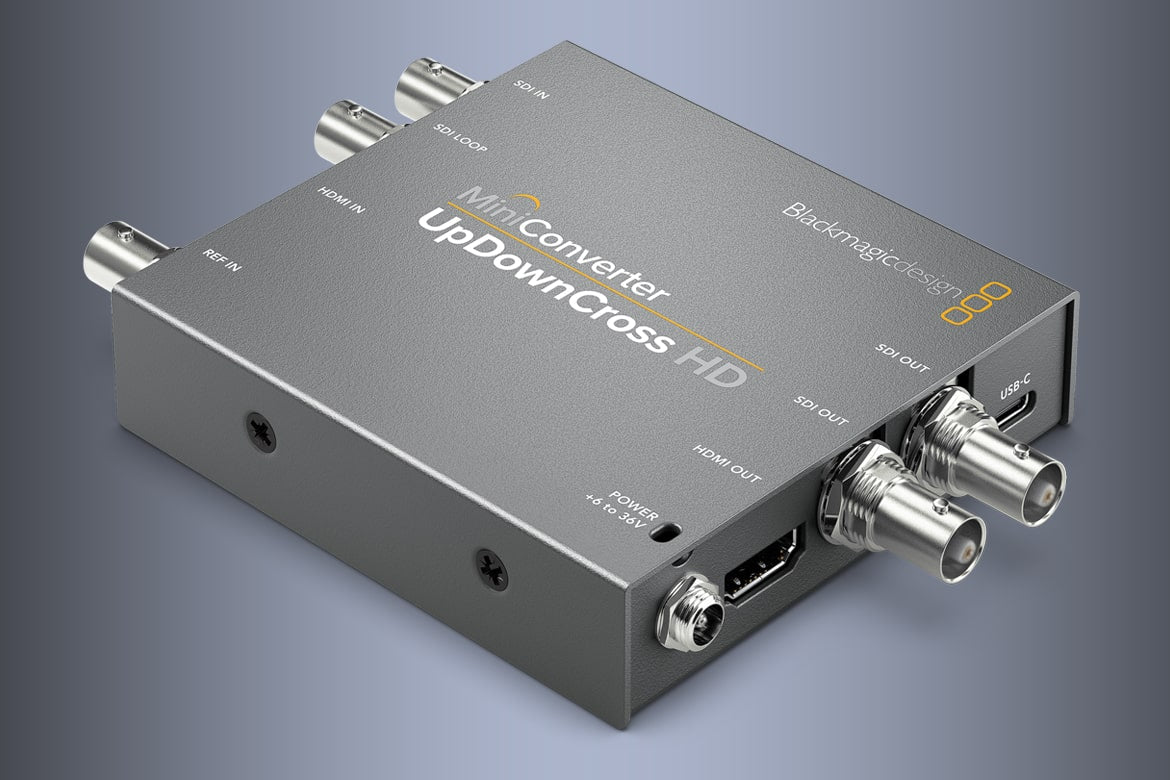

Use the Mini Converter UpDownCross HD from Blackmagic Design to automatically cross-convert between any SD and HD video format, with support for signals up to 1080p60. The converter incorporates one 3G/HD/SD-SDI input, two 3G/HD/SD-SDI outputs and one loop-through output, one HDMI input, and one HDMI output. This versatile converter supports scaling for computer DVI resolutions via its HDMI input, enabling you to connect HDMI computers to SDI projectors.

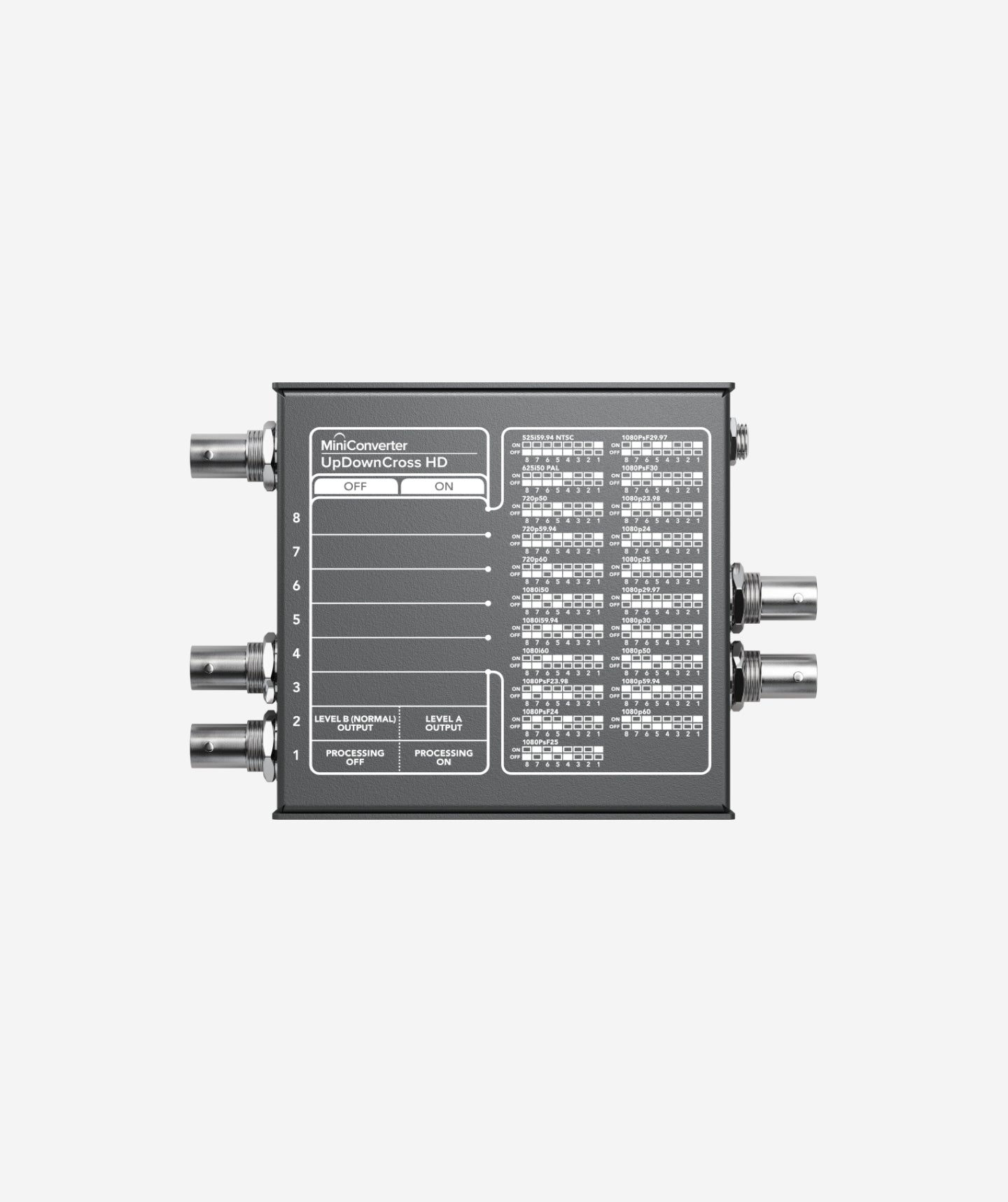

Features include automatic signal detection, reference in, reclocking, and audio delay for A/V sync. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection to prevent accidental disconnection.

Key Features:

  • Full up, down, and cross conversion between HD and SD video formats up to 1080p60
  • Single 3G/HD/SD-SDI input
  • Two 3G/HD/SD-SDI outputs, one loop-through output
  • One HDMI input, one HDMI output
  • Automatic signal detection
  • Scales computer DVI resolutions
  • Automatic SD/HD switching
  • Universal power supply included with multiple socket adapters
  • Control via built-in mini switches or Mac/Windows-compatible software

Technical Specifications:

Video Input

3G/HD/SD-SDI: 1 x BNC

HDMI: 1 x Type A

Video Output

3G/HD/SD-SDI: 2 x BNC

Loop-Through Out: 1 x BNC

HDMI: 1 x type A

Reference Input

Black Burst & Tri-Level Sync: 1 x BNC

Reclocking

Yes

SDI Compliance

SMPTE 424M-B/296M/292M/259M

ITU-R BT.656/BT.601

SDI Video Sampling

4:2:2

SDI Color Space

YUV

SDI Audio Sampling

48 kHz, 24-bit

Supported Video Standards

SDI:

1080p 60/59.94/50/30/29.97/25/24/23.98

1080PsF 24/23.98

1080i 60/59.94/50

720p 60/59.94/50


HDMI:

1080p 60/59.94/50/30/29.97/25/24/23.98

1080i 60/59.94/50

720p 60/59.94/50


NTSC SD: 525i 59.94

PAL SD: 625i 50

Scaling

DVI Resolutions:

1080p 60/59.94/50/30/29.97/25/24/23.98

1080i 60/59.94/50

720p 60/59.94/50

625i 50

525i 59.94

1024 x 768

800 x 600

640 x 480

Power Supply

12 VDC

Operation Voltage

6 to 36 VDC

Power Consumption

5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity

0 to 90%, non-condensing

Dimensions

5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm

Weight

8.7 oz / 247 g


In the Box:

  • Blackmagic Design Mini Converter UpDownCross HD
  • 12 VDC Universal Power Supply
  • Limited 3-Year Warranty
