Blackmagic MultiView 4 HD

Rs. 18,750.00



Key Features:

  • 4 x SD/HD/3G-SDI Inputs
  • 1 x SDI & 1 x HDMI Outputs
  • Automatic Signal Detection
  • SDI Re-Clocking on Output
  • Monitor EDID Support
  • Display Custom Labels & Audio Metering
  • Compact Metal Housing
  • Quad Multiviewer

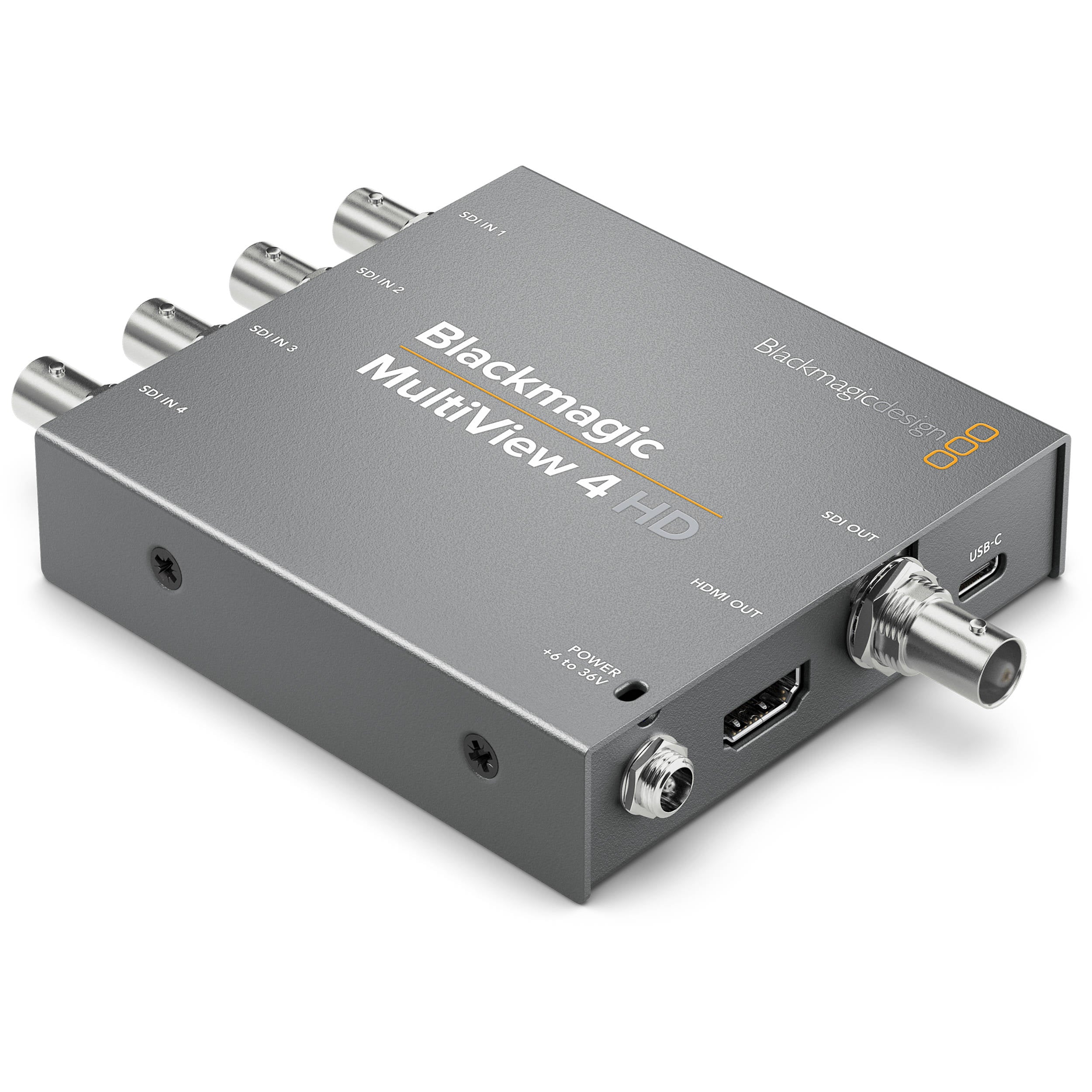

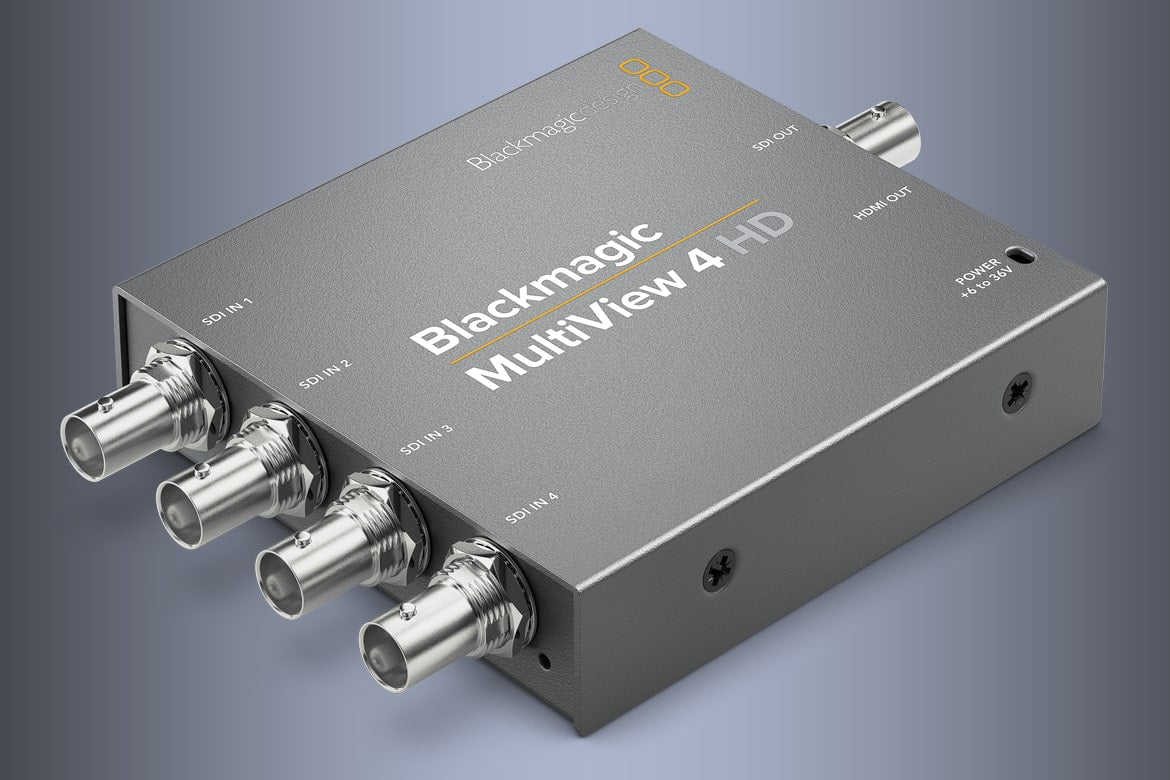

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.

Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.

Features:

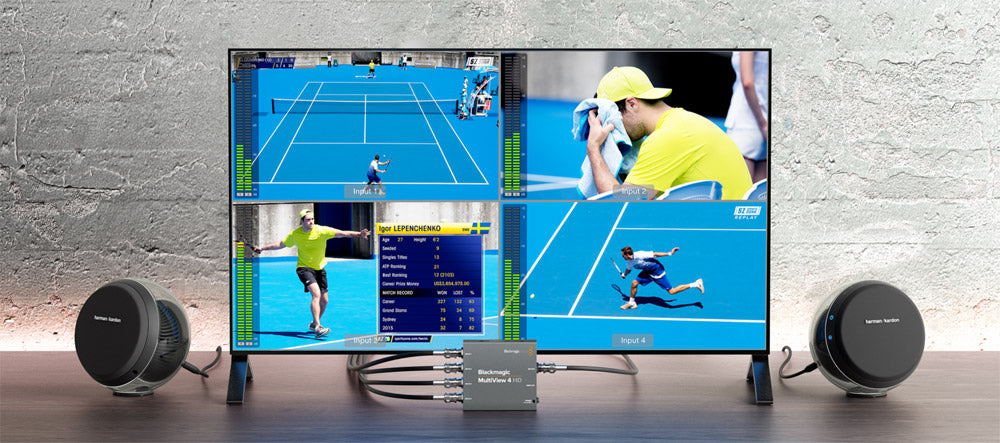

  • Four SDI inputs output to one SDI and one HDMI multiview
  • Automatic signal detection, SDI output re-clocking
  • Monitor any combination of HD or SD formats, and frame rates
  • Display custom labels, audio metering, and more on each view

Technical Specifications:

Input Connectors

4 x BNC (3G-SDI)

Output Connectors

1 x BNC (3G-SDI)

1 x HDMI

Video Standard Compliance

SMPTE 259M/292M/296M/310M/425M-B

ITU -R BT.601/BT.656

Video Format

SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)

DCI 2K

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080PsF: 23.98/24 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

NTSC: 59.94 fps

PAL: 50 fps

Max Sample Rate/Resolution

48 kHz / 24-Bit

OS Compatibility

macOS 10.12

macOS 10.13

Windows 8.1

Windows 10

Power Consumption

6 to 36 VDC (5.5 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Dimensions

4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm

Weight

8.53 oz / 0.24 kg


In the Box:

  • Blackmagic Design MultiView 4 HD
  • 12V Universal Power Supply
  • International Socket Adapters
  • Limited 3-Year Warranty
