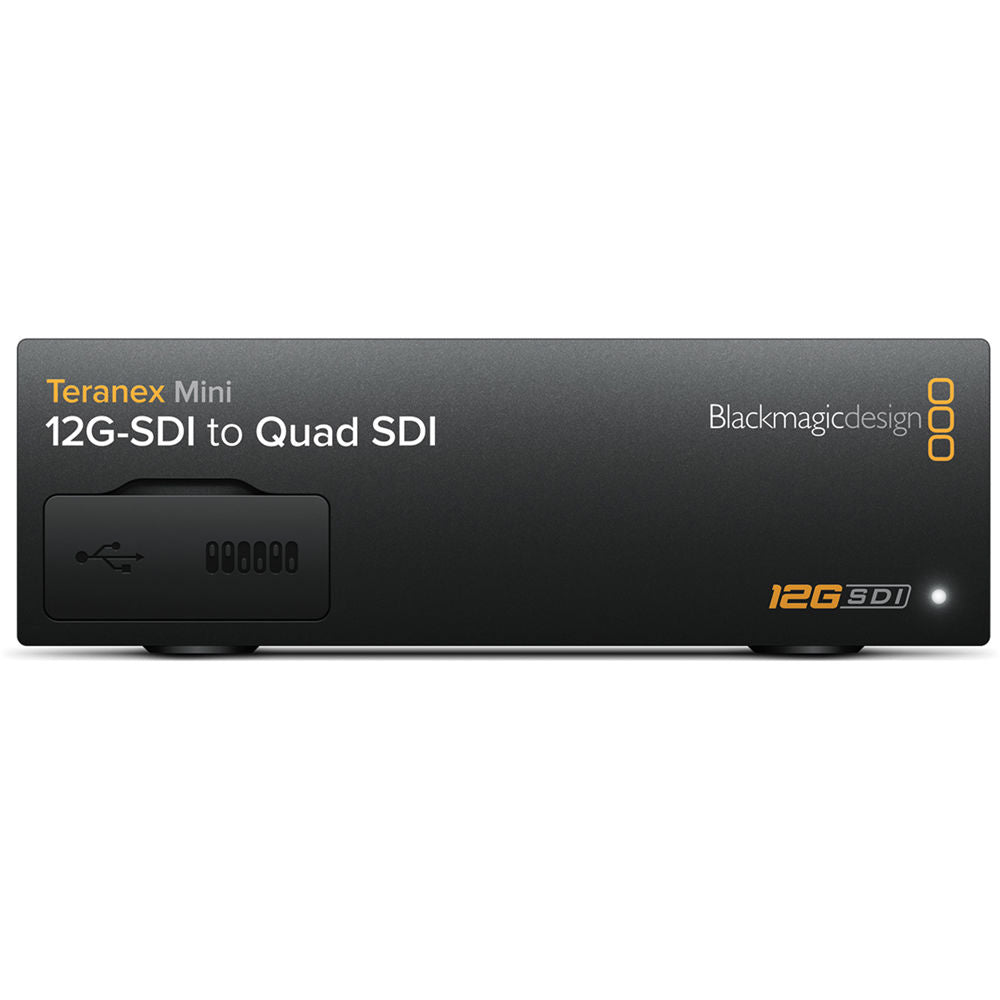

Blackmagic Teranex Mini 12G-SDI to Quad SDI
Key Features:
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates

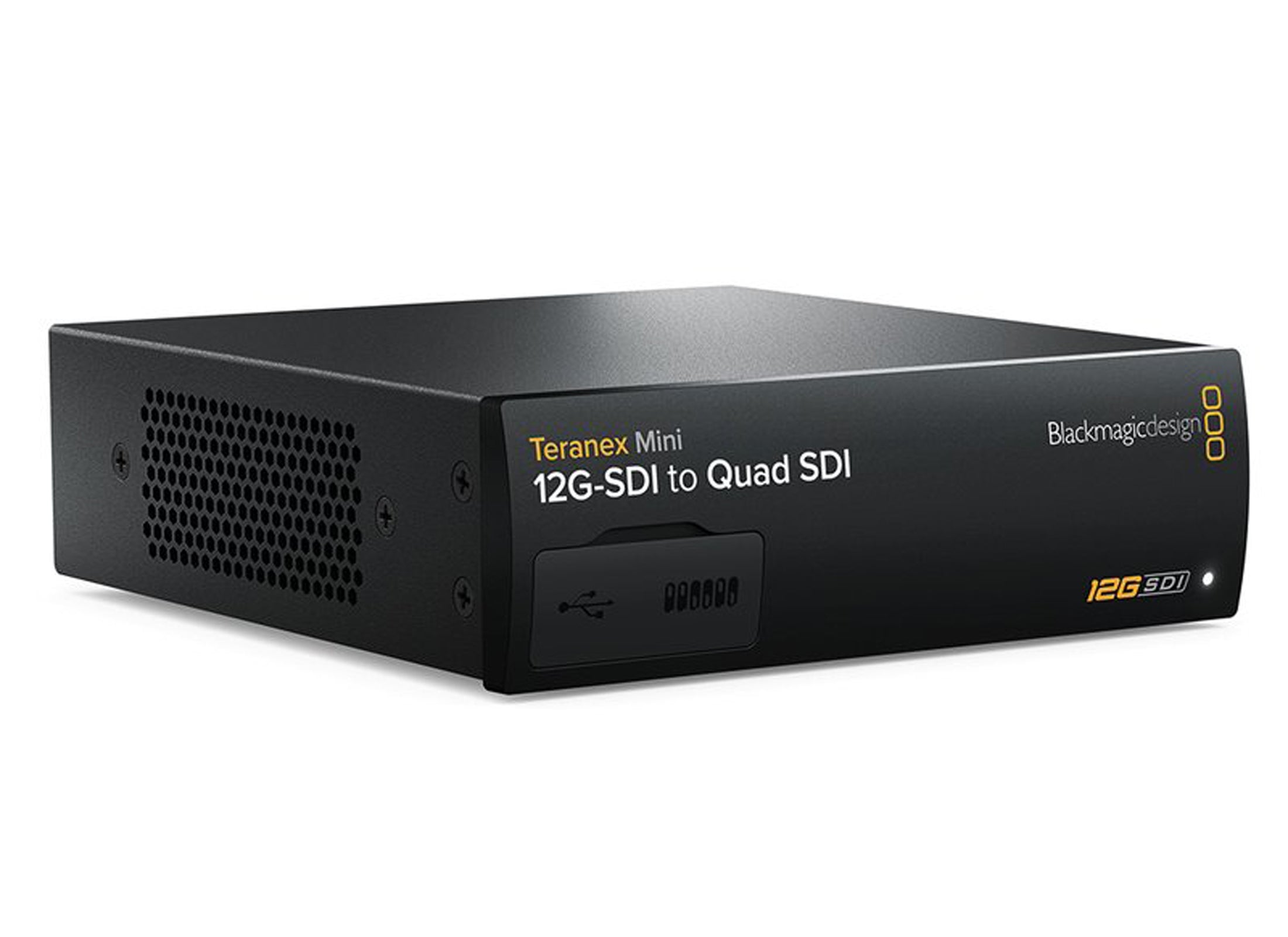

Distribute a high-resoution 12G-SDI source to Quad-Link SDI equipment with the Teranex Mini 12G-SDI to Quad SDI Converter from Blackmagic Design. Housed in a low-profile enclosure, this Teranex Mini Converter seamlessly fits in studio and post-production workflows or anywhere with multiple displays or a video wall design. The unit features one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI distribution outputs that support multirate auto-switching between DCI 4K, UHD 4K, HD, and SD sources and destinations. The unit also supports up to 16 channels of broadcast-quality 24-bit, 48 kHz audio.
Connecting the unit via Ethernet enables you to use the included control software to make adjustments to fit your needs, as well as power the unit via PoE (Power-over-Ethernet). DIP switch controls and a USB configuration port are also available on the front panel.
OS Compatibility
Windows 8.1 and 10
|
Video Input Connectors |
1 x BNC Female |
|
Input Video Format |
SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps |
|
Audio Input Connectors |
None |
|
Embedded Audio Input |
SDI: 16-Channel |
|
Video Output Connectors |

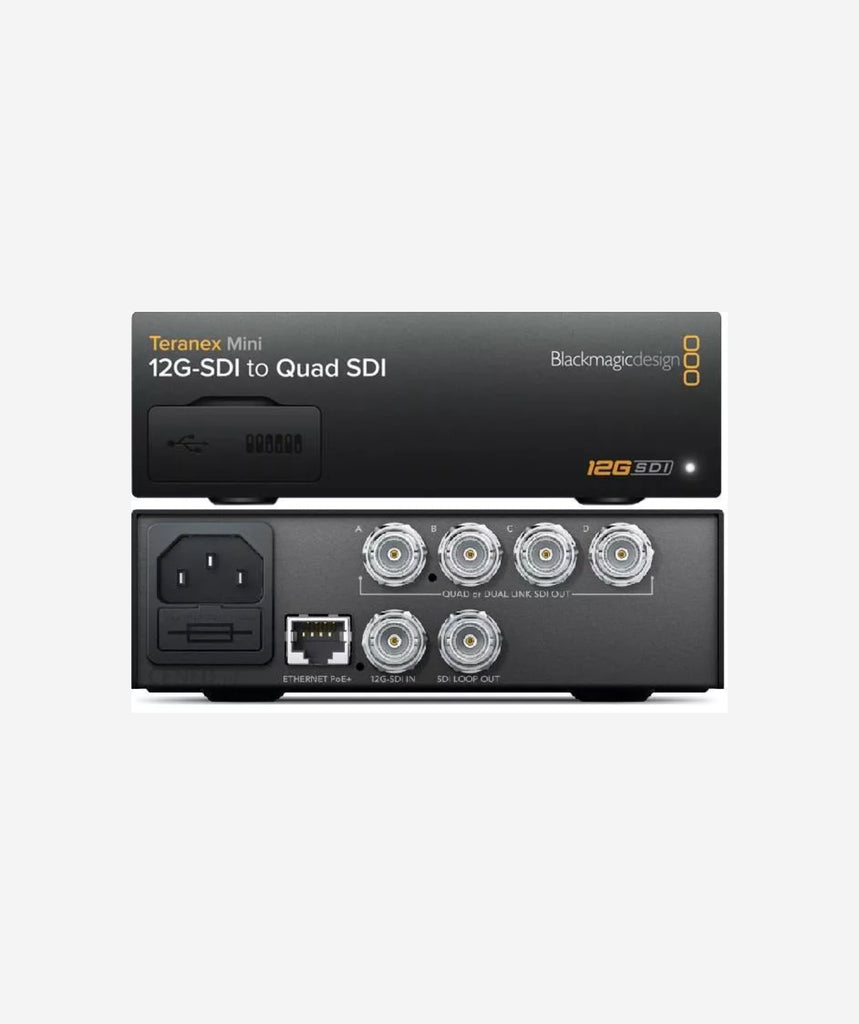

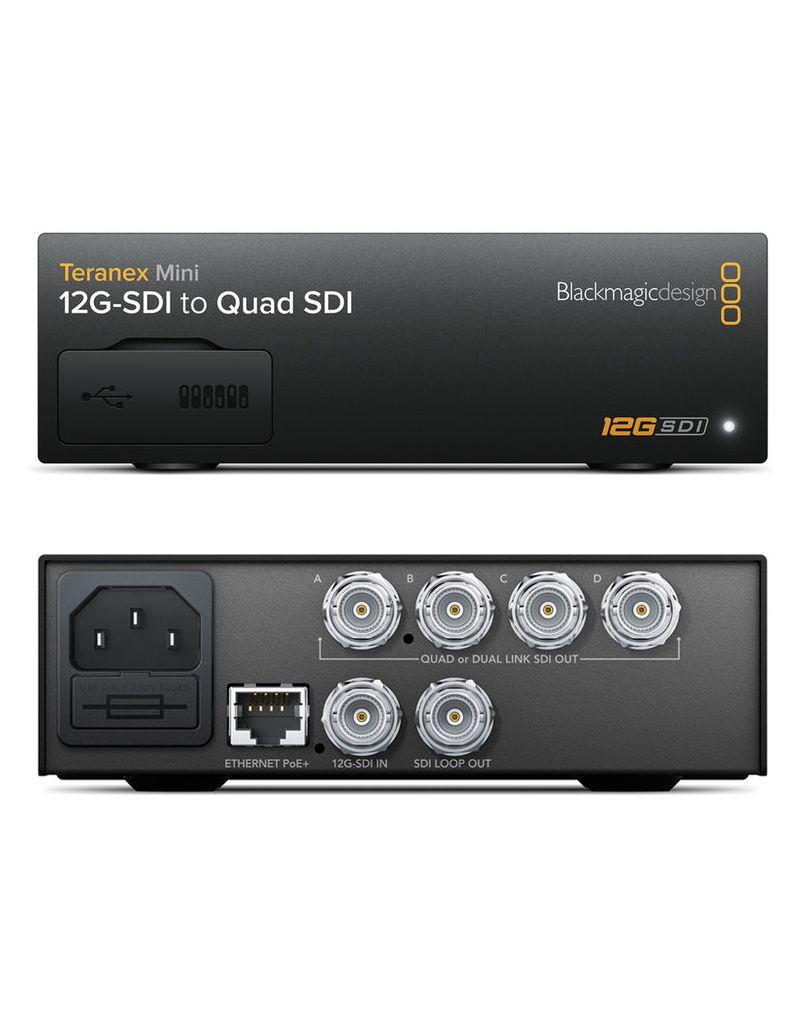

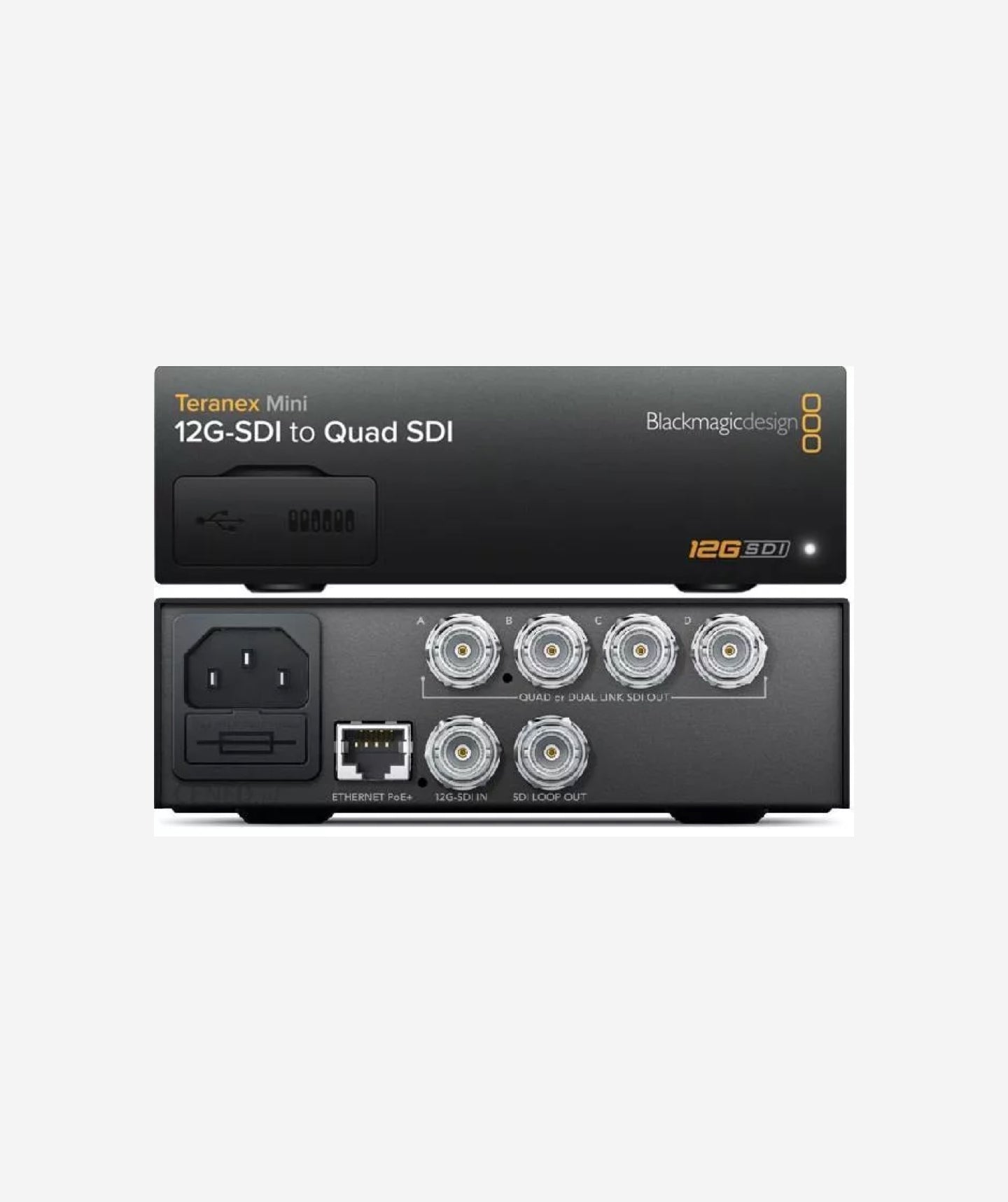

4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x BNC (12G-SDI) Female (Loop Output) |
|
Output Video Format |
SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL (768 x 576): 50 fps NTSC: 59.94 fps |
|
Audio Output Connectors |
None |
|
Embedded Audio Output |
SDI: 16-Channel |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
|
Other I/O |
1 x RJ45 LAN, PoE Input/Output 1 x USB Type-A Firmware Input |
|
Expansion Slots |
None |
|
Power Connector |
1 x IEC C14 Input |
|
PoE Support |
PoE+ 802.3at |
|
Power Consumption |
Device: 90 to 240 VAC (16 W) |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% |
|
Dimensions |
6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
|
Weight |
1.28 lb / 581 g |
|
Warranty Length |
Limited 3-Year Warranty |
In the Box:
- Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
- SD Card with Configuration Software
- Limited 3-Year Warranty
