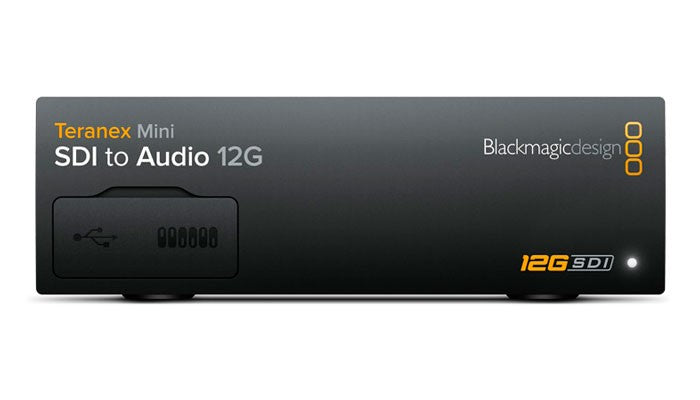

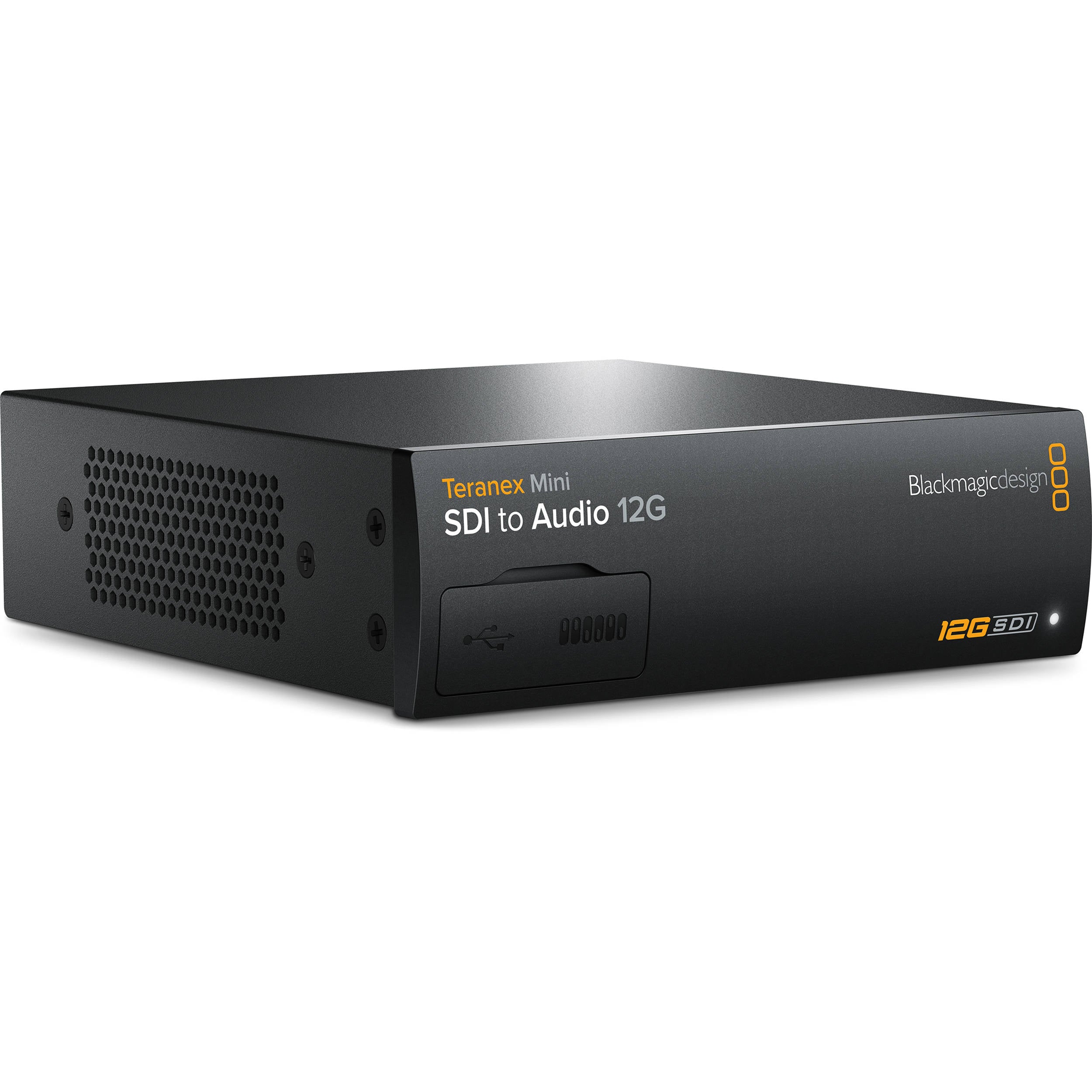

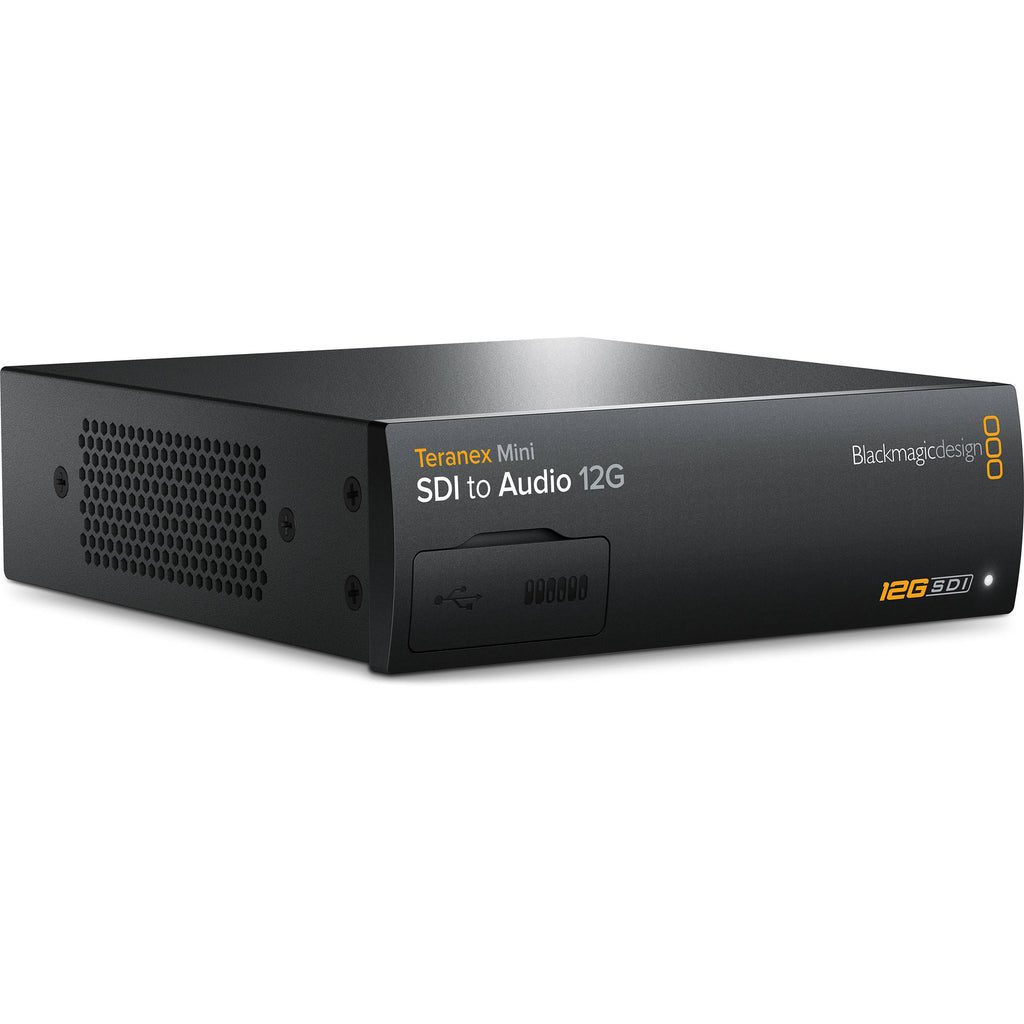

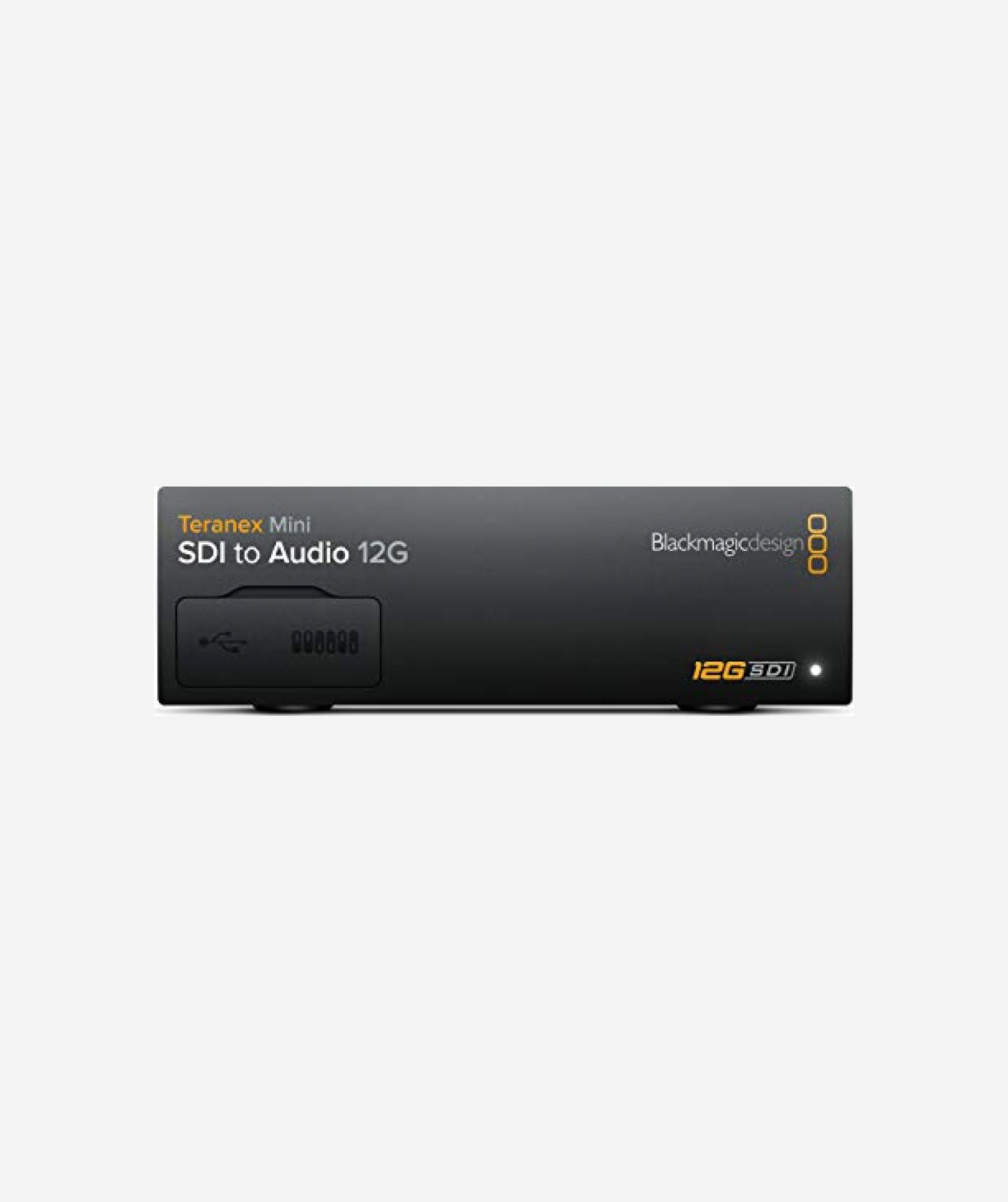

Blackmagic Teranex Mini SDI to Audio 12G

Rs. 50,000.00



Key Features:

  • Advanced High-Data Rate De-Embedder
  • De-Embed Audio from up to 4K SDI Signals
  • Output via XLR, AES/EBU, RCA, or S/PDIF
  • 12G-SDI Input and Output
  • Supports up to Full 4K DCI 4096x2160p
  • XLR Connections Switchable to AES/EBU
  • Ethernet Port for Remote Control or PoE
  • Supports Optional LCD Smart Front Panel
  • Intelligent Thermal Heat Dissipation
  • 3 Units 1U Rack-Mountable in 19" Rack

    Technical Specifications:

    SDI Video Input

    1x 12G-SDI SD/HD/2K/4K auto switching

    SDI Video Output

    1x 12G-SDI output

    Analog Audio Output

    2 channels professional balanced analog audio via XLR connectors

    2 channel unbalanced analog line level via RCA connectors

    Right XLR can be configured for timecode output

    AES/EBU Audio Output

    4 channels professional 110 ohm balanced digital audio via XLR connectors

    Right XLR can be configured for timecode output

    Optical Audio Output

    S/PDIF signal with TOSLINK connector

    Multi Rate Support

    Automatic switching between SD/HD/2K and 4K

    Updates and Configuration

    USB or Ethernet

    Re-Clocking

    Yes

    SD Format Support

    525/29.97 NTSC, 625/25 PAL

    HD Format Support

    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

    2K Format Support

    2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25

    4K Format Support

    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

    SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036

    SDI Video Rates

    SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI

    SDI Video Sampling

    4:2:2 and 4:4:4

    SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit

    SDI Color Precision

    YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K

    SDI Color Space

    REC 601, REC 709

    Software Control

    Mac OS X and Windows software upgrade via USB and Ethernet

    Internal Software Upgrade

    Via included updater application

    Basic Settings Control

    Mini Switches, USB, and Ethernet via free software utility

    Power Supply

    1x built-in international AC power supply with IEC C14 inlet

    IEC power cable required (not included)

    90 - 240 VAC input

    Power Over Ethernet

    Can be powered via 48 VDC using PoE (Power-over-Ethernet)

    Power Consumption

    15 W

    Operational Voltage Range

    90 - 240 VAC

    Operating Temperature

    32 to 104°F (0 to 40°C)

    Storage Temperature

    -4 to 140°F (-20 to 60°C)

    Relative Humidity

    0 to 90% non-condensing

    Dimensions

    W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included)

    Weight

    1.3 lb (0.6 kg)


    In the Box:

    • Blackmagic Design Teranex Mini SDI to Audio 12G Converter
    • Software SD Card
    • Limited 3-Year Warranty
