Key Features:

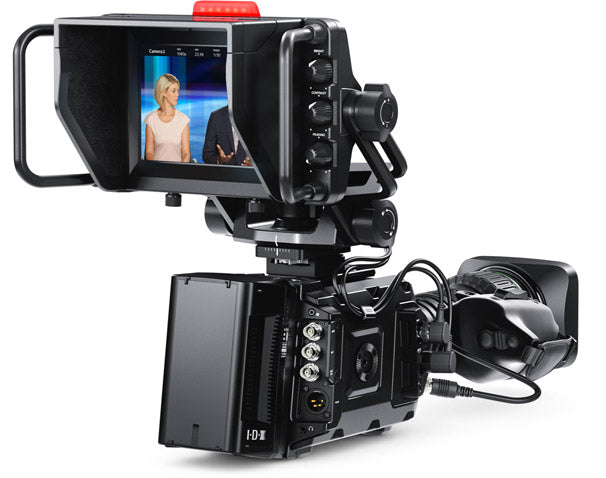

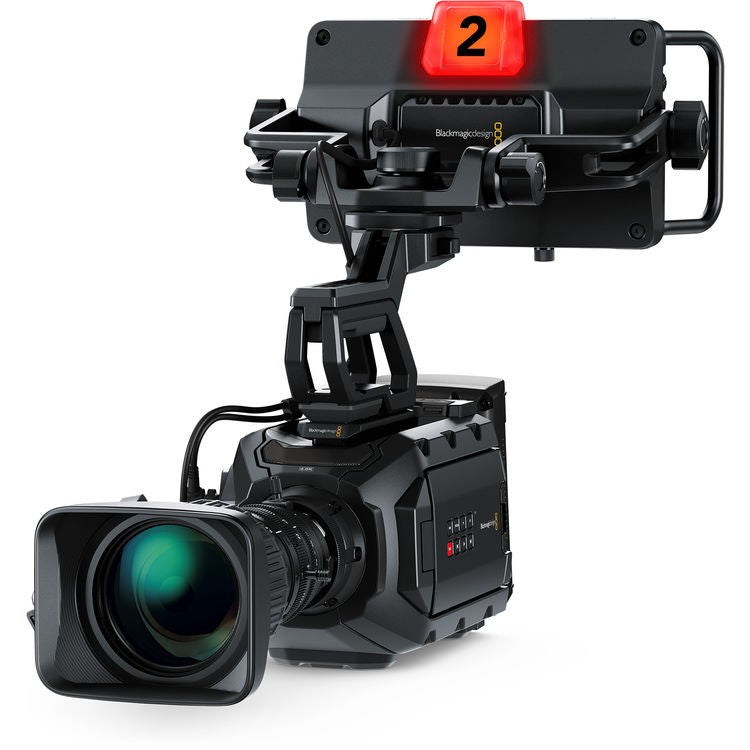

- For URSA Mini Cameras

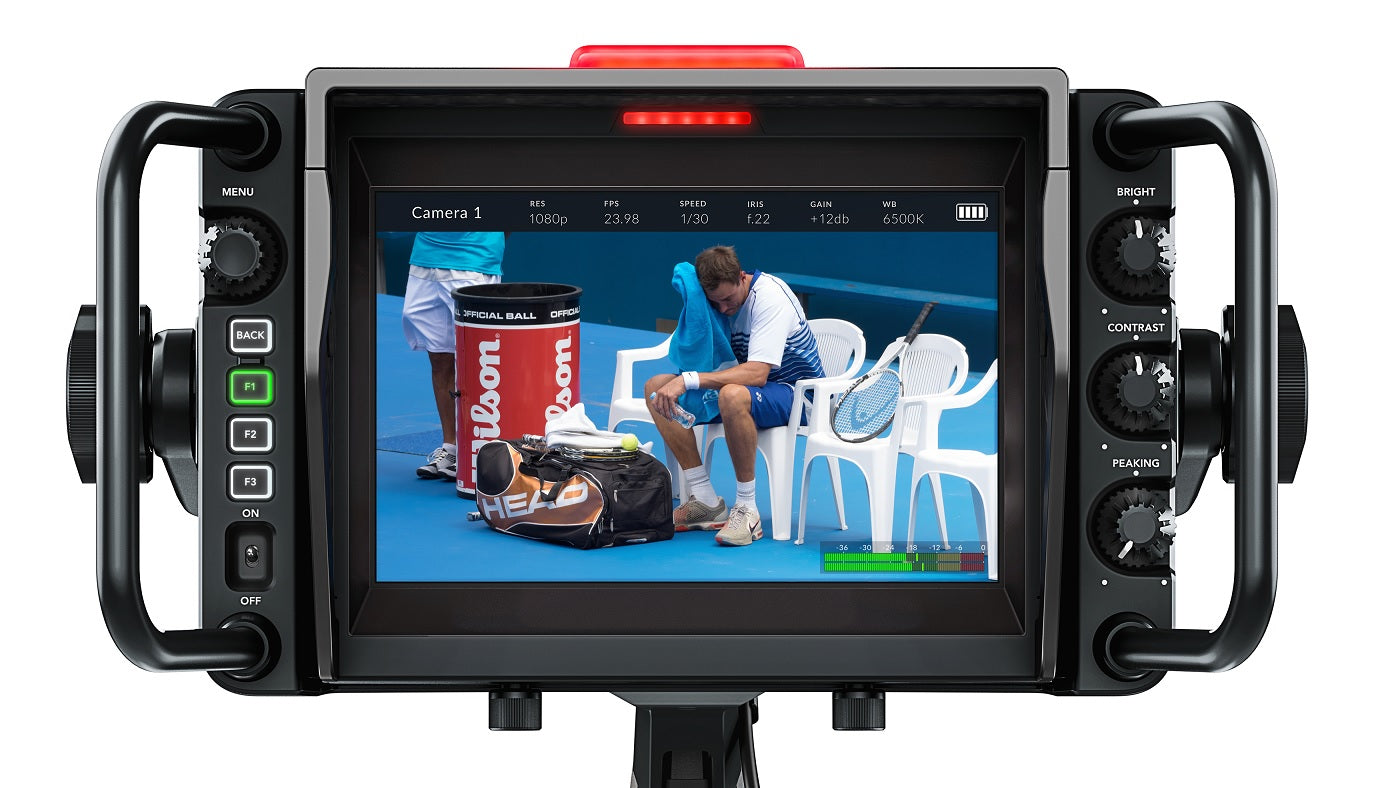

- 7" Screen with Removable Hood

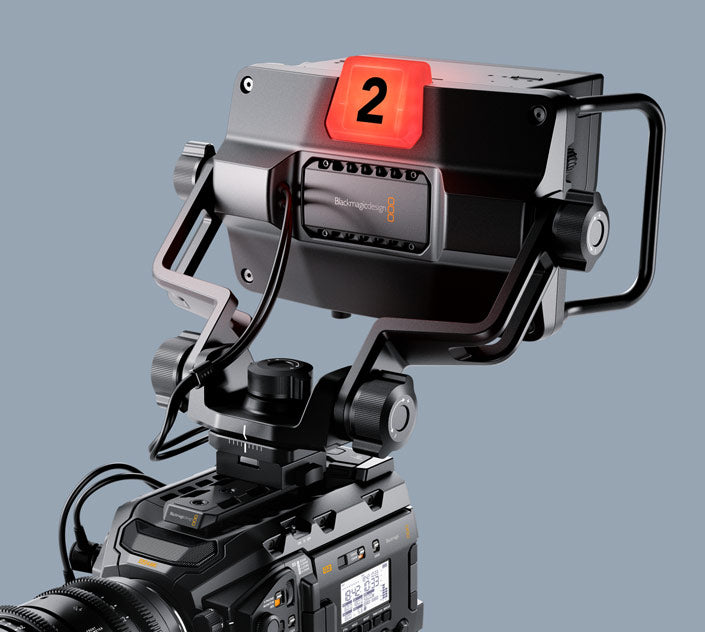

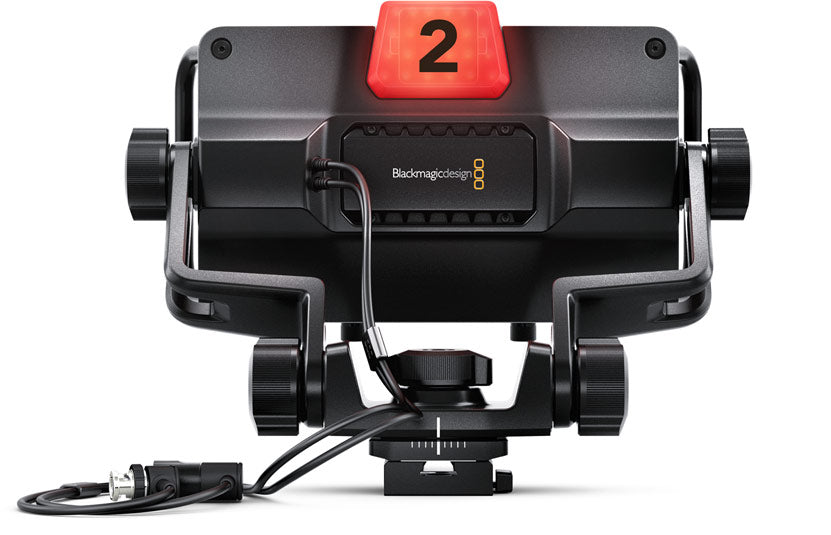

- Tension Adjustable Articulating Mount
- Brightness, Contrast, Peaking Control
- Zoom, Zebra, False Color, Histogram
- Edge Focus Detection, Custom LUTs
- Adjustable Frame Line Overlay

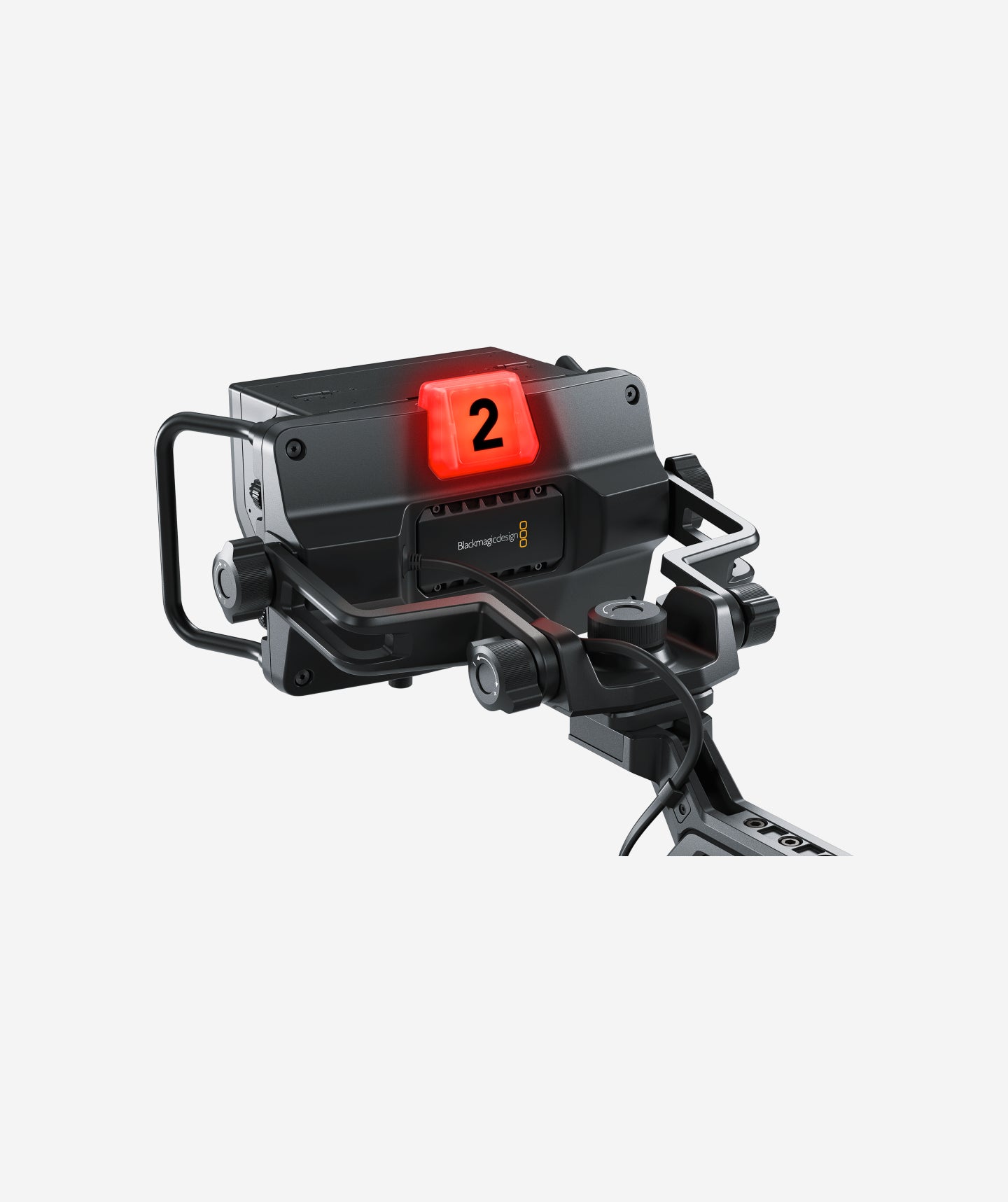

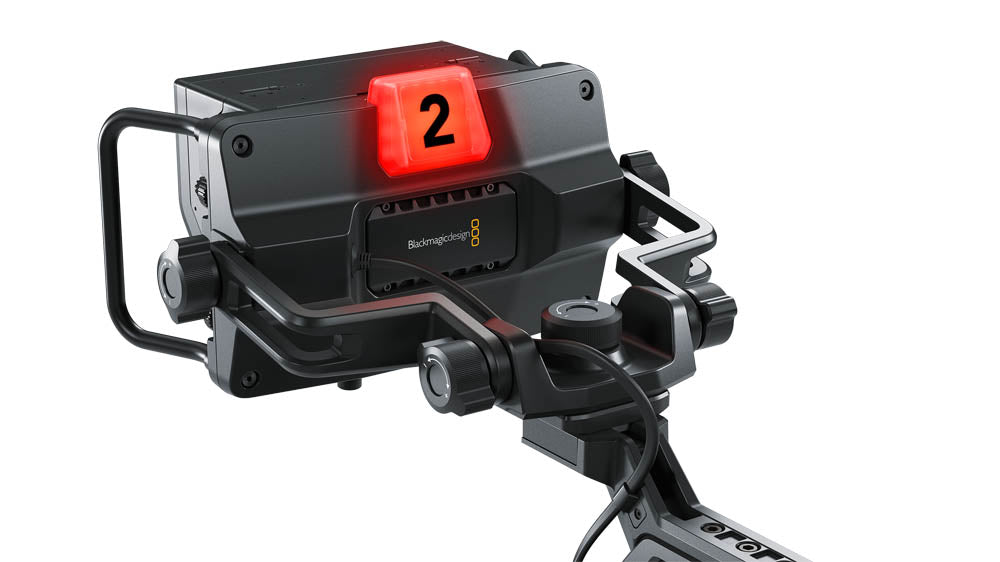

- Audio Meters, Tally
Screen |
Size: 7" Resolution: 1920 x 1200 Type: IPS LCD |
Format Support |
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 |
Color Space |
REC 601 REC 709 REC 2020 |
Color Sampling |
YUV: 4:2:2 RGB: 4:4:4 |
Color Precision |
10-Bit |
Connectors |

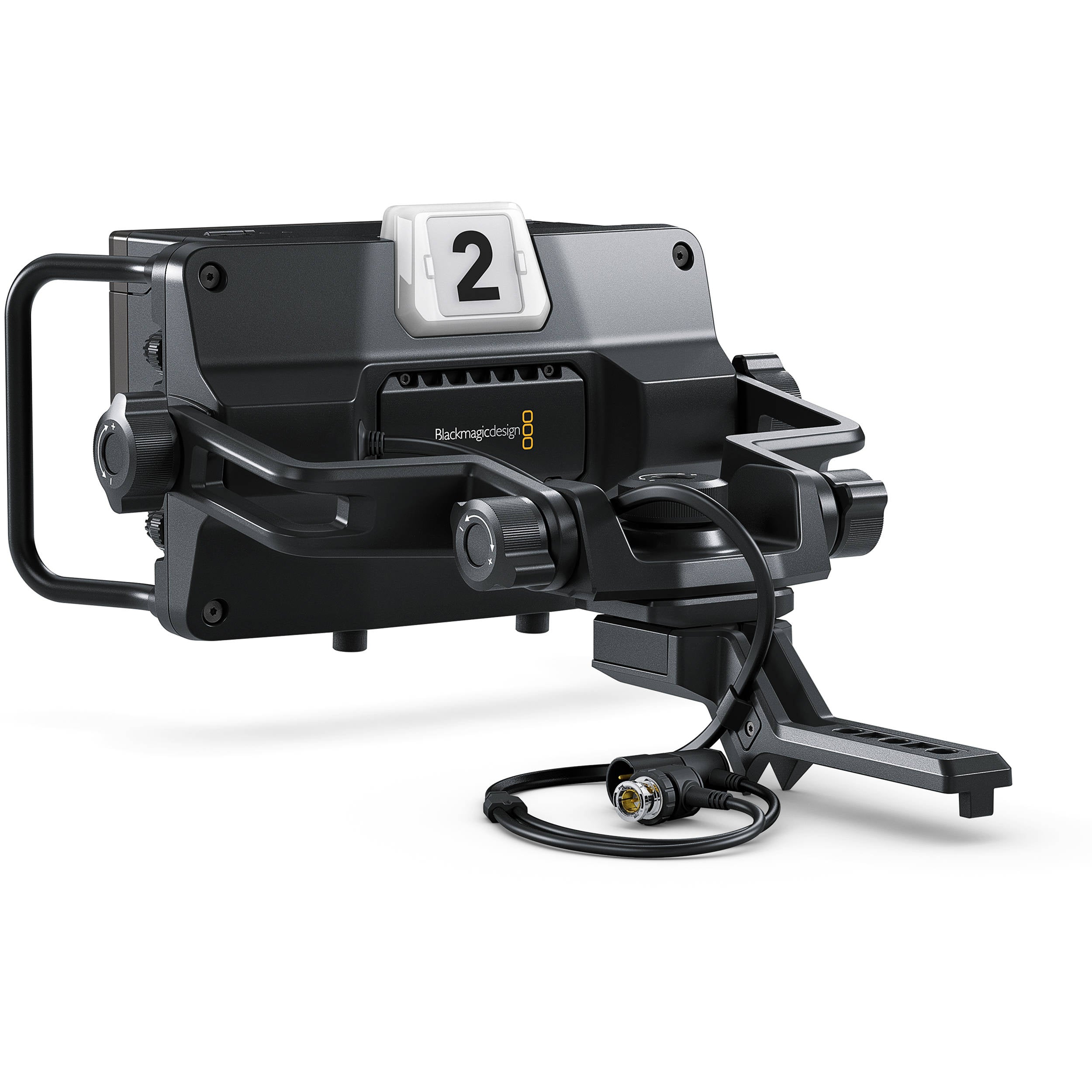

1 x 3G/HD-SDI (BNC), input 1 x 4-Pin XLR, power 1 x USB type C (for initial setup and updates) |
SMPTE Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, and SMPTE 425M 2084 |
Environmental |
Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 140°F / -20 to 60°C Relative Humidity: 0 to 90% Non-condensing |
Dimensions |
11.9 x 13.0" / 30.4 x 33.1 cm |
Weight |
5.9 lb / 2.7 kg |
In the Box:

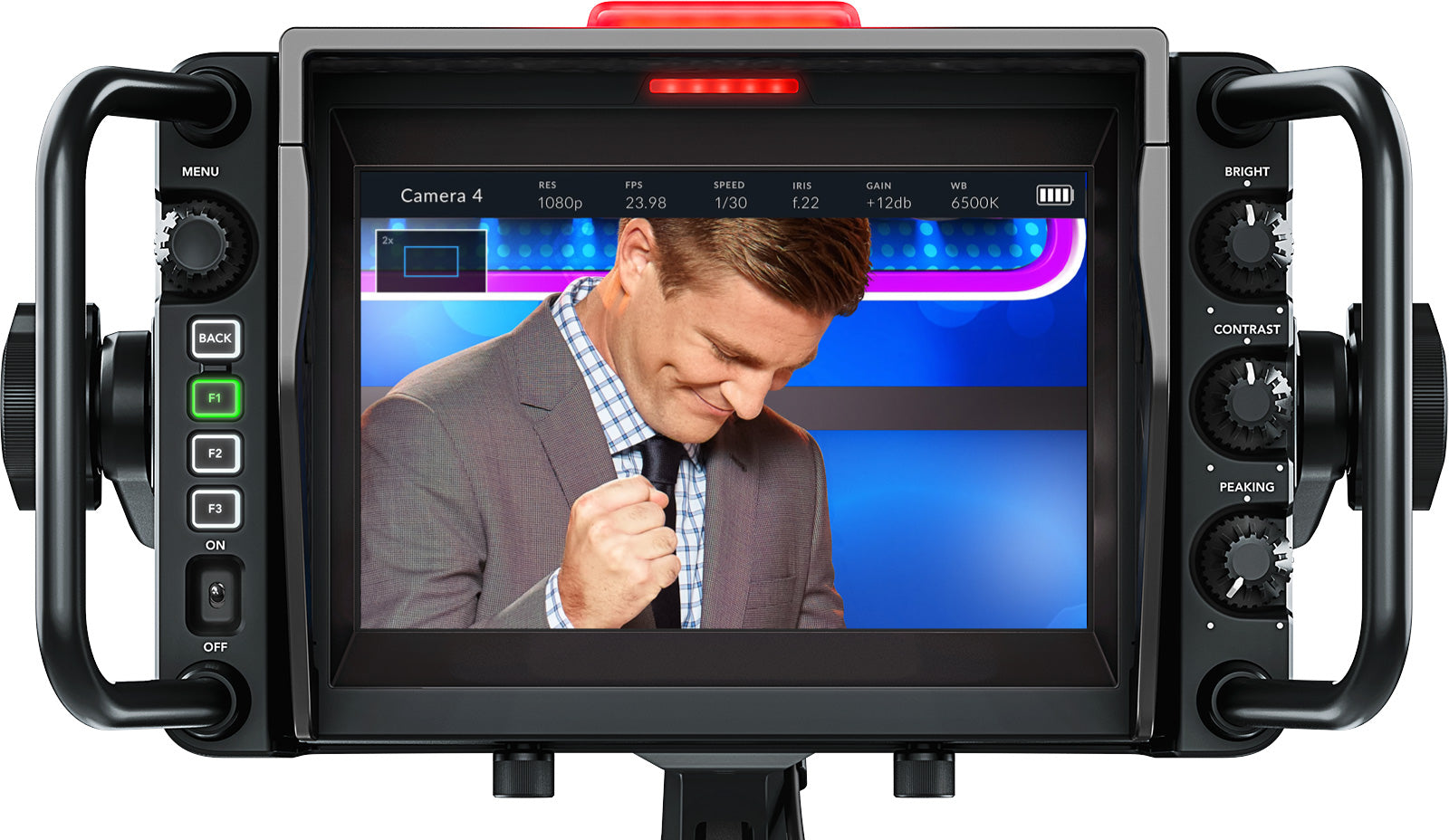

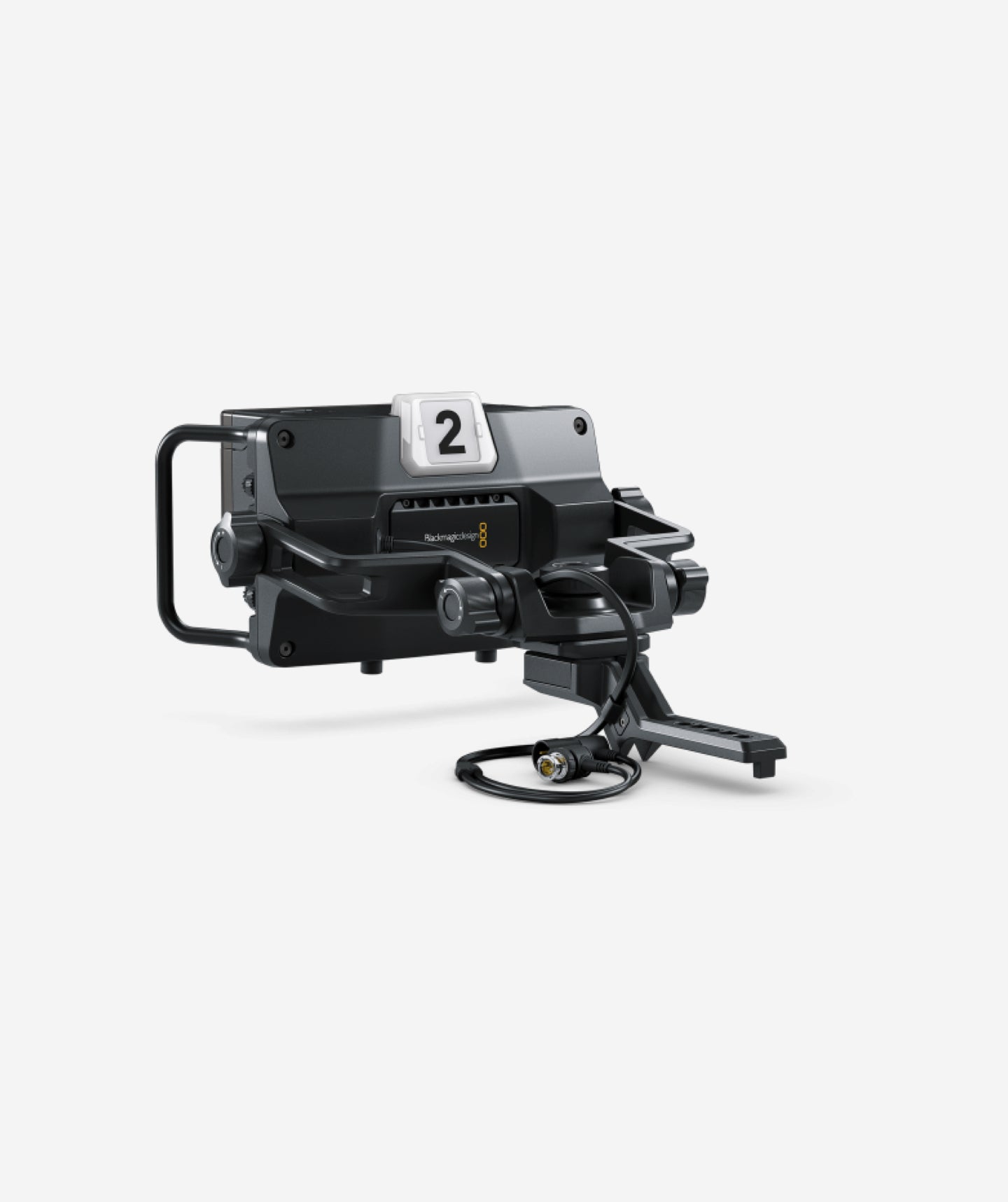

- Blackmagic Design URSA Studio Viewfinder
- Limited 1-Year Warranty
