Sensor type

1.0-type (13.2 mm x 8.8 mm) Exmor® RS CMOS sensor, aspect ratio 3:2

Number of Pixels (Effective)

Approx. 20.1 MP

Lens type

ZEISS® Vario-Sonnar® T* Lens, 10 elements in 9 groups (9 aspheric elements including AA lens)

F-number (Maximum Aperture)

F1.8(W)-2.8(T)

ND-filter

Auto / On (3 steps) / Off

Focal length

f=8.8-25.7 mm

ANGLE OF VIEW (35 MM FORMAT EQUIVALENT)

84 deg-34 deg (f = 24-70 mm)

Focus Range (From the Front of the Lens)

iAuto: AF (W: Approx. 5 cm (1.97) to Infinity, T: Approx. 30 cm (11.8) to Infinity) / Programme Auto: AF (W: Approx. 5 cm (1.97) to Infinity, T: Approx.30 cm (11.8) to Infinity)

Optical zoom

2.9x

Clear Image Zoom (Still Image)

20 M Approx. 5.8x/10 M Approx. 8.2x/5.0 M Approx. 11x/VGA Approx. 44x

Clear Image Zoom (Movie)

4K: 4.35x,HD: Approx. 5.8x

Digital Zoom (Still Image)

20 M Approx. 11x/10 M Approx.16x/5.0 M Approx.23x/VGA Approx. 44x

Digital Zoom (Movie)

Digital Zoom Approx. 11x

Screen type

7.5 cm (3.0 type) (4:3)/1,228,800 dots/Xtra Fine/TFT LCD

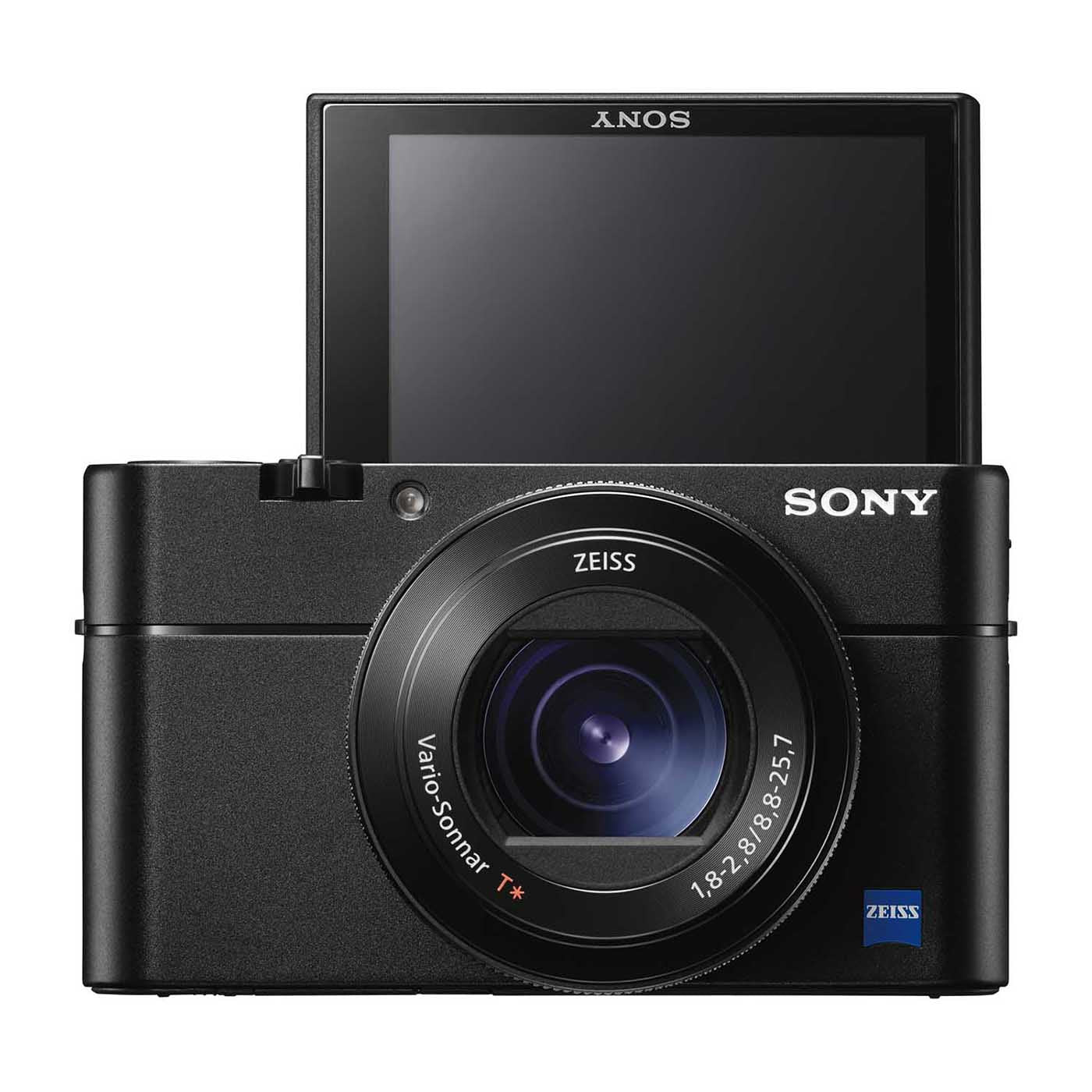

Adjustable Angle

Up by approx. 180 degrees, down by approx. 45 degrees

Display Selector (Finder/Lcd)

Auto/EVF (Manual)/Monitor (Manual)

MF Assist Magnification

5.3x, 10.7x

Viewfinder Screen Type/Number of Dots

0.39-type electronic viewfinder (OLED), 2,359,296 dots

Field Coverage

100%

Magnification

Approx. 0.59x with 50 mm lens at infinity, -1m-1(diopter) (35 mm equiv.)

Eye Point

Approx. 20 mm from the eyepiece, 19.2 mm from the eyepiece frame at -1m-1(diopter) (CIPA standard)

Dioptre Adjustment

-4.0 to +3.0 m-1

Brightness Control

Auto, Manual (5 steps)

Image Processing Engine

Yes (BIONZ X®)

STEADYSHOT (STILL IMAGE)

Optical

STEADYSHOT (MOVIE)

Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type)

Focus Type

Fast Hybrid AF(phase-detection AF/contrast-detection AF)

Focus Mode

Single-shot AF, Automatic AF, Continuous AF, DMF, Manual Focus

Focus Area

Wide (315 points (phase-detection AF), 25 points [contrast-detection AF]), Zone, Centre, Flexible Spot [S/M/L], Expanded Flexible Spot, Lock on AF [Wide/Zone/Centre/Flexible Spot [S/M/L]]/Expanded Flexible Spot)

LOCK ON AF

Yes

Light Metering Mode

Multi Pattern, Center Weighted, Spot, Entire Screen Avg, Highlight

Exposure Compensation

+/- 3.0 EV, 1/3 EV step

ISO Sensitivity (Still Image)(Recommended Exposure Index)

Auto (ISO125-12800, selectable with upper/lower limit),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100), Multi-Frame NR: Auto (ISO125-12800), 200/400/800/1600/3200/6400/12800/25600

ISO Sensitivity (Movie)

Auto: (ISO125Level-ISO12800Level, selectable with upper/lower limit), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800

Minimum Illumination (Movie)

Auto: 1.2 lux (Shutter Speed 1/30")

White Balance Modes

Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Flash, Underwater Auto, C.Temp./Filter, Custom

WB Micro Adjustment

Yes

Shutter Speed

iAuto (10.2 cm [4] - 1/2000)/Programme Auto (76.2 cm [30] - 1/2000)/Manual (Bulb, 76.2 cm [30] - 1/2000)/Aperture Priority (76.2 cm [30] - 1/2000)/Shutter Priority (76.2 cm [30] - 1/2000)

Electronic Shutter

iAuto (10.2 cm - 1/32000)/Program Auto (76.2 cm - 1/32000)/Manual (76.2 cm - 1/32000)/Aperture Priority (76.2 cm - 1/32000)/Shutter Priority (76.2 cm - 1/32000)

Aperture

iAuto (F1.8/F11[W]) / Programme Auto (F1.8/F11 [W]) / Manual (F1.8/F11 [W]) / Shutter Priority (F1.8/F11 [W]) / Aperture Priority (F1.8/F11 [W])

Image Control

Contrast, Saturation, Sharpness, Creative Style, Colour Space (sRGB/Adobe RGB), Quality (RAW/RAW&JPEG Extra fine, Fine, Standard)/JPEG (Extra fine, Fine, Standard)

Noise Reduction

Long exposure NR: On/Off, available of shutter speeds longer than 1/3 sec., high ISO NR: Normal/Low/Off, Multi Frame NR: Auto, ISO200-25600

Dynamic Range Functions

Off, Dynamic Range Optimiser (Auto/Level 1-5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0-6.0 EV, 1.0 EV step))

Shooting Mode

AUTO (Intelligent Auto/Superior Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR (Memory Recall) [body 3 sets/memory card 4 sets], Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure),HFR Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection

Scene Selection

Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Fireworks, High Sensitivity

Continuous Shooting Speed (maximum) (with max. recording pixels)

Continuous Shooting Hi: approx. 24fps, Continuous Shooting Mid: approx. 10fps, Continuous Shooting Low: approx. 3.5fps

Self-Timer

10 s / 5 s / 2 s / 3 or 5 consecutive shots with 10 s. 5 s or 2 s delay selectable / Bracketing shots with 10 s 5 s or 2 s delay selectable

Drive Modes

Single, Continuous shooting (Hi/Mid/Lo), Self-timer, Self-timer (cont.), Cont.-bracketing, Single-bracketing, White balance bracketing, DRO bracketing

Panorama (Shooting)

Sweep Panorama

Picture Effect

[Still Image]:Toy camera, Pop Colour, Posterisation, Retro Photo, Soft High-key, Partial Colour, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolour, Illustration; [Movie]:Toy camera, Pop Colour, Posterisation, Retro Photo, Soft High-key, Partial Colour, High Contrast Mono.

Creative Style

Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box

Picture Profile

off/PP1-PP7 (Black Level, Gamma [Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2], Black Gamma, Knee, Colour Mode, Saturation, Colour Level, Colour Phase, Colour Depth, Detail, Copy, Reset)

Number of Recognised Scenes

Still Image: Superior Auto: 44 / iAuto: 33, Movie: 44

Flash Mode

Auto / Flash On / Slow Synchro / Rear Sync / Flash Off

Flash type

Built-in, manual pop-up

AF Illuminator

Auto/Off

Bracketing

Yes

Flash Range

ISO Auto: Approx. 0.4 m to 10.2 m (1.31 ft. to 33.46 ft.) (W) / Approx. 0.4 m to 6.5 m (1.31 ft. to 21.33 ft.) (T), ISO12800: up to Approx. 20.4 m (66.93 ft.) (W) / Approx. 13.0 m (42.65 ft.) (T)

Compatible Recording Media

Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO Duo(High Speed), Memory Stick PROHG Duo, Memory Stick Micro, Memory Stick Micro (Mark2), SD Memory Card, SDHC Memory Card(UHS-I), SDXC Memory Card(UHS-I), microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card

Recording Format

[Still Image]: JPEG(DCF Ver.2.0,Exif Ver.2.31,MPF Baseline compliant), RAW (Sony ARW 2.3 format); [Movie]: XAVC S, AVCHD format Ver.2.0 compatible

Recording Format (Movie Audio)

XAVC S:LPCM 2ch, AVCHD:Dolby Digital(AC-3) 2ch (Dolby Digital Stereo Creator)

Colour Space (Still)

sRGB, Adobe® RGB

DCF/DPOF

DCF/DPOF/EXIF/MPF

Still Image Number of recorded pixels (Image Size)

3:2 mode: 20M (5,472 × 3,648) / 10M (3,888 × 2,592) / 5M (2,736 × 1,824),4:3 mode:18M (4,864 × 3,648) / 10M (3,648 × 2,736) / 5M (2,592 × 1,944) / VGA,16:9 mode:17M (5,472 × 3,080) / 7.5M (3,648 × 2,056) / 4.2M (2,720 × 1,528),1:1 mode:13M (3,648 × 3,648) / 6.5M (2,544 × 2,544) / 3.7M (1,920 × 1,920), Sweep Panorama: Wide (12,416 × 1,856/5,536 × 2,160), Standard (8,192 × 1,856/3,872 × 2,160)

Movie Recording Mode (NTSC)

NTSC/PAL Selector: [NTSC] AVCHD: 24 M FX (1,920x1,080/60i)/17 M FH (1,920x1,080/60i), XAVC S 4K: 30p 100 M (3,840x2,160/30p)/30p 60 M (3,840x2,160/30p)/24p 100 M (3,840x2,160/24p)/24p 60 M (3,840x2,160/24p), XAVC S HD: 60p 50 M (1,920x1,080/60p)/60p 25 M (1,920x1,080/60p)/30p 50 M (1,920x1,080/30p)/30p 16 M (1,920x1,080/30p)/24p 50 M (1,920x1,080/24p)/120p 100 M (1,920x1,080/120p)/120p 60 M (1,920x1,080/120p)

Movie Recording Mode

NTSC/PAL Selector: [PAL] mode AVCHD: 24 M FX (1,920x1,080/50i)/17 M FH (1,920x1,080/50i), XAVC S 4K: 25p 100 M (3,840x2,160/25p)/25p 60 M (3,840x2,160/25p), XAVC S HD:50p 50 M (1,920x1,080/50p)/50p 25 M (1,920x1,080/50p)/25p 50 M (1,920x1,080/25p)/25p 16 M (1,920x1,080/25p)/100p 100 M (1,920x1,080/100p)/100p 60 M (1,920x1,080/100p),

HFR

(Recording) NTSC/PAL Selector: [PAL] mode XAVC S HD: 50p 50M (1920x1080/250fps), 50p 50M (1920x1080/500fps), 50p 50M (1920x1080/1000fps)/25p 50M (1920x1080/250fps), 25p 50M (1920x1080/500fps), 25p 50M (1920x1080/1000fps) NTSC/PAL Selector: [NTSC] mode XAVC S HD:60p 50 M (1,920x1,080/240fps), 60p 50 M (1,920x1,080/480fps), 60p 50 M (1,920x1,080/960fps)/30p 50 M (1,920x1,080/240fps), 30p 50 M (1,920x1,080/480fps), 30p 50 M (1,920x1,080/960fps)/24p 50 M (1,920x1,080/240fps), 24p 50 M (1,920x1,080/480fps), 24p 50 M (1,920x1,080/960fps) (Sensor Readout Number of effective pixels) Quality Priority: 240fps/250fps (1,824x1,026), 480fps/500fps (1,824x616), 960fps/1000fps (1,244x420)/Shoot Time Priority: 240fps/250fps (1,824x616), 480fps/500fps (1,292x436), 960fps/1000fps (912x308)

Still Image Number of recorded pixels (Image Size) during Movie

16:9 mode: 17M (5472×3080)/7.5M (3648×2056)/4.2M (2720×1528)

Proxy Recording

Yes (1280 x 720 [Approx. 9 Mbps])

Input and output terminals

Multi/Micro USB Terminal, Hi-Speed USB (USB2.0), Micro HDMI

NFC

NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing

WI-FI

Yes (IEEE802.11b/g/n [2.4 GHz band])

Power Source

DC3.6 V (supplied battery) / DC5.0 V (supplied AC Adaptor)

Battery System

Rechargeable Battery Pack NP-BX1

Power Consumption (Camera Mode)

Approx. 2.6 W with LCD monitor and approx. 3.0 W with viewfinder (CIPA standard)

USB Charge/USB Power Supply

Yes (Shooting, Playback)

BATTERY LIFE(STILL IMAGES)(CIPA)

Monitor: Approx. 220 / Approx. 110 min, ViewFinder: Approx. 210/Approx. 105 min.

BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA)

Monitor: Approx. 35 min, ViewFinder: Approx. 35 min.

BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA)

Monitor: Approx. 65 min, ViewFinder: Approx. 65 min.

Playmemories Camera Apps

-

Shooting Functions

Eye AF, Face Detection, Face Registration, Still Image Recording (during movie recording), Smile shutter, Grid Line, Quick Navi, Digital Level Gauge (pitch and roll), WB Bracket, DRO Bracketing, MF Assist, Peaking, Zebra, Marker Display, Micref Level, Step Zoom/Quick Zoom, Self-portrait timer, TC/UB, Photographer Name & Copyright, ISO Auto Minimum Shutter Speed, PC Remote Control, Gamma Disp. Assist, [Mov]AF Track Sensitivity, [Mov]AF Drive Speed, Set File Name, My Menu

Playback Functions

BRAVIA Sync(Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete, Protect, Motion Shot Video, Beauty Effect, Photo Capture, Rating, Automatic Image Rotation

TRILUMINOS Color

Yes

4K image output

Yes

Operating Temprature

0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.

Print

Exif Print, PRINT Image Matching (PIM3)

DIMENSIONS (W X H X D) (APPROX.)

101.6x58.1x41.0 mm(4 × 2 3/8 × 1 5/8)

WEIGHT (CIPA COMPLIANT)

Approx. 299g (10.5oz.) (Battery and Memory Stick Duo are included)/Approx. 272g (9.6oz.) (Body Only)

WHAT'S IN THE BOX

Rechargeable Battery Pack NP-BX1, AC Adaptor, Micro USB cable, Wrist Strap, Strap Adapter, Instruction Manual
