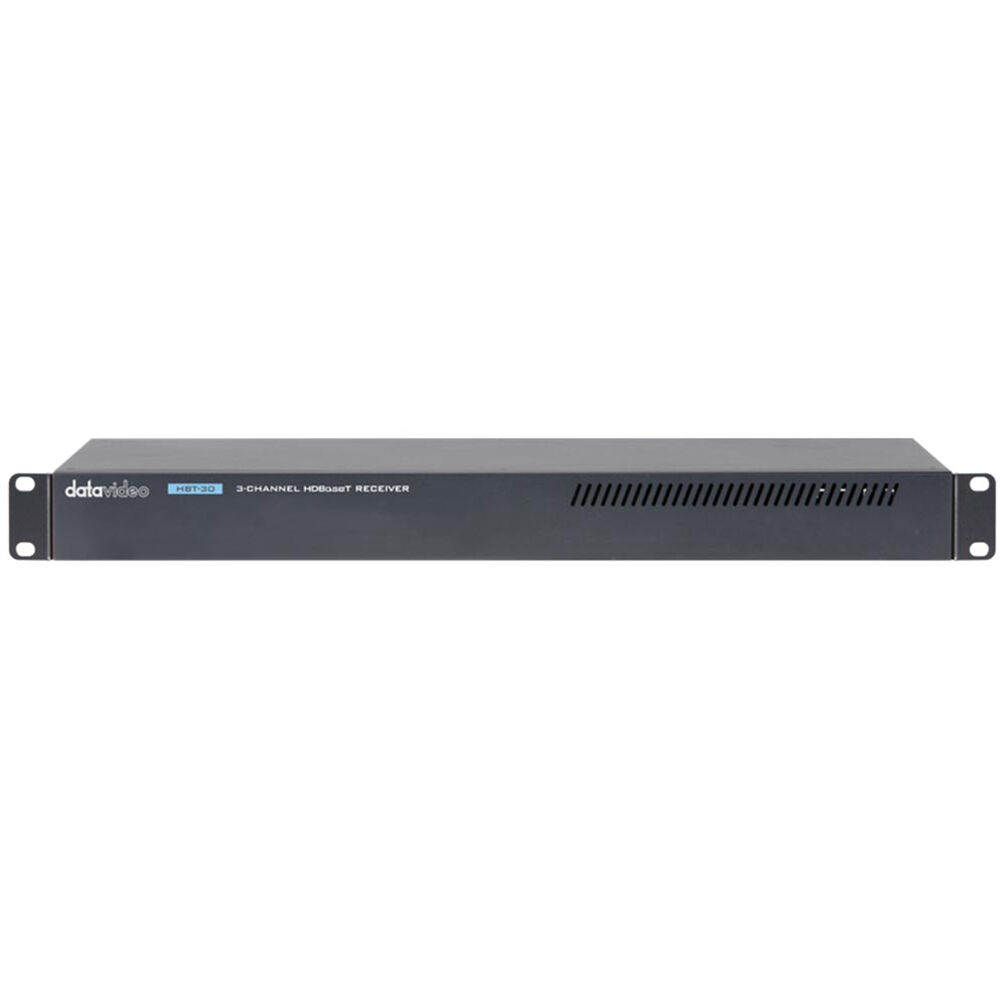

This 3-Channel DataVideo Long-Range HDBaseT Receiver supplies power, Ultra HD 4K50/60 video, and camera control to up to 3 devices up to 328' distance. It simultaneously outputs HDMI, RS-422, and IP control signals.
Inputs
3 x RJ45 (HDBaseT)
Outputs
3 x HDMI (HDMI 2.0)
Other I/O
3 x RJ45 RS-232, RS-422
1 x RJ45 HDBaseT
HDCP Support
None
EDID Support
Max Transmission Distance
1080p, UHD 4K at 60 Hz:
328.1' / 100 m
Video Format
RJ45 Input
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps
Supported Cable Types
Cat 6a
Power Connector
1 x XLR 4-Pin (56 VDC) Input
PoE Support
Yes
Operating Temperature
32 to 104°F / 0 to 40°C
In the Box:
