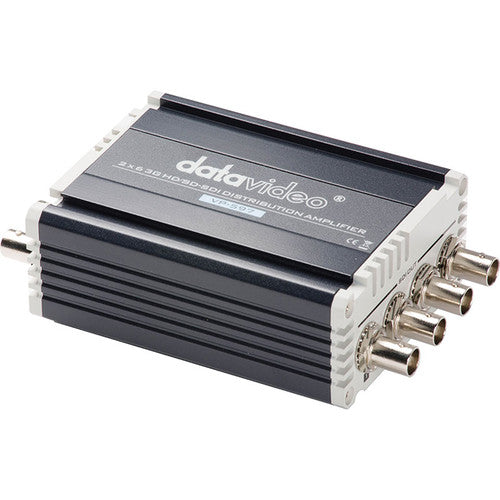

Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control. It supports 3G/HD/SD SDI video with embedded audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface. VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.
Key Features:
- 2 x 3G/HD/SD-SDI inputs
- 6 x 3G/HD/SD-SDI distribution outputs with re-clock
- Supports embedded audio SDI
- Two input video sources can be controlled by A/B switch or GPI remote
Technical Specifications:
|
Type |
3G/HD/SD-SDI distribution amplifier |
|
Features |
Reclocking |
|
Low Voltage Power |
DC 12 V |
|
Terminals |
(2) x 3G HD-SDI input - BNC (6) x 3G-SDI output - BNC (1) x USB - 4 pin mini-USB Type B (1) x GPI |
In the Box:
- Datavideo 3G/HD/SD-SDI 2x6 Distribution Amplifier
